ERJ ANSI Code

ERJ ANSI is a PMR13 lamp with a G3.9 base operating at 45 watts and 12.8 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ERJ lamps.

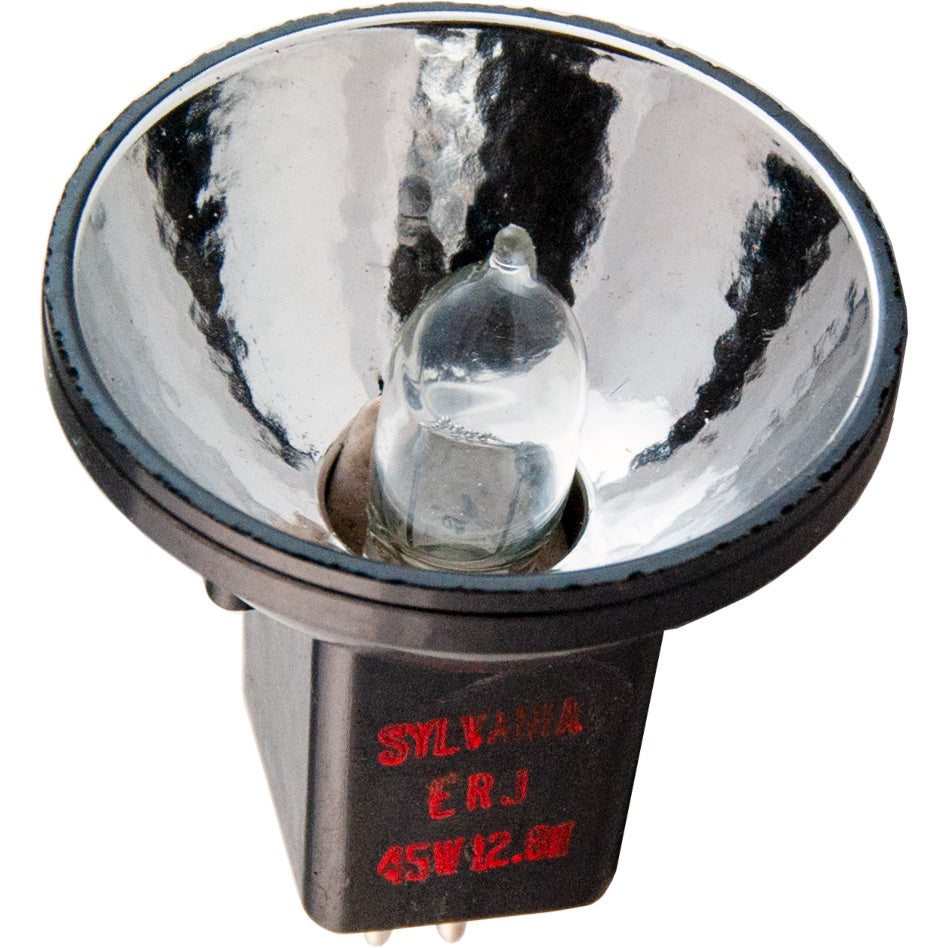

ERJ Photograph

ERJ

Electrical Specifications

Amps3.52
Volts12.8
Watts45

Photometrics

Color Temperature3400

Physical Characteristics

BaseG3.9
Bulb ShapePMR13
FilamentCC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionAny
Life Hours15

General Information
Lamp CodeERJ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EikoERJ (WIKO)
Microlites12.8-045-23J
Canimpex12.8-045-23J

Equipment Used In

BrandModelType
Fairchild Camera & Instrument Synchromatic 410 Projector
Fairchild Camera & Instrument Synchromatic 210 Projector

ERJ may also be listed as:
45-P-12VOLT SYLVANIA45-P-12VOLT-ERJ SYLVANIAEQ-ERJ ELECTROQUIPERJ ANSI
ERJ ASAERJ BULB-DIRECTERJ INTERLIGHTERJ MICROLAMP
ERJ SYLVANIAERJ-12.8V ANSIERJ-12.8V ASAERJ-12.8V-45W
ERJ-12.8V-45W ANSIERJ-12.8V-45W ASAERJ-12.8V-45W-2PIN-T3-CC6-CLEAR-3400K-15H-ANY-2MOL-H-MINIATURE-PROJECTOR-PHENOLIC-DIFFUSE-REFLECTORERJ-12.8V/12.8V/45W/G3.9/PMR13 ANSI
ERJ-12.8VOLT ANSIERJ-12.8VOLT ASAERJ/12.8V/45W/G3.9/PMR13 ANSIG4-12.8V-45W-SPECIAL-REFLECTOR-PROJECTION ELECTROQUIP
H/12.8V/45W/G3.9/PMR13/CC6/15HH/12.8V/45W/G3.9/PMR13/CC6/15H/ERJPROJECTION/12.8V/45W/G4 ELECTROQUIPSPQ45PMR13G3.9CC6-12.8V
SPQ45PMR13G3.9CC612.8V-ERJSPQ45PMR13G3.9CL-12.8VSPQ45PMR13G3.9CL12.8V-ERJ
