ESC ANSI Code
ESC ANSI is a MR16D lamp with a GX5.3 base operating at 200 watts and 24 volts. It has a color temperature of 3400 Kelvin. It has a Open front finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ESC lamps.
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 24 |
| Watts | 200 |
Photometrics | |
| Color Temperature | 3400 |
|---|---|
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | MR16D |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | ESC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |

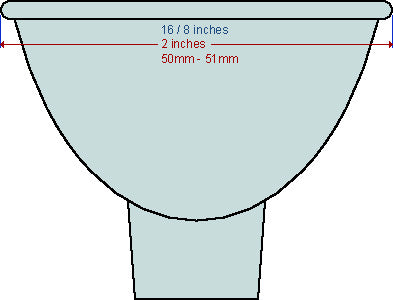

MR16D Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | 02740 | ESC | |
| Microlites | 24-200-23CR | ||
| Canimpex | 24-200-23CR | ||
Equipment Used In | ||
| Brand | Model | Type |
| Elmo | GS-1200 | |
ESC may also be listed as: | |||
| 02740 WIKO | 131220 NARVA | 131220 ORBITEC | 131220-H63169-GX5.3-50X45-24V-ESC-200W ORBITEC |
| 131220/24V/200W ORBITEC | 131220/24V/200W/GX5.3 ORBITEC | 3129302740 WIKO | 63169 |
| BW-ESC | ESC ANSI | ESC ASA | ESC GENERAL-ELECTRIC |
| ESC INTERLIGHT | ESC KONDO | ESC ORBITEC | ESC USHIO |
| ESC WIKO | ESC-24V ANSI | ESC-24V ASA | ESC-24V-200W |
| ESC-24V-200W ANSI | ESC-24V-200W ASA | ESC-24V-200W-GX5.3-MR-16-CC-6-OPEN-FRONT-3400K-25H-BDTH-1-3/4MOL-Q-8MM-MOVIE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST.-1-1/4 | ESC-24V-200W-GX5.3-MR16-CC6-OPEN-FRONT-3400K-25H-BDTH-1-3/4MOL-Q-8MM-MOVIE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST-1-1/4 |
| ESC-24V/24V/200W/GX5.3/MR16D ANSI | ESC-24VOLT ANSI | ESC-24VOLT ASA | ESC/24V/200W/GX5.3 ANSI |
| ESC/24V/200W/GX5.3/MR16D ANSI | GX5.3-50X45-24V-200W-ESC/H63169/131220 ORBITEC | GX5.3-50X45-24V-ESC-200W ORBITEC | GX5.3-50X45MM-24V-200W-ESC/H63169/131220 ORBITEC |
| H-63169 ORBITEC | H/24V/200W/GX5.3/MR16D/32MMWD/25H | H/24V/200W/GX5.3/MR16D/CC8/25H | H/24V/200W/GX5.3/MR16D/CC8/25H/ESC |
| H63169-GX5.3-50X45-24V-ESC-200W ORBITEC | H63169/24V/200W ORBITEC | H63169/24V/200W/GX5.3 ORBITEC | Q/200W/MR16/GX5.3/24V/131220 NARVA |
| SPQ200MR16DGX5.3AX24V-ESC | SPQ200MR16DGX5.3CC824V-ESC | ||
