ESP ANSI Code

ESP ANSI is a T4 lamp with a BA15d base operating at 150 watts and 120 volts. It has a color temperature of 2850 Kelvin. It has a Clear finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ESP lamps.

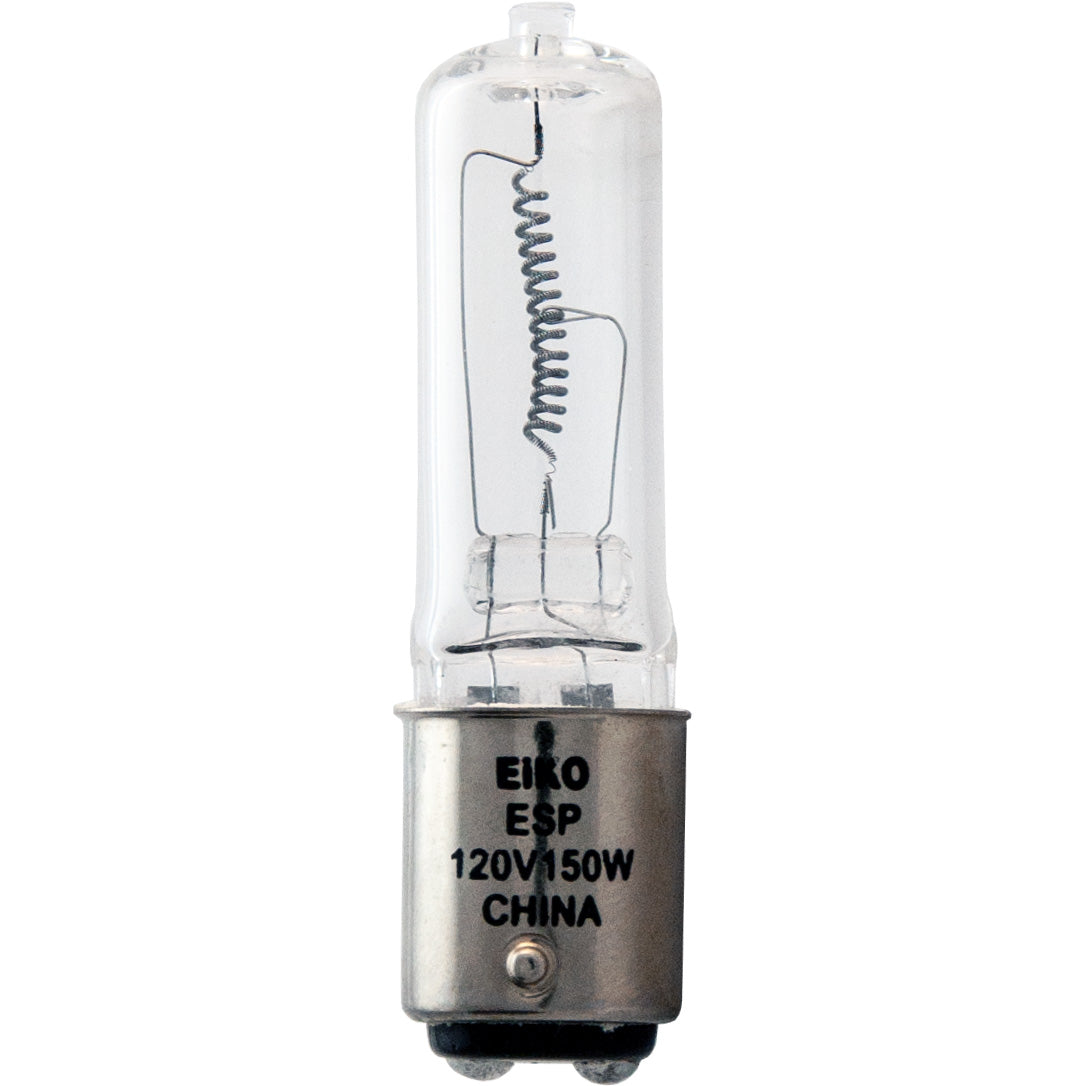

ESP Photograph

ESP

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Candlepower190
Color Temperature2850
Light Center Length (LCL)1 3/8
Lumens2800

Physical Characteristics

BaseBA15d
Bulb ShapeT4
FilamentCC-2V
FinishClear
Max Overall Length (MOL)2 7/16

Operating Characteristics

Burn PositionAny
Life Hours1000

General Information
Lamp CodeESP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-2V Filament

CC-2V
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Getinge Castle/MDT49455
General Electric44384Q150CL/DC/2V
Osram Sylvania58742150Q/CL/DC/1 (ESP)
Sunlite70163ESP
Ushio1000362ESP, JCV120V-150WGB2
Grainger1C314
Microlites120-150-03P
Canimpex120-150-03P

Equipment Used In

BrandModelType
AMSCO P84079-003
ARRI ARRI Junior 150 Fresnel
Dietzen 4330 Microfilm
Dietzen 4331 Microfilm
Dietzen 4332 Microfilm
L&E Micro Fill Stage / Studio
L&E 3 Fresnel Stage / Studio
McPherson 412-313
Micro Scan CDR-1000
Microfilm Enterprises ME-E16/24
Microfilm Enterprises ME-R16/24
Microfilm Enterprises ME-R35/24
Microfilm Products 1000 Motorized Reader
Microfilm Products 1500 Editor-Loader
Microfilm Products 1600 Editor-Loader
Microfilm Products 2000 Motorized Reader
Microfilm Products 3000 Motorized Reader
