ESY ANSI Code

ESY ANSI is a T4 lamp with a G6.35 base operating at 150 watts and 100 volts. It has a color temperature of 3075 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ESY lamps.

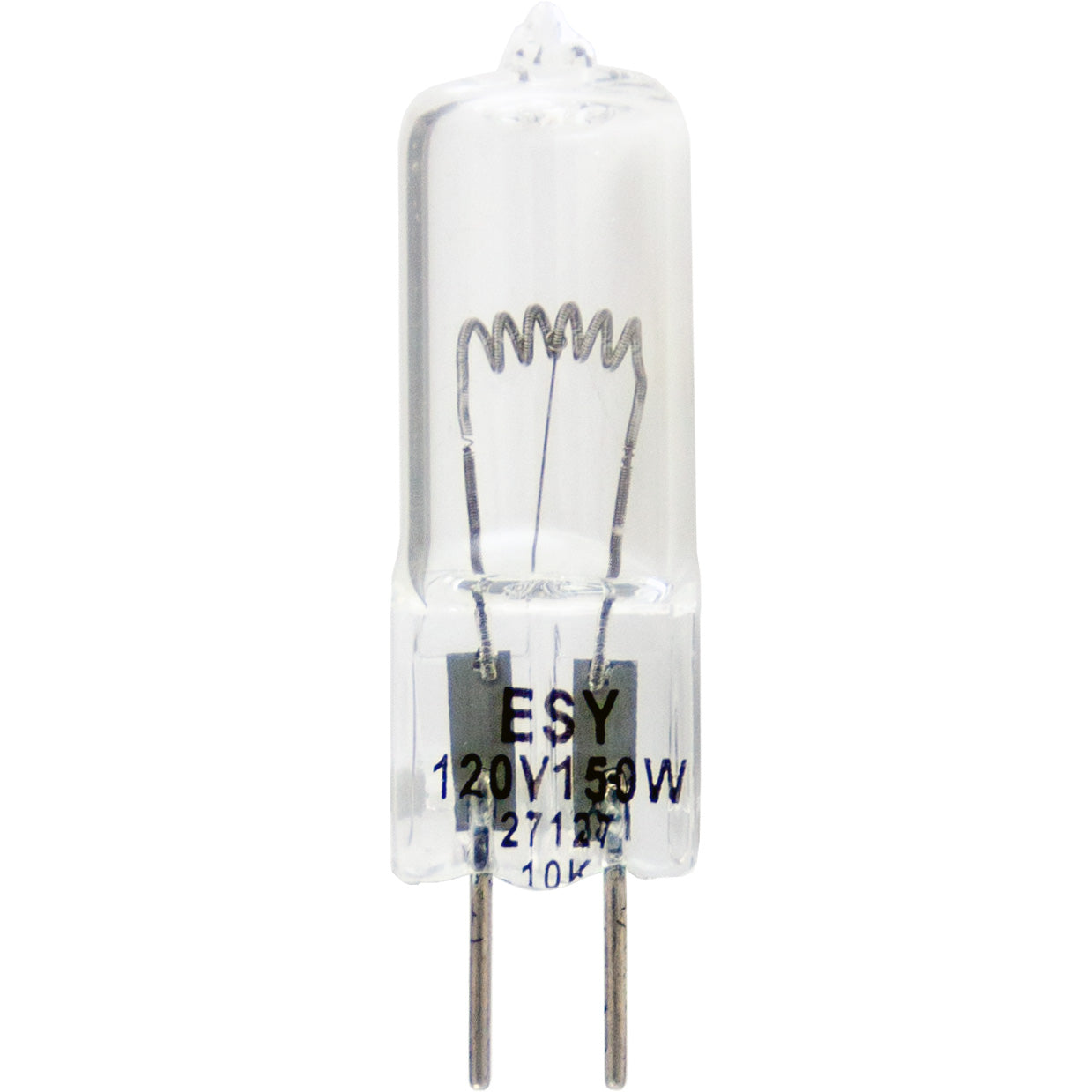

ESY Photograph

ESY

Electrical Specifications

Amps1.25
Volts100
Watts150

Photometrics

Candlepower260
Color Temperature3075
Light Center Length (LCL)1 1/4
Lumens3300

Physical Characteristics

BaseG6.35
Bulb ShapeT4
FilamentCC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionBDTH
Life Hours200

General Information
Lamp CodeESY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G6.35 Base

G6.35

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Aluma-LiteRL-150
AMBICOV-0151
Amcam InternationalESY
ArkonESY
Bulbrite761100ESY
Combined Products Corp. (CPC)LUX JCD120V150WBT
HanelESY
Optex ArgusESY
Philips239657ESY
Photoco/AztecESY
RokunarRVL150B
Sakar (Cam Products)A-150
SimaESY
Smith-Victor401925ESY
Sunlite70162ESY
Unik150W
UniphotoESY
Unomat150W
Ushio1000371ESY, JCD100V-150WB
Rexim, LLCRSE-58
Microlites100-150-24
Microlites120-150-24
Canimpex100-150-24
Canimpex120-150-24

Equipment Used In

BrandModelType
AMBICO V-0155
AMBICO V-0170
AMBICO V-0177
AMBICO V-0180
AMBICO V-0185
AMBICO V-0188
AMBICO V-0804
AMBICO V-1000
AMBICO V-1500 (AC)
AMBICO V-8500
Aluma-Lite VLA-100
Aluma-Lite VLA-200
Aluma-Lite VLA-500SC
Aluma-Lite VLA-AC/DC
Aluma-Lite VLA-AC150
Amcam International PRINZ 380-110 (AC)
Amcam International PRINZ 380-97 (AC)
Arkon AR100AC
Arkon AR100AC-DC
Combined Products Corp. (CPC) LUX XL-2000 (AC)
Combined Products Corp. (CPC) LUX XL-2000 (DC)
Envision Imaging Tech Polaris Intra Oral
Fuji Optical Visionplus
Hanel PRINZ 380-110 (AC)
Hanel PRINZ 380-97 (AC)
New Image Dental View
Optex Argus VA-0150
Optex Argus VA-0150 (AC)
Optex Argus VS-150
Optex Argus VS-160 (AC)
Photoco/Aztec AZVL1
Photoco/Aztec AZVL2 (AC)
Rokunar RVL100
Rokunar RVL150
Sakar (Cam Products) V-1500 (AC)
Sakar (Cam Products) V-3500 (AC)
Sima SCLA (AC)
Sima SLAD-2 (AC)
Smith-Victor M150
Smith-Victor Q150
Smith-Victor QCL150
Unik AC/DC
Unik RV150 AUTO
Unik RV-150 AC
Uniphoto SDVL-120/122 (AC)
Unomat 750
Unomat 775
Unomat LMP
Unomat LX-600
Unomat LX-800LP

ESY may also be listed as:
02780 EIKO02780 UPC02780 WIKO031293027801 EIKO
048777124291 UPC048777158524 UPC1000371 USHIO1000893 USHIO
120V-150W-G6.35 USHIO130231 ORBITEC130231-H168500-GX635-13X50-100V-150W ORBITEC130231/100V/150W ORBITEC
130231/100V/150W/GX6.35 ORBITEC150W-120V-G6.35 USHIO23965-73034 BULB-DIRECT
3034 EFOS3034/100V/150W EFOS3034/100VOLT/150WATT EFOS3129302780 WIKO
401071/SVESY SMITH-VICTOR401072/SVESY SMITH-VICTOR401073/SVESY SMITH-VICTOR401145/SVESY SMITH-VICTOR
401147/SVESY SMITH-VICTOR401925 SMITH-VICTOR761100 BULBRITE9247-948-30900 PHILIPS
942007BW-ESYBW-JCD120V-150WBCQL-10/SVESY SMITH-VICTOR
CQL-12/SVESY SMITH-VICTORCQL-8/SVESY SMITH-VICTORESY ANSIESY ASA
ESY BULB-DIRECTESY BULBRITEESY EIKOESY INTERLIGHT
ESY LAMPTECHESY PHILIPSESY SYLVANIAESY USHIO
ESY WESTINGHOUSEESY WIKOESY-100V ANSIESY-100V ASA
ESY-100V-150WESY-100V-150W ANSIESY-100V-150W ASAESY-100V-150W-G6.35 USHIO
ESY-100V-150W-G6.35-T4-CC6-CLEAR-3300L-3075K-200H-BDTH-2MOL-1-1/4LCL-Q-SLIDE-PROJECTORESY-100V/100V/150W/G6.35 ANSIESY-100VOLT ANSIESY-100VOLT ASA
ESY-100VOLT INTERLIGHTESY-120 VOLT ANSIESY-120 VOLT ASAESY-120V ANSI
ESY-120V ASAESY-120V-150W ANSIESY-120V-150W ASAESY-120V/120V/150W/G6.35 ANSI
ESY-150W-100V-G6.35 USHIOESY-JCD ANSIESY-JCD ASAESY-JCD-100VOLT ANSI
ESY-JCD-100VOLT ASAESY/100V USHIOESY/100V/150W/G6.35 ANSIESY/100V/150W/GX6.35 ANSI
ESY/120V/150W/G6.35 ANSIESY/G6.35 USHIOESY/G6.35/100V USHIOESY/JCD INTERLIGHT
ESY/T4-120V-150W-2-PIN LAMPTECHFU-650GX6.35-13X50-100V-150W/H168500/130231 ORBITECGX6.35-13X50MM-100V-150W/H168500/130231 ORBITEC
GX635-13X50-100V-150W ORBITECH-168500 ORBITECH/100V/150W/G6.35/T4/200HH/100V/150W/G6.35/T4/CC6/200H
H/100V/150W/G6.35/T4/CC6/200H/ESY-100VH/100V/150W/G6.35/T4/CL/200HH/100V/150W/GX6.35/T4/200HH/100V/150W/GX6.35/T4/32MMLCL/50MMMOL/200H
H/100V/150W/GX6.35/T4/CL/200HH/100V/150W/GX6.35/TUBE/200HH/120V/150W/G6.35/T4/CC6/200HH/120V/150W/G6.35/T4/CC6/200H/ESY-120V
H/120V/150W/GX6.35/CAPSULE/200HH/120V/150W/GX6.35/T4/200HH168500-GX635-13X50-100V-150W ORBITECH168500/100V/150W ORBITEC
H168500/100V/150W/GX6.35 ORBITECJCD ANSIJCD KONDOJCD-0150 USHIO
JCD-100V-150W HOSOBUCHIJCD-100V-150W/G6.35/ESY ANSIJCD-100VOLT-150WATT-B USHIOJCD-100VOLT-150WATT-M KONDO
JCD-120 VOLT-150WATT-BJCD-120 VOLT-150WATT-L-G-1JCD-120V/150W/L/G1JCD-150WATT-L-G-1
JCD-ESYJCD-M KONDOJCD/100V/150W/BJCD/150W/L/G1
JCD100V-150WB USHIOJCD100V-150WB/ESY USHIOJCD100V-150WB/G6.35/200H USHIOJCD100V150WB-CC6-200HR USHIO
JCD100V150WB-CC6-200HR/100V/150W/G6.35 USHIOJCD100V150WB-CC6-200HR/100V/150W/G6.35/ESY USHIOJCD100V150WB-CC6-200HR/ESY USHIOJCD100V150WB-G6.35 USHIO
JCD120V-150WB LAMPTECHJCD120V-150WB USHIOJCD120V-150WB/120V-150W-G6.35-PHOTO LAMPTECHJCD120V-150WB/G6.35/100H USHIO
JCD120V/150WBJCD120V150WB BULB-DIRECTJCD120V150WB-CC6-100HR USHIOJCD120V150WB-CC6-100HR/120V/150W/G6.35 USHIO
JCD120V150WB-G6.35 USHIOM-150/SVESY SMITH-VICTORQCL150/SVESY SMITH-VICTORSPQ150T4G6.35CC6-100V
SPQ150T4G6.35CC6-120VSPQ150T4G6.35CC6100V-ESY-100VSPQ150T4G6.35CC6120V-ESY-120VSPQ150T4G6.35CL-100V
SPQ150T4G6.35CL-120VSPQ150T4G6.35CL100V-ESY-100VSPQ150T4G6.35CL120V-ESY-120VSVESY
