ETB ANSI Code
ETB ANSI is a T4 lamp with a BA15d base operating at 250 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Ext. frosted finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETB lamps.

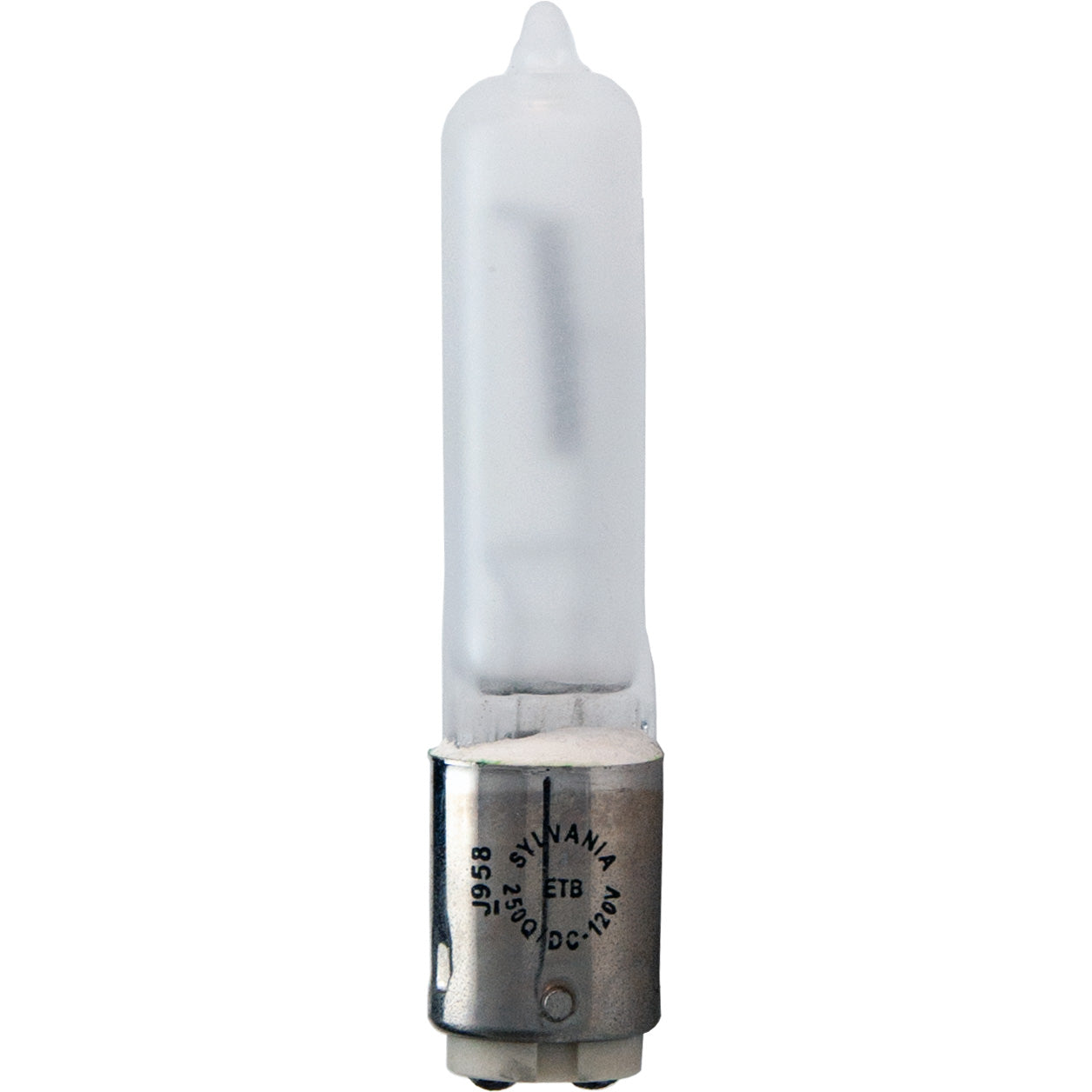

ETB Photograph |
 |
Electrical Specifications | |
| Amps | 1.92 |
|---|---|
| Volts | 120 |
| Watts | 250 |
Photometrics | |
| Candlepower | 380 |
|---|---|
| Color Temperature | 2950 |
| Light Center Length (LCL) | 1 5/8 |
| Lumens | 4850 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Ext. frosted |
| Max Overall Length (MOL) | 3 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | ETB |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| CEW Lighting | 56032 | 250Q/DC130V | |
| General Electric | 43701 | Q250DC ETB | |
| Kenro | 532-0025 | ||
| Osram Sylvania | 58753 | 250Q/DC (ETB) | |
| Ushio | 1000372 | ETB, JCV120V-250WGBF | Available |
| Microlites | 120-250-03F | ||
| Microlites | 125-250-03F | ||
| Microlites | 130-250-03F | ||
| Canimpex | 120-250-03F | ||
| Canimpex | 125-250-03F | ||
| Canimpex | 130-250-03F | ||
Equipment Used In | ||
| Brand | Model | Type |
| Kenro | 2600 | Graphic Arts |
