ETC ANSI Code
ETC ANSI is a T4 lamp with a BA15d base operating at 150 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETC lamps.

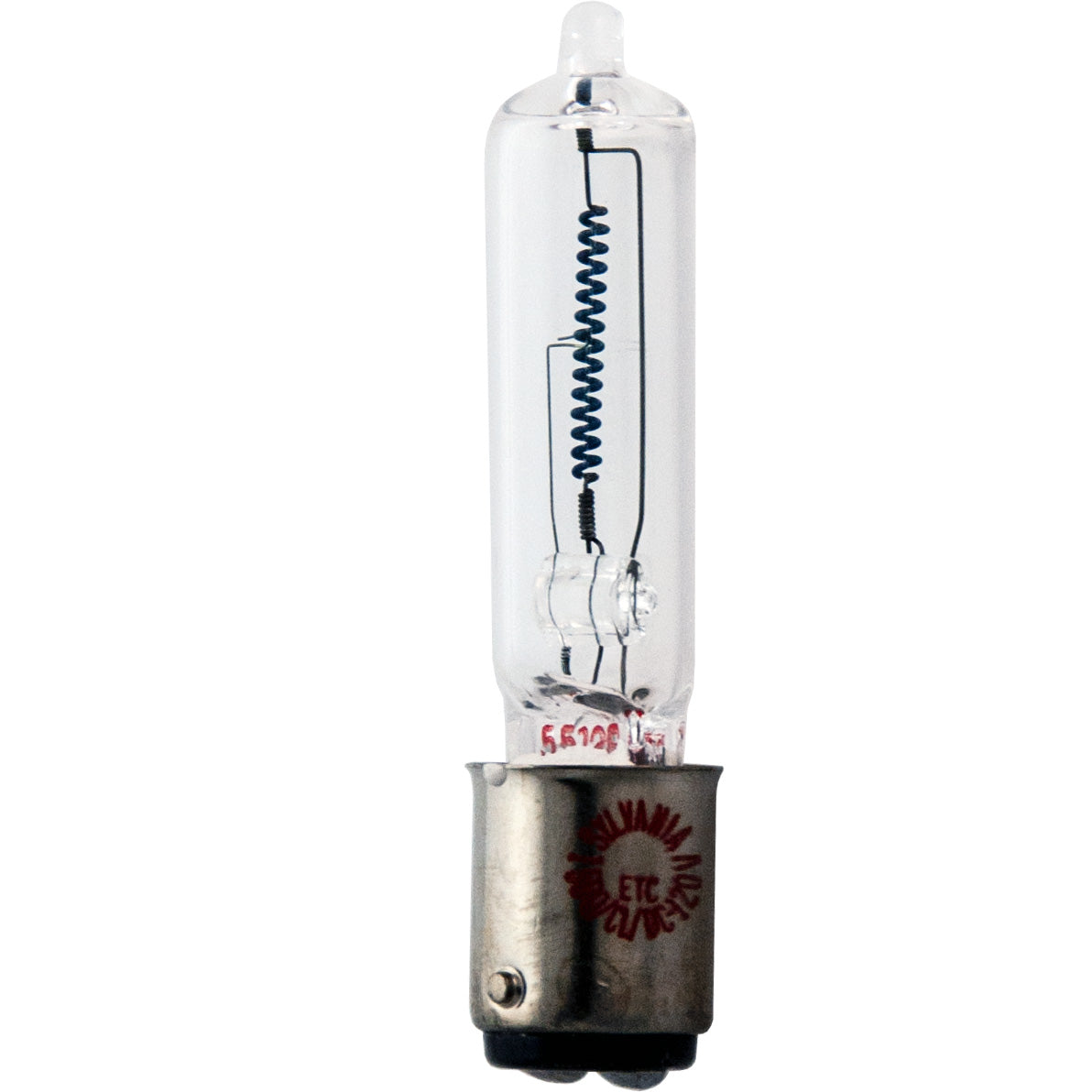

ETC Photograph |
 |
Electrical Specifications | |
| Amps | 1.15 |
|---|---|
| Volts | 120 |
| Watts | 150 |
Photometrics | |
| Candlepower | 220 |
|---|---|
| Color Temperature | 2900 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 2800 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 7/16 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | ETC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| AMSCO | P84079-003 | ||
| Getinge Castle/MDT | 8415 | ||
| CEW Lighting | 56012 | 150Q/CL/DC130V | |
| EYE (Iwasaki) | JD120V150W/BD | 150Q/CL/DC ETC | |
| General Electric | 43693 | Q150CL/DC | |
| Osram Sylvania | 58741 | 150Q/CL/DC (ETC) | Available |
| Philips | 266767 | ETC 150QCL/DC | |
| Ushio | 1000373 | ETC, JCV120V-150WGB | Available |
| Hikari | JD-7269 | JD 120V 150W DC BA15d (ETC) | Available |
| Grainger | 2V702 | ||
| Microlites | 120-150-03E | ||
| Microlites | 120-150-03Q | ||
| Microlites | 130-150-03E | ||
| Canimpex | 120-150-03E | ||
| Canimpex | 120-150-03Q | ||
| Canimpex | 130-150-03E | ||
| Biclite | 11724 | ETC | |
Equipment Used In | ||
| Brand | Model | Type |
| AMSCO | Examiner 10 | |
| Berkey Colortran | 214-002 | |
| DeJur Amsco | P-84079-003 | |
| Getinge Castle/ALM | 209P | |
| Getinge Castle/ALM | 2400 | |
| Getinge Castle/ALM | 8415P | |
| Getinge Castle/MDT | 2410C | |
| Getinge Castle/MDT | 8415P | |
| Getinge Castle/MDT | 2410M | |
| L&E | PAR-56 Borderlight | Stage / Studio |
| LTM | Pepper 150 | |
| LTM | Pepper 200 | |
| Steris Corp (Amsco) | Examiner 10 | |
| Times Square Lighting | C3 Fresnel 150w 120v | |
| Times Square Lighting | S100 Flood 150w 120v ETC | |
