ETD ANSI Code

ETD ANSI is a T4 lamp with a BA15d base operating at 100 watts and 120 volts. It has a color temperature of 2850 Kelvin. It has a Ext. frosted finish. The average rated life is 750 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETD lamps.

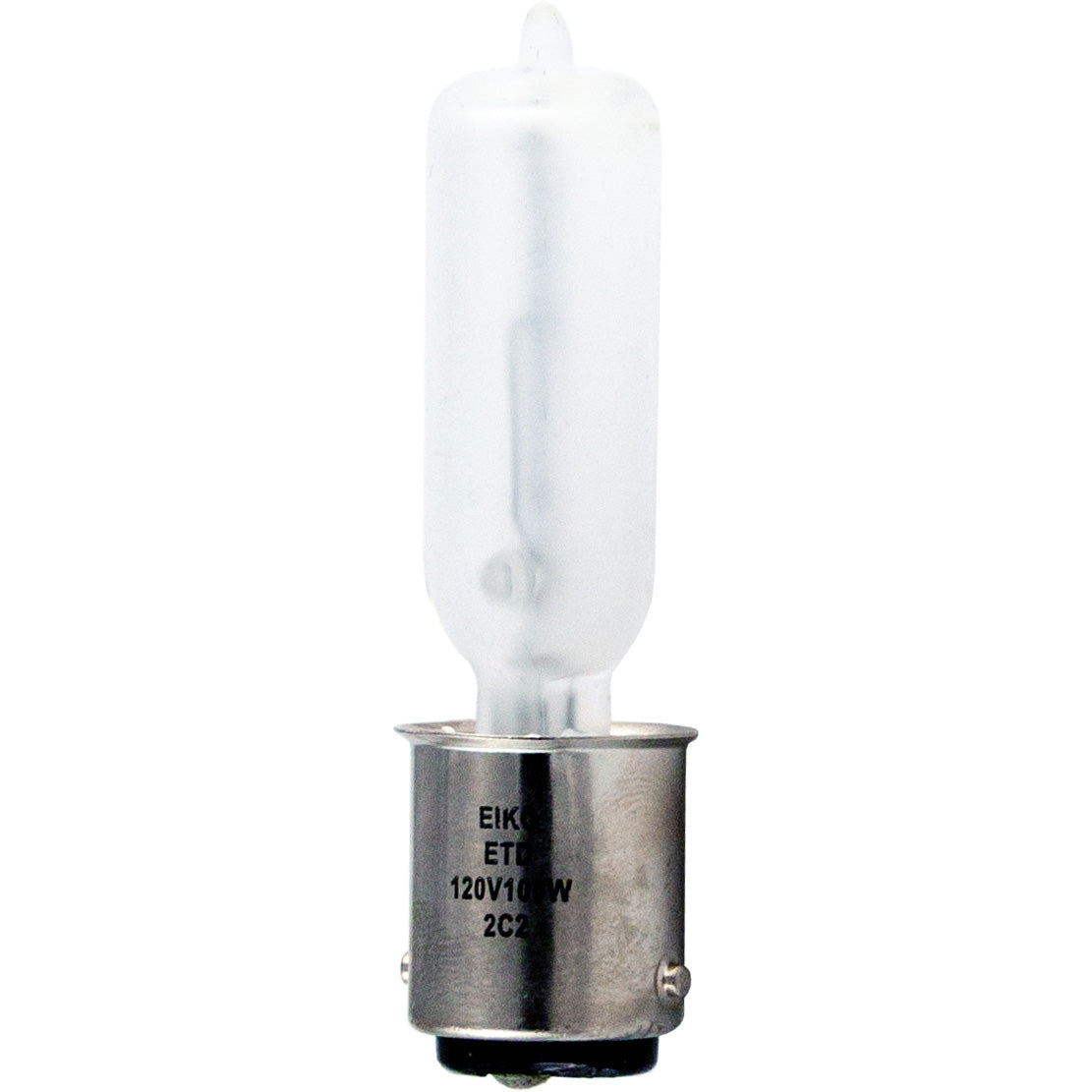

ETD Photograph

ETD

Electrical Specifications

Amps0.769
Volts120
Watts100

Photometrics

Candlepower140
Color Temperature2850
Light Center Length (LCL)1 3/8
Lumens1750

Physical Characteristics

BaseBA15d
Bulb ShapeT4
FilamentCC-2V
FinishExt. frosted
Max Overall Length (MOL)2 7/16

Operating Characteristics

Burn PositionAny
Life Hours750

General Information
Lamp CodeETD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For Clear Glass Use ESR

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-2V Filament

CC-2V
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
CEW Lighting56007100Q/DC130V
Eiko15228ETD
General Electric44657Q100DC/2V
Grainger1P031
HalcoETD
Osram Sylvania58757100Q/DC (ETD)
Ushio1000374ETD, JCV120V-100WGB2F
Standard Products30220ETD
Microlites120-100-03F
Microlites125-100-03F
Microlites130-100-03F
Canimpex120-100-03F
Canimpex125-100-03F
Canimpex130-100-03F

ETD may also be listed as:
031293152206 EIKO031293152282 EIKO04613558757 SYLVANIA04809 WESTINGHOUSE
04809-00 WESTINGHOUSE04809-ETD-10 WESTINGHOUSE048777124505 UPC100-Q-BA15D-2V SYLVANIA
100-Q-BA15D-2V-120 SYLVANIA100-Q-BA15D-2V-120-ETD SYLVANIA100-Q-BA15D-2V-120-ETD-120 SYLVANIA100-Q-BA15D-2V-120-ETD-120V SYLVANIA
100-Q-BA15D-2V-120V SYLVANIA100-Q-BA15D-2V-120V-ETD SYLVANIA100-Q-BA15D-2V-120V-ETD-120 SYLVANIA100-Q-BA15D-2V-120V-ETD-120V SYLVANIA
100-Q-BA15D-2V-ETD-120100-Q-BA15D-2V-ETD-120V100-Q-BA15D-ETD-120 PHILIPS100-Q-BA15D-ETD-120V PHILIPS
100-Q-DC-2V SYLVANIA100-Q-DC-2V-120 SYLVANIA100-Q-DC-2V-120-ETD SYLVANIA100-Q-DC-2V-120-ETD-120 SYLVANIA
100-Q-DC-2V-120-ETD-120V SYLVANIA100-Q-DC-2V-120V SYLVANIA100-Q-DC-2V-120V-ETD SYLVANIA100-Q-DC-2V-120V-ETD-120 SYLVANIA
100-Q-DC-2V-120V-ETD-120V SYLVANIA100-Q-DC-2V-ETD-120100-Q-DC-2V-ETD-120V100-Q-DC-ETD-120 PHILIPS
100-Q-DC-ETD-120V PHILIPS1000374 USHIO100Q-DC-ETD120V100Q-DC-ETD120V/04613558757 SYLVANIA
100Q-DC-ETD120V/58757 SYLVANIA100Q/DC PHILIPS100Q/DC-ETD OSRAM100Q/DC/120V OSRAM
100Q/DC/120V/100W OSRAM100Q/DC/ETD/120V/100W OSRAM100QDC-ETD-120V OSRAM100W/Q/DC/120V OSRAM
100W/Q/DC/ETD/120V OSRAM100WATT-QUARTZ-BA15D-2V SYLVANIA100WATT-QUARTZ-BA15D-2V-120 VOLT SYLVANIA100WATT-QUARTZ-BA15D-2V-120 VOLT-ETD SYLVANIA
100WATT-QUARTZ-BA15D-2V-120 VOLT-ETD-120 VOLT SYLVANIA100WATT-QUARTZ-BA15D-2V-130VOLT-ETD-130VOLT100WATT-QUARTZ-BA15D-2V-ETD-120 VOLT100WATT-QUARTZ-BA15D-2V-ETD-130VOLT
100WATT-QUARTZ-BA15D-ETD-120 VOLT PHILIPS100WATT-QUARTZ-BA15D-ETD-130VOLT100WATT-QUARTZ-BA15D-FROSTED-130VOLT100WATT-QUARTZ-FROSTED-BA15D-130VOLT
120-100-03-F15220 EIKO15220 UPC15228 EIKO
15228 UPC15228 WIKO3129315228 WIKO44657
44657 GENERAL-ELECTRIC4.53012E+1249596 EIKO49596 UPC
58757 OSRAM58757 SYLVANIA613102 BULBRITEBW-ETD
ETD ANSIETD ASAETD BULB-DIRECTETD EIKO
ETD HALCOETD INTERLIGHTETD LAMPTECHETD MICROLAMP
ETD SYLVANIAETD USHIOETD WIKOETD-100W-120V-BA15D USHIO
ETD-120 ANSIETD-120 ASAETD-120 VOLT ANSIETD-120 VOLT ASA
ETD-120V ANSIETD-120V ASAETD-120V-100WETD-120V-100W ANSI
ETD-120V-100W ASAETD-120V-100W-BA15D USHIOETD-120V-100W-BA15D-T-4-CC-2V-EXT.-FROSTED-1750L-2850K-750H-ANY-2-7/16MOL-1-3/8LCL-Q-STTV-MINIATURE-FRESNELSETD-120V-100W-BA15D-T4-CC2V-EXTERNAL-FROSTED-1750L-2850K-750H-ANY-2-7/16MOL-1-3/8LCL-Q-STTV-MINIATURE-FRESNELS
ETD-120V/120V/100W/BA15D ANSIETD-125V/125V/100W/BA15D ANSIETD-130 ANSIETD-130V ANSI
ETD-130V ASAETD-130V-100W ANSIETD-130V-100W ASAETD-130V/130V/100W/BA15D ANSI
ETD-130VOLT ANSIETD-130VOLT ASAETD-130VOLT INTERLIGHTETD/10 WESTINGHOUSE
ETD/120V OSRAMETD/120V-100W-FROSTED-HAL-DC LAMPTECHETD/120V/100W OSRAMETD/120V/100W/BA15D ANSI
ETD/125V ANSIETD/125V/100W ANSIETD/125V/100W/BA15D ANSIETD/130V/100W/BA15D ANSI
ETD/FRETD/FROSTEDETD/FROSTED/T4/BA15D/100W/120V/1/10/750H/CC-2V/1750L/2900K/UNIVERSAL-BURNH/120V/100W/BA15D/CC2V/TUBE/FR
H/120V/100W/BA15D/T4/CC2V/1000H/ETDH/120V/100W/BA15D/T4/FRH/120V/100W/BA15D/T4/FR/1000HH/120V/100W/BA15D/T4/FR/1000H/ETD
H/120V/100W/BA15D/T4/FR/1000H/ETD-120VH/120V/100W/BA15D/T4/FR/750HH/120V/100W/BA15D/T4/FR/750H/ETDH/120V/100W/BA15D/T4/FR/ETD
H/125V/100W/BA15D/T4/FR/1000HH/125V/100W/BA15D/T4/FR/1000H/ETDH/125V/100W/BA15D/T4/FR/1000H/ETD-125VH/130V/100W/BA15D/CC2V/TUBE/FR
H/130V/100W/BA15D/T4/FR/1000HH/130V/100W/BA15D/T4/FR/1000H/ETDH/130V/100W/BA15D/T4/FR/1000H/ETD-130VJCV-120 VOLT-100WATT-GB-2-F USHIO
JCV-120V-100-GB-2-F USHIOJCV-130VOLT-100WATT-GB-2-F USHIOJCV/120V/100W/BA15D/FRJCV/120V/100W/GB2F
JCV120-100GB2F USHIOJCV120-100WGB2F USHIOJCV120V-100WGB2F USHIOJCV120V-100WGB2F/BA15D/CC2V/750H USHIO
JCV120V-100WGB2F/ETD USHIOJCV120V100WGB2F-BA15D USHIOJCV120V100WGB2F-CC2V-750HR-FROSTED USHIOJCV120V100WGB2F-CC2V-750HR-FROSTED/120V/100W/BA15D USHIO
JCV120V100WGB2F-CC2V-750HR-FROSTED/120V/100W/BA15D/ETD USHIOJCV120V100WGB2F-CC2V-750HR-FROSTED/ETD USHIOJD-120 VOLT-100WATT-FROSTED-2V-BA15DJD-120V-100-F-2V-BA15D
JD-120V-100-F-2V-DCJD-120V-100-FR-2V-BA15DJD-120V-100-FR-2V-DCJD-120V-100W-F-2V-BA15D
JD-120V-100W-F-2V-DCJD-120V-100W-FR-2V-BA15DJD-120V-100W-FR-2V-DCJD-130VOLT-100WATT-F-2V-BA15D
JD120-100F2VBA15DJD120-100F2VDCJD120-100FR2VBA15DJD120-100FR2VDC
JD120-100WF2VBA15DJD120-100WF2VDCJD120-100WFR2VBA15DJD120-100WFR2VDC
JD120V100WDCFRQ-100-BA15D-2V GENERAL-ELECTRICQ-100-BA15D-2V-120 EIKOQ-100-BA15D-2V-120-ETD EIKO
Q-100-BA15D-2V-120-ETD-120 EIKOQ-100-BA15D-2V-120-ETD-120V EIKOQ-100-BA15D-2V-120V EIKOQ-100-BA15D-2V-120V-ETD EIKO
Q-100-BA15D-2V-120V-ETD-120 EIKOQ-100-BA15D-2V-120V-ETD-120V EIKOQ-100-BA15D-2V-ETD-120 GENERAL-ELECTRICQ-100-BA15D-2V-ETD-120V GENERAL-ELECTRIC
Q-100-BA15D-ETD-120 PHILIPSQ-100-BA15D-ETD-120V PHILIPSQ-100-DC-2V GENERAL-ELECTRICQ-100-DC-2V-120 EIKO
Q-100-DC-2V-120-ETD EIKOQ-100-DC-2V-120-ETD-120 EIKOQ-100-DC-2V-120-ETD-120V EIKOQ-100-DC-2V-120V EIKO
Q-100-DC-2V-120V-ETD EIKOQ-100-DC-2V-120V-ETD-120 EIKOQ-100-DC-2V-120V-ETD-120V EIKOQ-100-DC-2V-ETD-120 GENERAL-ELECTRIC
Q-100-DC-2V-ETD-120V GENERAL-ELECTRICQ-100-DC-ETD-120 PHILIPSQ-100-DC-ETD-120V PHILIPSQ-100W-BA15D-2V GENERAL-ELECTRIC
Q-100W-BA15D-2V-120 EIKOQ-100W-BA15D-2V-120-ETD EIKOQ-100W-BA15D-2V-120-ETD-120 EIKOQ-100W-BA15D-2V-120-ETD-120V EIKO
Q-100W-BA15D-2V-120V EIKOQ-100W-BA15D-2V-120V-ETD EIKOQ-100W-BA15D-2V-120V-ETD-120 EIKOQ-100W-BA15D-2V-120V-ETD-120V EIKO
Q-100W-BA15D-2V-ETD-120 GENERAL-ELECTRICQ-100W-BA15D-2V-ETD-120V GENERAL-ELECTRICQ-100W-BA15D-ETD-120 PHILIPSQ-100W-BA15D-ETD-120V PHILIPS
Q-100W-DC-2V GENERAL-ELECTRICQ-100W-DC-2V-120 EIKOQ-100W-DC-2V-120-ETD EIKOQ-100W-DC-2V-120-ETD-120 EIKO
Q-100W-DC-2V-120-ETD-120V EIKOQ-100W-DC-2V-120V EIKOQ-100W-DC-2V-120V-ETD EIKOQ-100W-DC-2V-120V-ETD-120 EIKO
Q-100W-DC-2V-120V-ETD-120V EIKOQ-100W-DC-2V-ETD-120 GENERAL-ELECTRICQ-100W-DC-2V-ETD-120V GENERAL-ELECTRICQ-100W-DC-ETD-120 PHILIPS
Q-100W-DC-ETD-120V PHILIPSQ/100W/DC/120VQ100/DC-120V EIKOQ100/DC120V
Q100DC/2V BULB-DIRECTQ100DC/2V/120V GENERAL-ELECTRICQ100DC/2V120VQ100DCFR
Q100DCFR120VQ100FR MICROLAMPQ100FR/DC2V MICROLAMPQ100T4DCFR
Q100T4DCFR120VQSP100DCFR120VQSP100DCFR125VQSP100DCFR130V
QUARTZ-100WATT-BA15D-2V GENERAL-ELECTRICQUARTZ-100WATT-BA15D-2V-120 VOLT EIKOQUARTZ-100WATT-BA15D-2V-120 VOLT-ETD EIKOQUARTZ-100WATT-BA15D-2V-120 VOLT-ETD-120 VOLT EIKO
QUARTZ-100WATT-BA15D-2V-130VOLT-ETD EIKOQUARTZ-100WATT-BA15D-2V-ETD-120 VOLT GENERAL-ELECTRICQUARTZ-100WATT-BA15D-2V-ETD-130VOLTQUARTZ-100WATT-BA15D-ETD-120 VOLT PHILIPS
QUARTZ-100WATT-BA15D-ETD-130VOLTQUARTZ-100WATT-BA15D-FROSTED-130VOLTQUARTZ-100WATT-FROSTED-BA15D-130VOLTQUARTZ-100WATT-FROSTED-BA15D-2V-130VOLT
QUARTZ-100WATT-T4-BA15D-FROSTED-130VOLTSPQ100T4BA15DFR120VSPQ100T4BA15DFR120V-ETD-120VSPQ100T4BA15DFR125V
SPQ100T4BA15DFR125V-ETD-125VSPQ100T4BA15DFR130VSPQ100T4BA15DFR130V-ETD-130VSPQ100T4DCFR120V
SPQ100T4DCFR120V-ETD-120VSPQ100T4DCFR125VSPQ100T4DCFR125V-ETD-125VSPQ100T4DCFR130V
SPQ100T4DCFR130V-ETD-130V
