ETG ANSI Code
ETG ANSI is a T4 lamp with a E11 base operating at 150 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETG lamps.

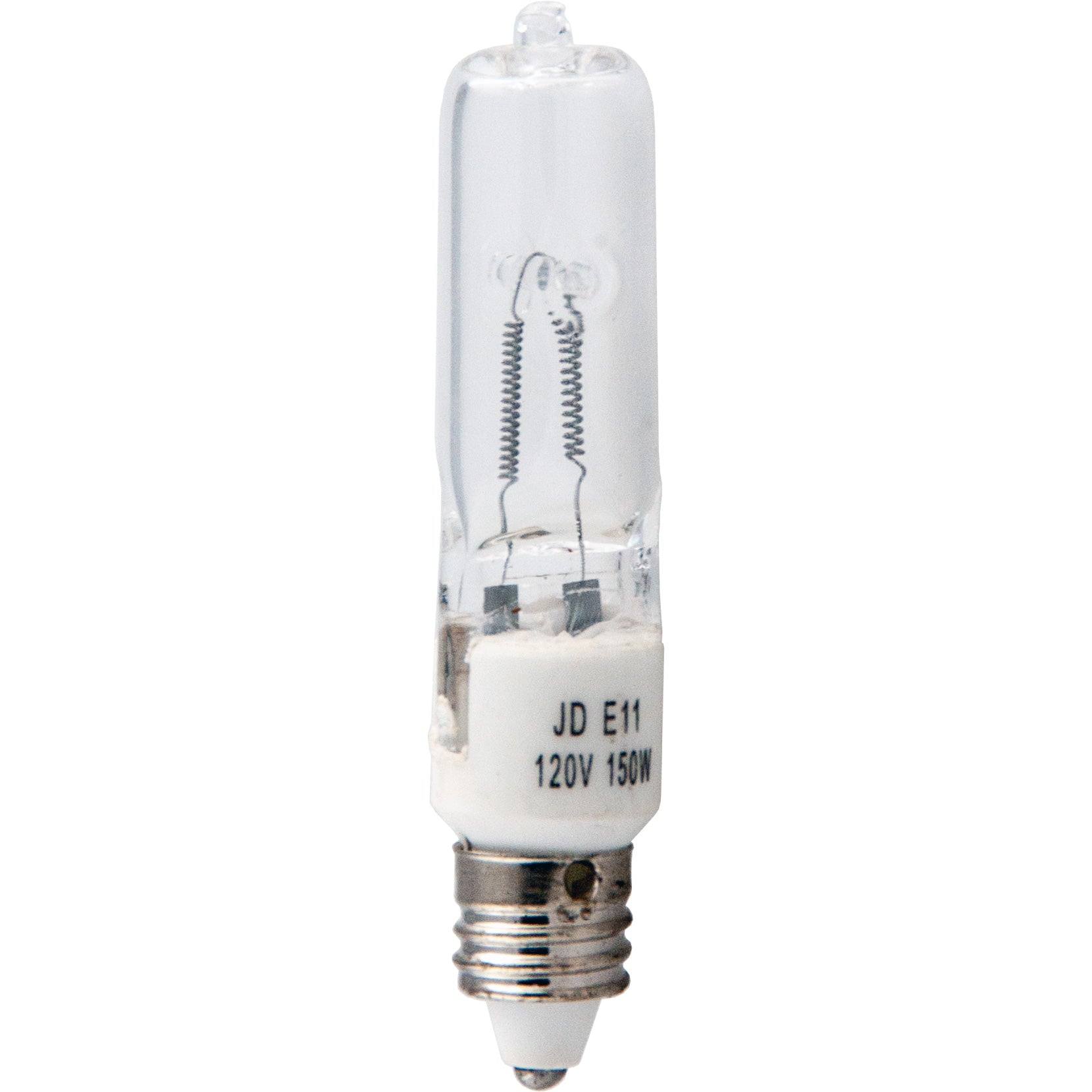

ETG Photograph |
 |
Electrical Specifications | |
| Amps | 1.15 |
|---|---|
| Volts | 120 |
| Watts | 150 |
Photometrics | |
| Candlepower | 220 |
|---|---|
| Color Temperature | 2900 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 2800 |
Physical Characteristics | |
| Base | E11 |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 13/16 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | ETG |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

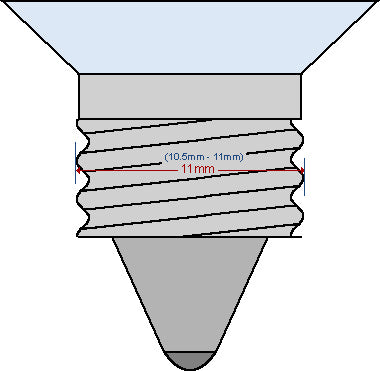

E11 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| EYE (Iwasaki) | JD120V150W/M2 | 150Q/CL/MC ETG | |
| General Electric | 43694 | Q150CL/MC | |
| Grainger | 2V701 | ||
| Osram Sylvania | 58735 | 150Q/CL/MC/2 (ETG) | Available |
| Philips | 347542 | 150Q/CL ETG 120V | |
| Ushio | 1000377 | ETG, JCV120V-150WGSN | Available |
| Hikari | JD-7215 | JD 120V 150W MC E11 (ETG) | Available |
| Microlites | 120-150-45 | ||
| Microlites | 125-150-45 | ||
| Microlites | 130-150-45 | ||
| Canimpex | 120-150-45 | ||
| Canimpex | 125-150-45 | ||
| Canimpex | 130-150-45 | ||
| Biclite | 11722 | ETG | |
Equipment Used In | ||
| Brand | Model | Type |
| Sunpak | MS-4000 | Photography Flash modeling lamp |
