ETH ANSI Code

ETH ANSI is a T4 lamp with a E11 base operating at 150 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Ext. frosted finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETH lamps.

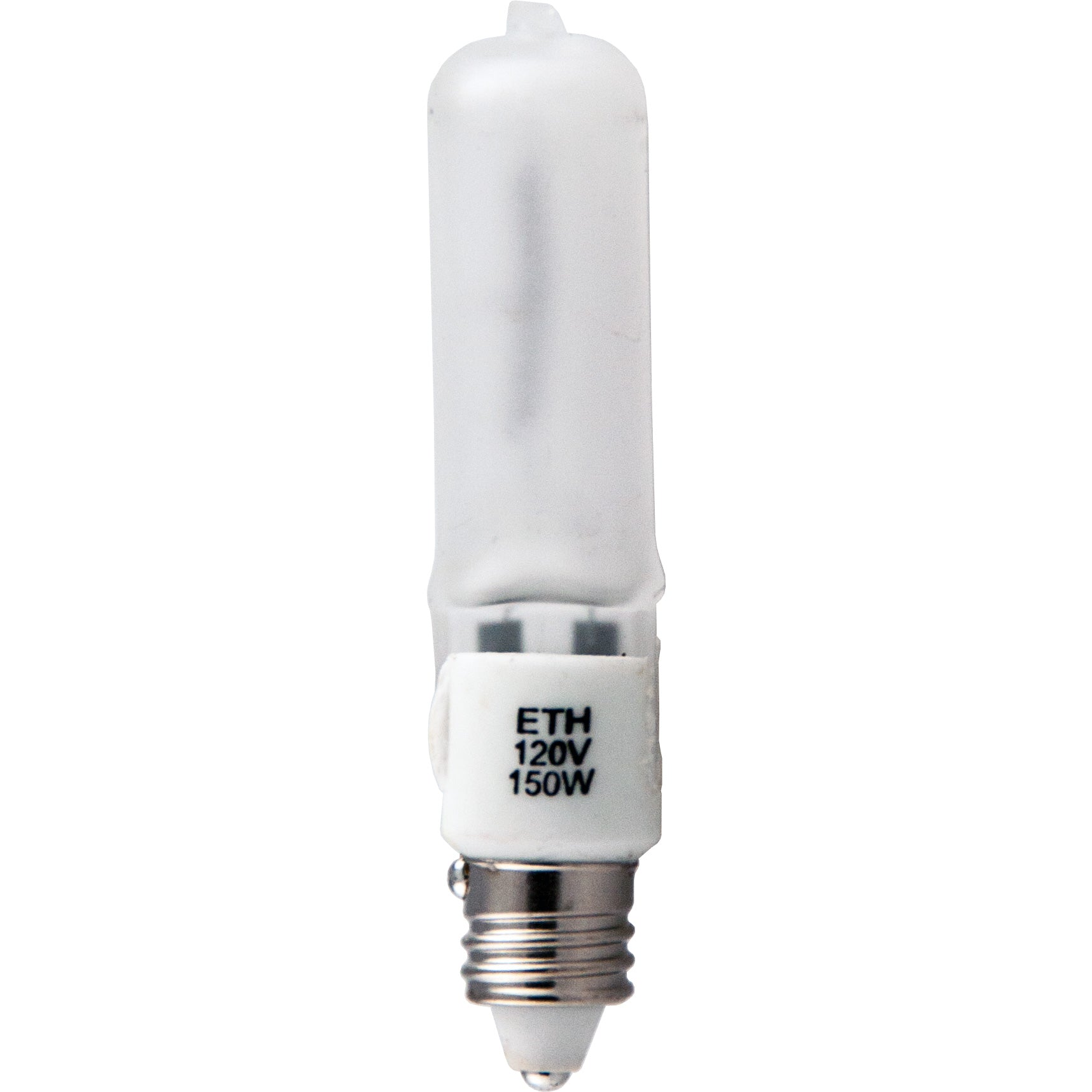

ETH Photograph

ETH

Electrical Specifications

Amps1.15
Volts120
Watts150

Photometrics

Candlepower210
Color Temperature2900
Light Center Length (LCL)1 3/8
Lumens2700

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishExt. frosted
Max Overall Length (MOL)2 13/16

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeETH
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
CEW Lighting56021150Q130V
Eiko15242ETH
General Electric44654Q150MC
Grainger5V735
Halco71100Q150MC/120 ETH
Osram Sylvania58736150Q/MC (ETH)
Philips298562150Q ETH 120V
Ushio1000378ETH, JCV120V-150WGSNF
Standard Products15435150Q/F/MC/130V/EYE, JD150WF/MC
Microlites120-150-45F
Microlites130-150-45F
Canimpex120-150-45F
Canimpex130-150-45F

Equipment Used In

BrandModelType
Macbeth 20120029

ETH may also be listed as:
031293152428 EIKO04468 WESTINGHOUSE04468-150-QUARTZ WESTINGHOUSE045923019173 SATCO
04613558736 SYLVANIA04804 WESTINGHOUSE04804-00 WESTINGHOUSE04804-ETH-10 WESTINGHOUSE
048777124789 UPC048777356623 UPC1000378 BLV1000378 USHIO
1003094 USHIO107026 HALCO125-150-45-F132004 NARVA
132004 ORBITEC132004-H21656DEP-E11-11X67-120V-150W-DEP ORBITEC132004/120V/150W NARVA132004/120V/150W ORBITEC
132004/120V/150W/E11 ORBITEC150Q PHILIPS150Q-150QF/MC-ETH-Q150MC-ETH-150Q/MC-ETH-120V-150Q IWASAKI150Q-150QF/MC-JD1213-ETH IWASAKI
150Q-150QF/MC/130V IWASAKI150Q-150QF/MC/130V-JD1194 IWASAKI150Q-ETH-120V PHILIPS150Q-ETH-120V-12PK PHILIPS
150Q-MC-ETH120V150Q-MC-ETH120V/04613558736 SYLVANIA150Q-MC-ETH120V/58736 SYLVANIA150Q/ETH PHILIPS
150Q/F SATCO150Q/MC IWASAKI150Q/MC-ETH OSRAM150Q/MC/120V OSRAM
150Q/MC/120V/150W OSRAM150Q/MC/ETH/120V SYLVANIA150Q/MC/ETH/120V/150W OSRAM150QF/MC IWASAKI
150QF/MC/130V IWASAKI150QFR-MC120150QFR/MC120V150QMC-ETH-120V OSRAM
150W/Q/MC/120V OSRAM150W/Q/MC/ETH/120V OSRAM150WATT-QUARTZ PHILIPS150WATT-QUARTZ WESTINGHOUSE
150WATT-QUARTZ-120 VOLT PHILIPS150WATT-QUARTZ-E11S-120 VOLT150WATT-QUARTZ-E11S-120 VOLT-ETH150WATT-QUARTZ-E11S-130VOLT
150WATT-QUARTZ-E11S-ETH-120 VOLT150WATT-QUARTZ-E11S-FROSTED150WATT-QUARTZ-E11S-FROSTED-120 VOLT150WATT-QUARTZ-E11S-FROSTED-130VOLT
150WATT-QUARTZ-ETH WESTINGHOUSE150WATT-QUARTZ-ETH-120 VOLT WESTINGHOUSE150WATT-QUARTZ-FROSTED-E11S150WATT-QUARTZ-FROSTED-E11S-120 VOLT
150WATT-QUARTZ-FROSTED-E11S-130VOLT15242 EIKO15242 UPC15242 WIKO
29856-2 PHILIPS298562/150Q-ETH PHILIPS3129315242 WIKO44654 GENERAL-ELECTRIC
49603 EIKO49603 UPC58736 OSRAM58736 SYLVANIA
58736/150Q/MC/ETH-120V SYLVANIA71100 HALCO807154170265 HALCO80776 IWASAKI
80825 IWASAKI844409000762 HIKARI844409001127 HIKARIE11-11X67-120V-150W-DEP ORBITEC
E11-11X67-120V-150W-DEPOLI/H21656DEP/132004 ORBITECE11-11X67MM-120V-150W-DEPOLI/H21656DEP/132004 ORBITECE11-120V-150W-ETH-JCV120V-150WGSNF-T13MM-71MMMOL-35MMLCL-CC-8-2700L-2900K-2000H-FROSTED-1000378 BLVE11-120V-150W-ETH-JCV120V-150WGSNF-T13MM-71MMMOL-35MMLCL-CC-8-2700L-2900K-2000H-FROSTED-1000378 USHIO
ETH ANSIETH ASAETH BULB-DIRECTETH EIKO
ETH HALCOETH INTERLIGHTETH SYLVANIAETH USHIO
ETH WESTINGHOUSEETH WIKOETH-120 VOLT ANSIETH-120 VOLT ASA
ETH-120V ANSIETH-120V ASAETH-120V IWASAKIETH-120V-150W
ETH-120V-150W ANSIETH-120V-150W ASAETH-120V-150W-E11 USHIOETH-120V-150W-E11-T4-CC8-EXTERNAL-FROSTED-2700L-2900K-2000H-ANY-2-13/16MOL-1-3/8LCL-Q-STTV-MINIATURE-FRESNELS
ETH-120V-150W-E11S-T-4-CC-8-EXT.-FROSTED-2700L-2900K-2000H-ANY-2-13/16MOL-1-3/8LCL-Q-STTV-MINIATURE-FRESNELSETH-120V/120V/150W/E11 ANSIETH-130 ANSIETH-130V ANSI
ETH-130V ASAETH-130V-150W ANSIETH-130V-150W ASAETH-130V/130V/150W/E11 ANSI
ETH-130VOLT ANSIETH-130VOLT ASAETH-130VOLT INTERLIGHTETH-150W-120V-E11 USHIO
ETH-JCV120V150WGSNF-T13MM-71MMMOL-35MMLCL-CC-8-2700L-2900K-2000H-FROSTED-1000378 BLVETH-JCV120V150WGSNF-T13MM-71MMMOL-35MMLCL-CC-8-2700L-2900K-2000H-FROSTED-1000378 USHIOETH-USHIO LAMPTECHETH-USHIO/T4-120V-150W-FR-MINICAN LAMPTECH
ETH/10 WESTINGHOUSEETH/120V OSRAMETH/120V/150W OSRAMETH/120V/150W/E11 ANSI
ETH/130V/150W/E11 ANSIETH/FRETH/FROSTEDETH/FROSTED/T4/E11/150W/120V/1/10/2000H/CC-8/2700L/2900K/UNIVERSAL-BURN
H/120V/150W/E11/FRH/120V/150W/E11/T3.5/FRH/120V/150W/E11/T3.5/FR/67MMMOLH/120V/150W/E11/T3.5/FR/67MMMOL/1000H
H/120V/150W/E11/T4/FRH/120V/150W/E11/T4/FR/2000HH/120V/150W/E11/T4/FR/2000H/ETHH/120V/150W/E11/T4/FR/2000H/ETH-120V
H/120V/150W/E11/T4/FR/ETHH/120V/150W/E11/TUBE/FRH/130V/150W/E11/FRH/130V/150W/E11/T4/FR
H/130V/150W/E11/T4/FR/2000HH/130V/150W/E11/T4/FR/2000H/ETH-130VH/130V/150W/E11/T4/FR/2000H/Q150T4MCF130VH/130V/150W/E11/TUBE/FR
H/130V/150W/E11/TUBE/FR/1000HH/130V/150W/E11/TUBE/FR/2000HH21656-DEP ORBITECH21656DEP-E11-11X67-120V-150W-DEP ORBITEC
H21656DEP/120V/150W ORBITECH21656DEP/120V/150W/E11 ORBITECHE11.130.150F BAILEYJCV-120 VOLT-150WATT-GSNF USHIO
JCV/120V/150W/GSNFJCV120V-150WGSNF USHIOJCV120V-150WGSNF/E11/AX/2000H USHIOJCV120V-150WGSNF/ETH USHIO
JCV120V150WGSNF-CC8-2000HR-FROSTED USHIOJCV120V150WGSNF-CC8-2000HR-FROSTED/120V/150W/E11 USHIOJCV120V150WGSNF-CC8-2000HR-FROSTED/120V/150W/E11/ETH USHIOJCV120V150WGSNF-CC8-2000HR-FROSTED/ETH USHIO
JCV120V150WGSNF-E11 USHIOJD-120 VOLT-150WATT-FROSTED-E11SJD-120V-150W-E11S-FRJD-120V/150W-MC-E11-FROST
JD-120V/150W/F/MCJD-120V/150W/MC/E11/FROSTEDJD-120V/150W/MC/FRJD-130V/150W-MC-FROST
JD-130V/150W/F/MCJD-130V/150W/MC/FROSTEDJD-130VOLT-150WATT-FROSTED-E11SJD-150WATT-E11S-FROSTED HALCO
JD-150WATT-FROSTED-E11SJD-7015F HIKARIJD-7015F-JD-130V/150W-MC-FROSTJD-7215F HIKARI
JD-7215F-JD-120V/150W-MC-E11-FROSTJD-FROSTED KONDOJD-FROSTED-150WATT KONDOJD/120V/150W/E11/FR
JD/120V/150W/F/E11JD/120V/150W/FR/E11JD/120V/150W/M2/FRJD/130V/150W/E11/FR HALCO
JD/130V/150W/F/E11JD/130V/150W/M2/FRJD1194 IWASAKIJD120V/150W-MC-E11-FROSTED HIKARI
JD120V150W-F-E11SJD120V150WF-E11 USHIOJD120V150WF-E11-CC8-2000HR-FROSTED USHIOJD120V150WF-E11-CC8-2000HR-FROSTED/120V/150W/E11 USHIO
JD1213 IWASAKIJD130V/150W-MC-FROSTED HIKARIJD130V150W-F-E11SJD130V150WE11FR
JD130V150WF/MC IWASAKIJD130V150WMCFRJD150MC/FR HALCOJD150WF/MC IWASAKI
JD31150-E11-F AIDLITEJD31150-E11S-FROSTED AIDLITEJD31150/E11/FR AIDLITEJD31150/E11/FROSTED AIDLITE
JD7015F-JD-130V/150W-MC-FROSTED-844409000762 HIKARIJD7215F-JD-120V/150W-MC-E11-FROSTED-844409001127 HIKARIQ-150-E11S-FR-130VQ/150W/E11/FR/120V
Q/150W/E11/FR/130VQ/150W/MC/120VQ/150W/MC/FR/130VQ/150W/T4/E11/FR/120V BULBRITE
Q150-MC-120V GENERAL-ELECTRICQ150FR/MC BULBRITEQ150FR/MC/130V MICROLAMPQ150FRMC-120V
Q150MC BULB-DIRECTQ150MC GENERAL-ELECTRICQ150MC HALCOQ150MC-120V EIKO
Q150MC-ETH IWASAKIQ150MC/107026 HALCOQ150MC/107026/T4/E11/FROST/10/400/130V/2280CBCP/2950K/2000H/CC-8/2.72INCHMOLQ150MC/120/ETH HALCO
Q150MC/120/ETH/71100 HALCOQ150MC/120/ETH/71100/T4/E11/FROST/10/200/120V/2280CBCP/2950K/2000H/CC-8/2.72INCHMOLQ150MC/FR130VQ150MC120V
Q150MCFRQ150MCFR-120VQ150T4MCF130VQ150T4MCFR
Q150T4MCFR120VQ150T4MCFR130VQUARTZ-150WATTQUARTZ-150WATT-120 VOLT
QUARTZ-150WATT-E11S GENERAL-ELECTRICQUARTZ-150WATT-E11S-120 VOLT EIKOQUARTZ-150WATT-E11S-120 VOLT-ETH EIKOQUARTZ-150WATT-E11S-ETH GENERAL-ELECTRIC
QUARTZ-150WATT-E11S-ETH-120 VOLT GENERAL-ELECTRICQUARTZ-150WATT-E11S-FROSTEDQUARTZ-150WATT-E11S-FROSTED-120 VOLTQUARTZ-150WATT-E11S-FROSTED-130VOLT
QUARTZ-150WATT-ETH-120 VOLTQUARTZ-150WATT-FROSTED-E11SQUARTZ-150WATT-FROSTED-E11S-120 VOLTQUARTZ-150WATT-FROSTED-E11S-130VOLT
S1917 SATCOSPQ150T4E11FR120VSPQ150T4E11FR120V-ETH-120VSPQ150T4E11FR130V
SPQ150T4E11FR130V-ETH-130VSPQ150T4MCFR120VSPQ150T4MCFR120V-ETH-120VSPQ150T4MCFR130V
SPQ150T4MCFR130V-ETH-130V
