ETR ANSI Code

ETR ANSI is a MR16D lamp with a GX5.3 base operating at 30 watts and 12.8 volts. It has a color temperature of 3100 Kelvin. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ETR lamps.

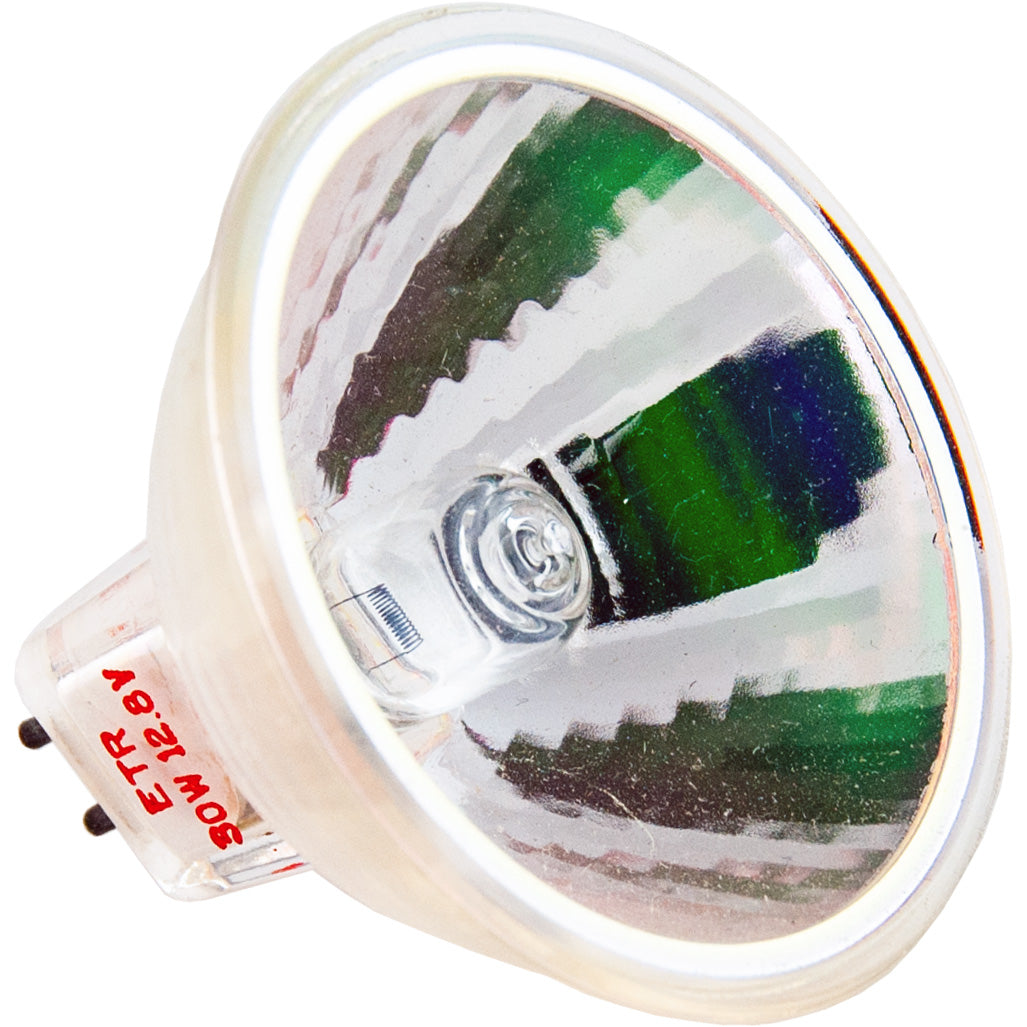

ETR Photograph

ETR

Electrical Specifications

Amps2.34
Volts12.8
Watts30

Photometrics

Color Temperature3100

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16D
Max Overall Length (MOL)1.75" (44.5mm)

Operating Characteristics

Burn PositionANY
Life Hours500

General Information
Lamp CodeETR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR16D Shape

MR16D
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites12.8-030-33R
Canimpex12.8-030-33R

ETR may also be listed as:
ETR ANSIETR ASAETR INTERLIGHTETR SYLVANIA
ETR WIKOETR-12.8V ANSIETR-12.8V ASAETR-12.8V-30W ANSI
ETR-12.8V-30W ASAETR-12.8V/12.8V/30W/GX5.3/MR16D ANSIETR-12.8VOLT ANSIETR-12.8VOLT ASA
ETR/12.8V/30W/GX5.3 ANSIETR/12.8V/30W/GX5.3/MR16D ANSIH/12.8V/30W/GX5.3/MR16D/500H/ETRSPQ30MR16DGX5.3-12.8V
SPQ30MR16DGX5.312.8V-ETR
