EVD ANSI Code
EVD ANSI is a R111 lamp with a G6.35 base operating at 400 watts and 36 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EVD lamps.

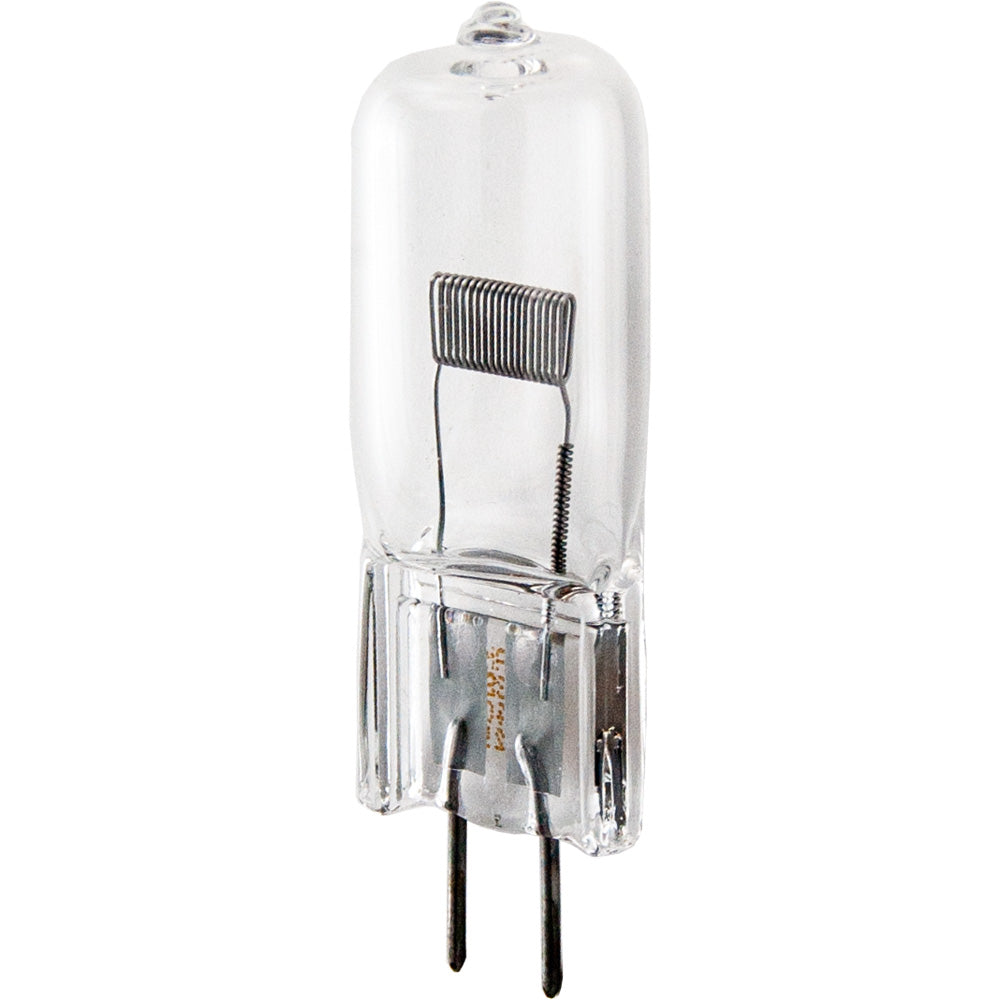

EVD Photograph |
 |
Electrical Specifications | |
| Amps | 11.1 |
|---|---|
| Volts | 36 |
| Watts | 400 |
Photometrics | |
| Candlepower | 970 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 1 5/12 |
| Lumens | 14500 |
Physical Characteristics | |
| Base | G6.35 |
|---|---|
| Bulb Shape | R111 |
| Filament | FC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 3/20 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | EVD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | A1/239 |
FC-6 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|
G6.35 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| American DJ (ADJ Products) | ZB-EVD | ||
| Atlas/Thorn | A1/239 | ||
| Bulbrite | 761115 | EVD | |
| Eiko | 02810 | EVD | |
| General Electric | 41164 | EVD | |
| Osram Sylvania | 54048 | 64663 HLX | |
| Osram Sylvania | 54100 | EVD 64663 HLX | |
| Osram Sylvania | 54103 | EVD 64663 HLX BULK | |
| Osram Sylvania | 54259 | EVD 64663 HLX | Available |
| Osram Sylvania | 64664 | ||
| Philips | 7787 | ||
| Philips | 7787XHP | ||
| Sunlite | 70265 | EVD | |
| Ushio | 1000383 | EVD, JC36V-400WS1 | Available |
| NARVA | 55605 | SH 36V 400W G6,35 | Available |
| NARVA | 55601 | EVD 7787 36V 400W G6,35 | Available |
| Kahoku Lighting Solutions (KLS) | 62054-KLS | EVD Japan | |
| Green Energy Lighting (GELCO) | 62054-GEL | EVD | |
| Rexim, LLC | RSE-56 | ||
| Microlites | 36-400-24 | ||
| Microlites | 36-400-24L | ||
| Microlites | 36-400-24XL | ||
| Canimpex | 36-400-24 | ||
| Canimpex | 36-400-24L | ||
| Canimpex | 36-400-24XL | ||
| Biclite | 11018 | EVD | |
| Orbitec | 130224 | H 164663 | |
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Model 9800 | |
| 3M | F-9800 | |
| 3M | 9880 | |
| 3M | F-9550 | |
| 3M | Model 9550 | |
| 3M | HA-6009 | |
| ASK Proxima | 750 Impression | Multimedia Projector |
| ASK Proxima | Lightbook LB30+ | Multimeda Projector |
| ASK Proxima | Lightbook LB10 | Multimeda Projector |
| ASK Proxima | Lightbook LB20 | Multimeda Projector |
| ASK Proxima | Lightbook LB30 | Multimeda Projector |
| American DJ (ADJ Products) | Typhoon | |
| American DJ (ADJ Products) | Tempest | Stage / Studio |
| American DJ (ADJ Products) | Beamer 40 | |
| Apollo | Costar 400 | |
| Apollo | Escort | |
| Apollo | Magnastar 400 | |
| Apollo | Magnastar | |
| Apollo | Escort QE-400 | |
| Apollo | E400SDV | |
| Apollo | VS3400C CO-STAR 400 | |
| Apollo | S400SDV | |
| Apollo | VS-3250 Magnastar 400 | |
| Apollo | Escort QE-425 | |
| Audiscan | SST-400 Zoom | |
| Audiscan | Chieftan | |
| Audiscan | SST-400 | |
| Boxlight | BL-2020 | Multimedia Projector |
| Boxlight | 2680 Procolor | Multimedia Projector |
| Boxlight | 2101 Procolor | Multimedia Projector |
| Buhl | 2964 | |
| Buhl | 114 | |
| Buhl | 3963 | |
| Buhl | 196-100 | |
| Buhl | 196-110 NKD | |
| Buhl | 2963 | |
| Buhl | 2900 | |
| Buhl | 196-110 | |
| Buhl | 113 | |
| CTX-Opto | EZPro 500 | Multimedia Projector |
| Copal / Sekonic | ML-8580 Photo | |
| Copal / Sekonic | ML-2000 Photo | |
| Dukane | Model 667 | |
| Dukane | 28A667 | |
| EIKI | OHP-3885B | |
| EIKI | 3865 | |
| EIKI | OHP-3875B | |
| EIKI | 3855 | |
| EIKI | 3885 | |
| EIKI | OHP-3895BP | |
| EIKI | OHP-3855SWB | |
| EIKI | 3875 | |
| EIKI | 3895 | |
| EIKI | OHP-3875SWB | |
| EIKI | OHP-3865B | |
| EIKI | OHP-3855B | |
| EIKI | OHP-3865SWB | |
| EIKI | 4410-H | |
| Eastman Kodak | System 20 Photo | |
| Eastman Kodak | System 70 Photo | |
| Elmo | HP-A305SQ | |
| Elmo | HP-A380-K Zoom | |
| Elmo | HP-400HZ | |
| Elmo | HP-A380 ZOOM | |
| Elmo | 5500 | |
| Elmo | HP-5500 | |
| GT Luscombe Company | 9000 | |
| GT Luscombe Company | 8000 | |
| Goetschmann | G-8585 | |
| Goetschmann | G-8565 | |
| InFocus | LitePro LP-570 | Multimedia Projector |
| InFocus | LitePro LP-540 | Multimedia Projector |
| InFocus | LitePro 570 | |
| InFocus | LitePro LP-760 | Multimedia Projector |
| InFocus | LitePro 550 | |
| InFocus | LitePro 560 | |
| InFocus | LitePro LS-570 | Multimedia Projector |
| InFocus | LitePro LP-550 | Multimedia Projector |
| InFocus | LitePro 760L | |
| InFocus | LitePro LP-560 | Multimedia Projector |
| InFocus | LitePro 100LS | |
| InFocus | LitePro 760 | |
| InFocus | LitePro 550LS | |
| InFocus | LitePro LP-570LS | Multimedia Projector |
| InFocus | LitePro 100 | |
| Infographix | 232002000 | |
| Kaiser | CamLight 400 | |
| Liesegang | 660 | |
| Liesegang | 629 | Projector |
| Liesegang | 663 | Projector |
| Liesegang | 400 | Projector |
| Lightware | VP-100 | Multimedia Projector |
| Lightware | VP-810 | Multimedia Projector |
| Lightware | VP-800 | Multimedia Projector |
| Lightware | VP-800+ | Multimedia Projector |
| Mitsubishi | SPS-1000-NVE | Photo |
| Mitsubishi | SPS-1700-ZE | Photo |
| Mitsubishi | SPS-1300-ZE | Photo |
| Mitsubishi | SPS-1400-NVE | Photo |
| Ness | Lambada | |
| Ness | Stella SL | |
| Neumade | ML3800 | |
| Neumade | ML3800-LC | |
| Noritsu | QSS-1701-V | Photo |
| Noritsu | QSS-1401 | Photo |
| Noritsu | QSS-1001-V | Photo |
| Noritsu | QSS-MICRO | Photo |
| Noritsu | QSS-1101-V | Photo |
| Noritsu | QSS-1501 | Photo |
| Noritsu | QSS-1201-V | Photo |
| Noritsu | QSS-702 | Photo |
| Noritsu | QSS-502 | Photo |
| Noritsu | QSS-701 | Photo |
| Noritsu | 1201 | Enlarger / Photo Printer |
| Noritsu | QSS-901 | Photo |
| Noritsu | 701 | Enlarger / Photo Printer |
| Noritsu | QSS-721 | Photo |
| Optoma | CTX 500 | Projector |
| Optoma | EzPro 550 | Projector |
| Optoma | EzPro 350 | Projector |
| Optoma | EzPro 500 | Projector |
| Optoma | CTX 550 | Projector |
| Oriental | 3-Z ZOOM Photo | |
| Oriental | 2-ZB MINIMI Photo | |
| Sinon | HT401 | |
| Sinon | HM35F | |
| Sinon | HM36F | |
| Technicon | SMAC | |
