EVR ANSI Code

EVR ANSI is a T4 lamp with a E11 base operating at 500 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EVR lamps.

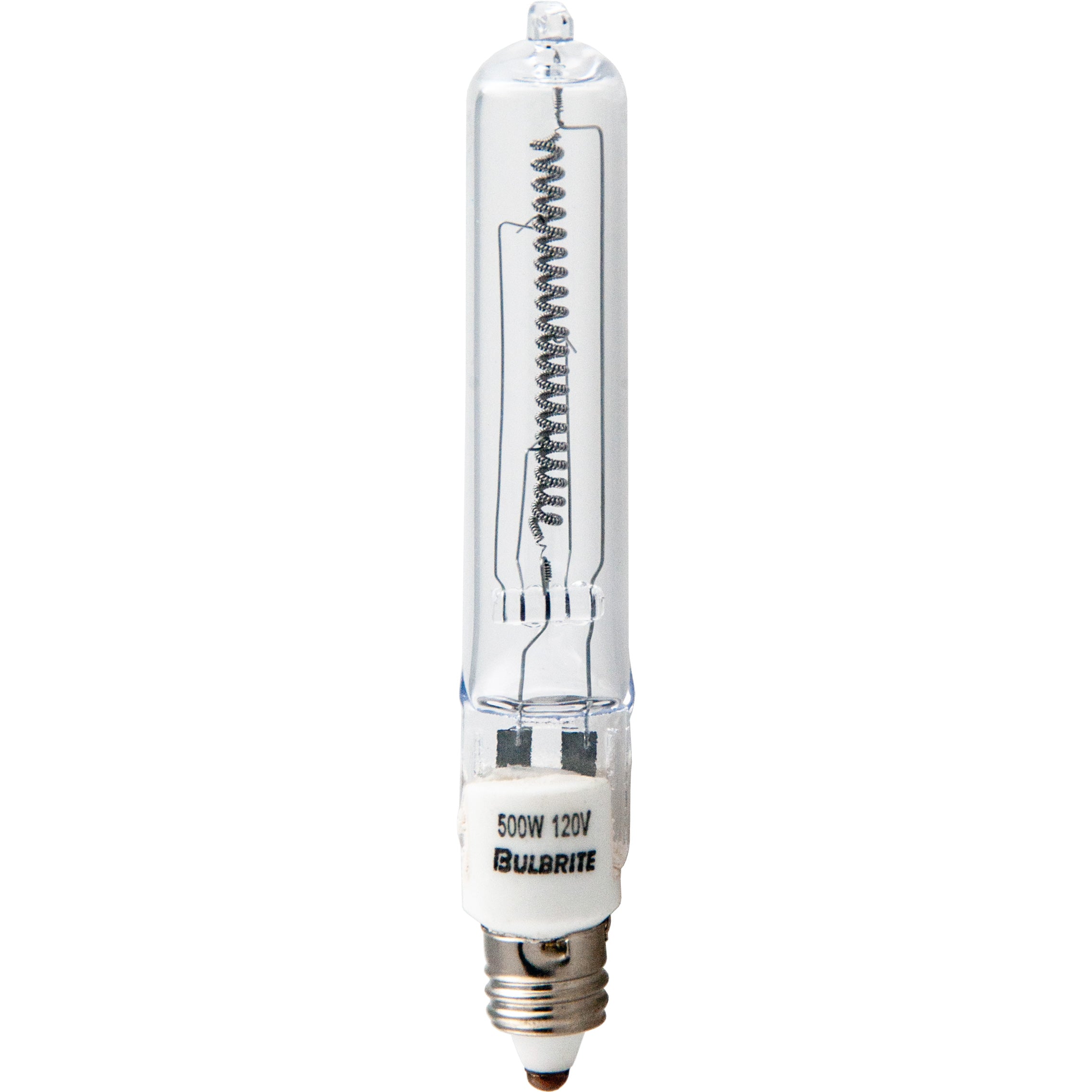

EVR Photograph

EVR

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower800
Color Temperature2950
Light Center Length (LCL)2
Lumens10450

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeEVR
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-01-370-3610

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-179
EYE (Iwasaki)JD120V500W/M2500Q/CL/MC EVR
General Electric47950EVR-Q500CL/MC
Grainger2V266
Osram Sylvania58766500Q/CL/MC (EVR)
Philips380790500Q/CL EVR 120V
Ushio1000384EVR, JCV120V-500WGS
HikariJD-7235JD 120V 500W MC E11 (EVR)
Microlites125-500-45
Canimpex125-500-45

Equipment Used In

BrandModelType
Eurocom Data Eurocom 100 Microfilm
