EVV ANSI Code

EVV ANSI is a T4 lamp with a GY9.5 base operating at 115/120 watts and 18.2 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EVV lamps.

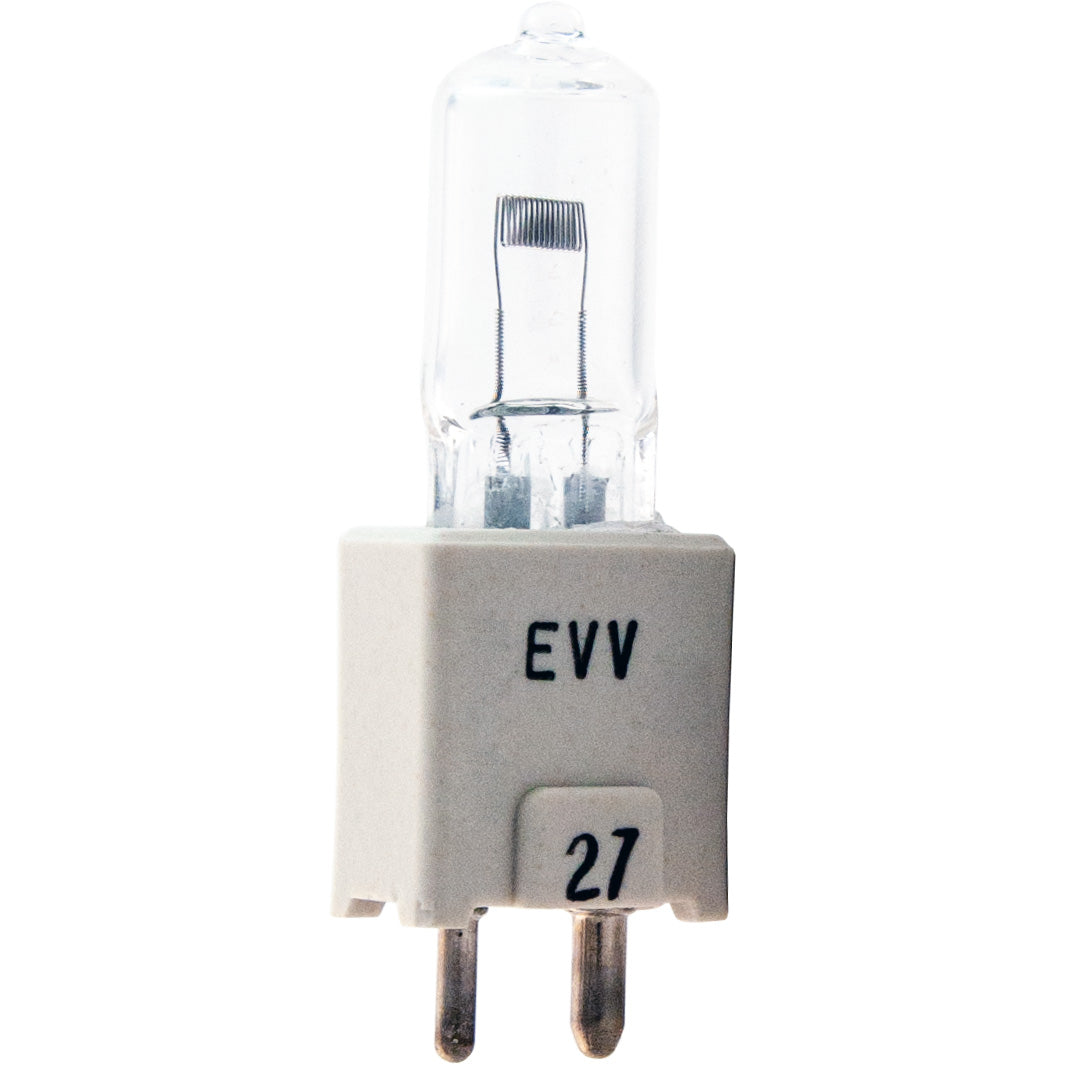

EVV Photograph

EVV

Electrical Specifications

Amps6.6
Volts18.2
Watts115/120

Photometrics

Candlepower1400
Color Temperature3200
Light Center Length (LCL)1 27/50
Lumens3150

Physical Characteristics

BaseGY9.5
Bulb ShapeT4
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 1/2

Operating Characteristics

Burn PositionBase Down
Life Hours500

General Information
Lamp CodeEVV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

GY9.5 Base

GY9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Crouse Hinds20058EVV
General Electric10099EVV
Osram Sylvania58798EVV
Philips6128 / 9230190859EVV
SLI LightingL2505 / 24531EVV
Ushio1003036EVV, JF6.6A-120WB
NARVA58355EVV 6128
HikariA-6343JF 6.6A 115W-B GY9.5 (EVV)
Kahoku Lighting Solutions (KLS)60743-KLSEVV
Genesis LampAL-007-0067EVV
Norman Lamps0524006.6A, 120W, EVV
Osram Sylvania0024531L2505 115W 6.6A EVV
Microlites18-120-29V
Canimpex18-120-29V

EVV may also be listed as:
04613558854 SYLVANIA048777245743 UPC0V-120W-GZ9.5 USHIO1003036 USHIO
10099 GENERAL-ELECTRIC10099-SKU GENERAL-ELECTRIC100W-6.6A-10099-EVV-UNIT-24-T4-GZ9.5-2-PIN-C-6-OVAL-1.54-2.50-3150-500-BD GENERAL-ELECTRIC120-6.6-EVV-3150-C-6-OVAL-6.4X3-3200-64-39-500-GZ9.5-24-M-10099 GENERAL-ELECTRIC
120W-6.6A-EVV-3150-C-6-OVAL-6.4X3-3200-64-39-500-GZ9.5-24-M-10099 GENERAL-ELECTRIC130682 ORBITEC130682-H66128 ORBITEC130682/6.6A/120W ORBITEC
130682/6.6A/120W/GZ9.5 ORBITEC20058 C-H20058 PHILIPS20058C-H HIKARI
308612890 SPECIAL-INDUSTRIAL-LIGHTING308612890/120W/6.6A SPECIAL-INDUSTRIAL-LIGHTING4008321100184 OSRAM4050300657967 OSRAM
58794 OSRAM58798 OSRAM58798-OSRAM HIKARI58798/115W/GY9.5 OSRAM
58798/115W6.6A/GY9.5 OSRAM58798/6.6A/115W OSRAM58798/6.6A/115W/GY9.5 OSRAM58854 OSRAM
58854 SYLVANIA6.6-AMP-115-WATT-GY9.5 HIKARI6.6A-115T4Q-58798-2PPF-EVV6.6A-115T4Q-58798-2PPF-EVV/04613558854 SYLVANIA
6.6A-115T4Q-58798-2PPF-EVV/58854 SYLVANIA6.6A-T4-QCL-2PPF/T4-6.6A-PREFOCUS LAMPTECH6.6A-T5QCL/2-PIN-PP-T4-115V LAMPTECH6.6A-T5QCL/2-PIN-PP-T4-115W LAMPTECH
6.6A/115T4Q/58798/2PPF OSRAM6.6A/115T4Q/58798/2PPF/115W OSRAM6.6A/115T4Q/58798/2PPF/EVV OSRAM6.6A/115T4Q/58798/2PPF/EVV/115W OSRAM
6.6A/115W/T4/Q/2PPF OSRAM6.6A/115W/T4/Q/2PPF/EVV OSRAM6.6A/115W/T4/Q/58798/2PPF OSRAM6.6A/115W/T4/Q/58798/2PPF/EVV OSRAM
6.6A/T4/QCL/2PPF LAMPTECH6.6A/T4Q/CL/2PP6.6A/T4Q/CL/2PP/EVV6.6A/T5QCL LAMPTECH
6.6A115T4QCL/2PPF6.6AMP-115WATT-T4-QUARTZ-CLEAR-GZ9.56.6AMP-115WATT-T4-QUARTZ-CLEAR-GZ9.5-EVV6.6AMP/115WATT/GY9.5
6.6AT4/QCL/2PPF6.6AT5QCL6128/EVV ORBITEC6128/EVV/6.6A/120W ORBITEC
6128/EVV/6.6A/120W/GZ9.5 ORBITEC6343 HIKARI657967 OSRAM844409005354 HIKARI
A-6343 HIKARIEVV ANSIEVV ASAEVV BULB-DIRECT
EVV GENERAL-ELECTRICEVV HIDSIEVV HIKARIEVV INTERLIGHT
EVV LAMPTECHEVV MICROLAMPEVV OSRAMEVV USA
EVV USHIOEVV WESTINGHOUSEEVV-115W/6.6A/115W/GZ9.5 ANSIEVV-120W/6.6A/120W/GZ9.5 ANSI
EVV-6.6A ANSIEVV-6.6A ASAEVV-6.6A GENERAL-ELECTRICEVV-6.6A-115W/6.6A/115W/GZ9.5 ANSI
EVV-6.6A-120WEVV-6.6A-120W ANSIEVV-6.6A-120W ASAEVV-6.6A-120W-GZ9.5-T4-FC6-CLEAR-3150L-3200K-500H-BD-2-1/2MOL-1-27/50LCL-Q-AIRPORT
EVV-6.6A-120W/6.6A/120W/GZ9.5 ANSIEVV-6.6AMP ANSIEVV-6.6AMP ASAEVV-6.6AMP-115WATT-T4-QUARTZ-CLEAR-GZ9.5 USHIO
EVV-DELISTED-120W-6.6AV-GZ9.5 GENERAL-ELECTRICEVV-JF6.6A120WB USHIOEVV-JF6.6A120WB/120W/GZ9.5 USHIOEVV/10099 GENERAL-ELECTRIC
EVV/115W HIKARIEVV/115W/GY9.5 OSRAMEVV/120W ANSIEVV/6.6A/115W ANSI
EVV/6.6A/115W OSRAMEVV/6.6A/115W/GY9.5 OSRAMEVV/6.6A/115W/GZ9.5 ANSIEVV/6.6A/120W/GZ9.5 ANSI
EVV/T4-115W-6.6A-BIPIN-PROFOC LAMPTECHEVV6.6A/115T4Q/CL/2PPF OSRAMH-66128 ORBITECH-66128/130682 ORBITEC
H/6.6A/115W/GY9.5/T13.5MMH/6.6A/115W/GY9.5/T13.5MM/500HH/6.6A/115W/GY9.5/TUBEH/6.6A/115W/GY9.5/TUBE/500H
H/6.6A/115W/GZ9.5/T4/C6/500H/EVV-115WH/6.6A/115W/GZ9.5/T4/CL/500H/EVV-115WH/6.6A/120W/GZ9.5/T4/39MMLCL/62MMMOL/500HH/6.6A/120W/GZ9.5/T4/500H
H/6.6A/120W/GZ9.5/T4/C6/500H/EVV-120WH/6.6A/120W/GZ9.5/T4/CL/500H/EVV-120WH/6.6A/120W/GZ9.5/TUBE/500HH/6.6A/GZ9.5/TUBE
H66128/6.6A/120W ORBITECH66128/6.6A/120W/GZ9.5 ORBITECJC/6.6A/115W/GY9.5JF6.6A-120WB USHIO
JF6.6A-120WB/120W/GZ9.5 USHIOJF6.6A115W/B HIKARIQ/6.6A/115W/T4/2PPFQ/6.6A/T4/2PPF/CL
Q/6.6A/T4/GZ9.5/CLQ6.6A-T4-CLEAR-2-PIN-PREFOCUSQ6.6A-T4CL-2-PIN-PREFOCUSQ6.6A/T4CL/2PPF
QUARTZ-6.6AMP-115WATT-T4-CLEAR-GZ9.5QUARTZ-6.6AMP-115WATT-T4-CLEAR-GZ9.5-EVVQUARTZ-6.6AMP-T4-CLEAR-2-PIN-PREFOCUSS-01003 HIKARI
S010036343-JF6.6A115W/B-6.6-AMP-115-WATT-GY9.5-EVV-58798-20058-844409005354 HIKARIS010036343-JF6.6A115W/B-6.6-AMP-115-WATT-GY9.5-EVV-58798-OSRAM-20058-C-H-844409005354 HIKARISPQ6.6A/115WT4GZ9.5C6SPQ6.6A/115WT4GZ9.5C6-EVV-115W
SPQ6.6A/115WT4GZ9.5CLSPQ6.6A/115WT4GZ9.5CL-EVV-115WSPQ6.6A/120WT4GZ9.5C6SPQ6.6A/120WT4GZ9.5C6-EVV-120W
SPQ6.6A/120WT4GZ9.5CLSPQ6.6A/120WT4GZ9.5CL-EVV-120W
