EWR ANSI Code

EWR ANSI is a T4 lamp with a GY9.5 base operating at 150 watts and 22.7 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EWR lamps.

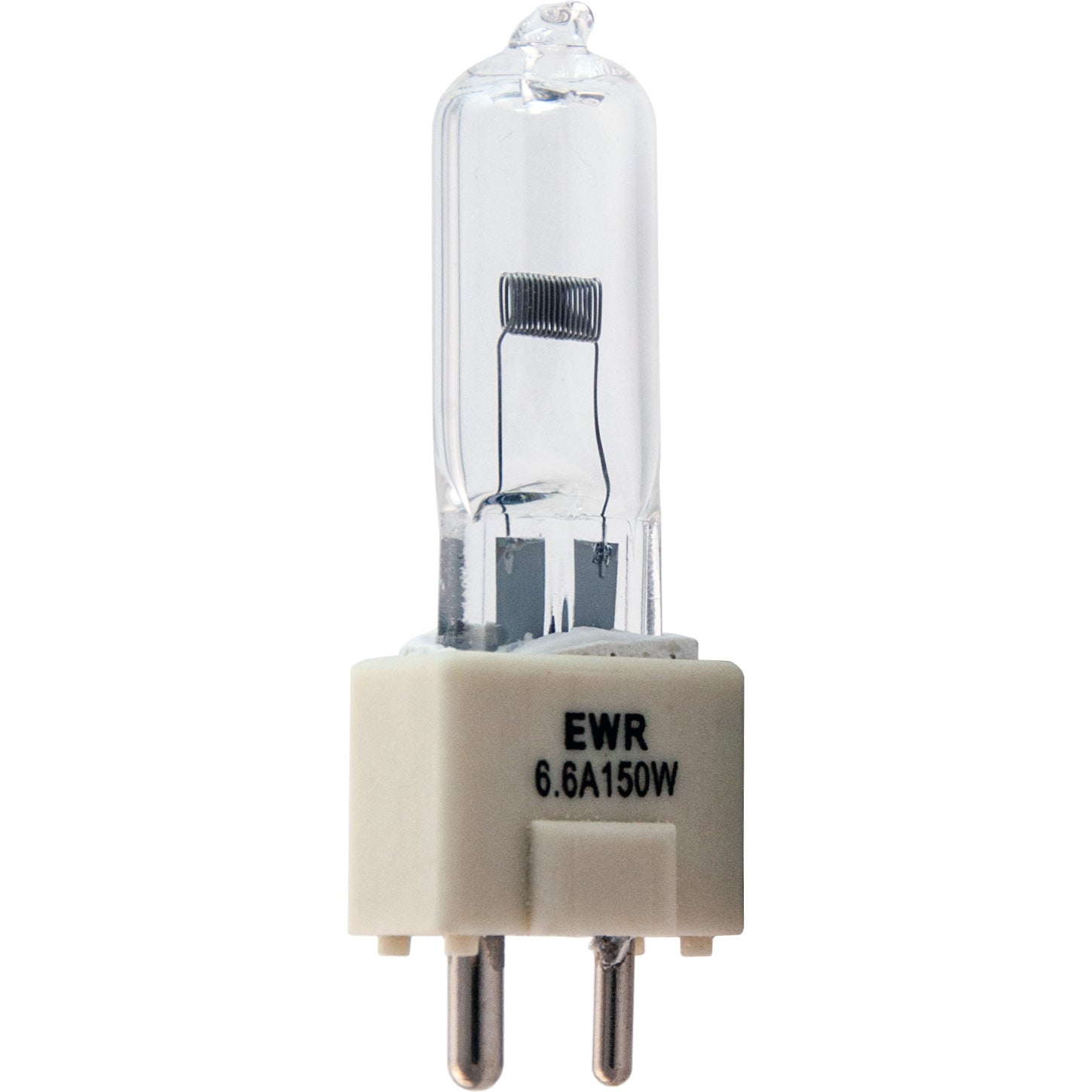

EWR Photograph

EWR

Electrical Specifications

Amps6.6
Volts22.7
Watts150

Photometrics

Candlepower290
Color Temperature3200
Light Center Length (LCL)1 27/50
Lumens4100

Physical Characteristics

BaseGY9.5
Bulb ShapeT4
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 1/2

Operating Characteristics

Burn PositionBase Down
Life Hours500

General Information
Lamp CodeEWR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

GY9.5 Base

GY9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric11427EWR
General ElectricEWR
HikariA-6329JF 6.6A 150W-B GY9.5 (EWR)
Osram Sylvania588556.6A/150T4Q/64354/EWR/DL
Osram Sylvania64354
Philips6292 9238994859
SLI LightingL2502 / 24529
NARVA58365EWR 6292
Kahoku Lighting Solutions (KLS)63077-KLSEWR
Norman Lamps0525426.6A, 150W, EWR
Genesis LampAL-007-0068EWR
Osram Sylvania0024529L2502 150W 6.6A EWR/1
Osram Sylvania0024530L2502 150W 6.6A EWR/2
Microlites22.7-150-29
Canimpex22.7-150-29

EWR may also be listed as:
04613558777 SYLVANIA04613558855 SYLVANIA1000389 USHIO11427 GENERAL-ELECTRIC
11427-SKU GENERAL-ELECTRIC130684 ORBITEC130684-H66371 ORBITEC130684/6.6A/150W ORBITEC
130684/6.6A/150W/GZ9.5 ORBITEC130685 ORBITEC130685-H66292 ORBITEC130685/6.6A/150W ORBITEC
130685/6.6A/150W/GY9.5 ORBITEC150-6.6-EWR-4100-C-6-OVAL-6.4X.4.1-3200-64-39-500-GZ9.5-24-M-11427 GENERAL-ELECTRIC150W-6.6A-11427-EWR-UNIT-24-T4-GZ9.5-2-PIN-C-6-OVAL-1.54-2.50-4100-500-BD GENERAL-ELECTRIC150W-6.6V-EWR-4100-C-6-OVAL-6.4X.4.1-3200-64-39-500-GZ9.5-24-M-11427 GENERAL-ELECTRIC
308629294 SPECIAL-INDUSTRIAL-LIGHTING308914885 SPECIAL-INDUSTRIAL-LIGHTING308914885/150W/6.6A SPECIAL-INDUSTRIAL-LIGHTING4008321100207 OSRAM
4050300660813 OSRAM58777 OSRAM58777 SYLVANIA58855 OSRAM
58855 SYLVANIA6.6-AMP-150-WATT-GZ9.5 HIKARI6.6A-150T4Q-64354-EWR-DL6.6A-150T4Q-64354-EWR-DL/04613558777 SYLVANIA
6.6A-150T4Q-64354-EWR-DL/04613558855 SYLVANIA6.6A-150T4Q-64354-EWR-DL/58777 SYLVANIA6.6A-150T4Q-64354-EWR-DL/58855 SYLVANIA6.6A/150T4Q/64354/DL OSRAM
6.6A/150T4Q/64354/DL/150W OSRAM6.6A/150T4Q/64354/EWR/DL OSRAM6.6A/150T4Q/DL OSRAM6.6A/150T4Q/DL/150W OSRAM
6.6A/150W/T4/Q/64354/DL OSRAM6.6A/150W/T4/Q/64354/EWR/DL OSRAM6.6A/150W/T4/Q/DL OSRAM6.6A/150W/T4/Q/DL/150W OSRAM
6.6AMP/150WATT/GZ9.56292 ORBITEC6292 PHILIPS6292/6.6A/150W ORBITEC
6292/6.6A/150W PHILIPS6292/6.6A/150W/GY9.5 ORBITEC6292/6.6A/150W/GY9.5 PHILIPS6329 HIKARI
6371/EWR-1 ORBITEC6371/EWR-1/6.6A/150W ORBITEC6371/EWR-1/6.6A/150W/GZ9.5 ORBITEC64354 OSRAM
64354/150W/GY9.5 OSRAM64354/6.6A/150W OSRAM64354/6.6A/150W/6.6A/GY9.5 OSRAM64354/6.6A/150W/GY9.5 OSRAM
660813 OSRAM844409005422 HIKARIA-6329 HIKARIEW-R-150W-6.6AV-GZ9.5 GENERAL-ELECTRIC
EWR ANSIEWR ASAEWR BULB-DIRECTEWR GENERAL-ELECTRIC
EWR HIKARIEWR INTERLIGHTEWR MICROLAMPEWR OSRAM
EWR USAEWR USHIOEWR WESTINGHOUSEEWR-6.6A ANSI
EWR-6.6A ASAEWR-6.6A GENERAL-ELECTRICEWR-6.6A-150WEWR-6.6A-150W ANSI
EWR-6.6A-150W ASAEWR-6.6A-150W-GZ9.5-T4-FC6-CLEAR-4100L-3200K-500H-BD-2-1/2MOL-1-27/50LCL-Q-AIRPORTEWR-6.6A/6.6A/150W/GZ9.5 ANSIEWR-6.6AMP ANSI
EWR-6.6AMP ASAEWR/11427 GENERAL-ELECTRICEWR/6.6A/150W OSRAMEWR/6.6A/150W/GZ9.5 ANSI
EWR/6.6AV/150W/GZ9.5/500HH-66292 ORBITECH-66292/130685 ORBITECH-66371 ORBITEC
H-66371/130684 ORBITECH/6.6A/150W/GY9.5/T13.5MMH/6.6A/150W/GY9.5/T13.5MM/750HH/6.6A/150W/GY9.5/T13.5MM/C6
H/6.6A/150W/GY9.5/T13.5MM/C6/750HH/6.6A/150W/GY9.5/T13.5MM/CC6H/6.6A/150W/GY9.5/T13.5MM/CC6/750HH/6.6A/150W/GY9.5/T4.75
H/6.6A/150W/GY9.5/T4.75/39.1MMLCL/65MMMOLH/6.6A/150W/GY9.5/T4.75/39.1MMLCL/65MMMOL/750HH/6.6A/150W/GY9.5/TUBEH/6.6A/150W/GY9.5/TUBE/750H
H/6.6A/150W/GY9.5/TUBE/C6H/6.6A/150W/GY9.5/TUBE/C6/750HH/6.6A/150W/GY9.5/TUBE/CC6H/6.6A/150W/GY9.5/TUBE/CC6/750H
H/6.6A/150W/GZ9.5/T13.5MMH/6.6A/150W/GZ9.5/T13.5MM/750HH/6.6A/150W/GZ9.5/T13.5MM/C6H/6.6A/150W/GZ9.5/T13.5MM/C6/750H
H/6.6A/150W/GZ9.5/T13.5MM/CC6H/6.6A/150W/GZ9.5/T13.5MM/CC6/750HH/6.6A/150W/GZ9.5/T4H/6.6A/150W/GZ9.5/T4/39MMLCL/57MMMOL
H/6.6A/150W/GZ9.5/T4/39MMLCL/57MMMOL/1000HH/6.6A/150W/GZ9.5/T4/CC6/500H/EWRH/6.6A/150W/GZ9.5/T4/CL/500H/EWRH/6.6A/150W/GZ9.5/TUBE
H/6.6A/150W/GZ9.5/TUBE/750HH/6.6A/150W/GZ9.5/TUBE/C6H/6.6A/150W/GZ9.5/TUBE/C6/750HH/6.6A/150W/GZ9.5/TUBE/CC6
H/6.6A/150W/GZ9.5/TUBE/CC6/750HH66292/6.6A/150W ORBITECH66292/6.6A/150W/GY9.5 ORBITECH66371/6.6A/150W ORBITEC
H66371/6.6A/150W/GZ9.5 ORBITECJC/6.6A/150W/GY9.5JC/6.6A/150W/GY9.5/C6JC/6.6A/150W/GY9.5/CC6
JC/6.6A/150W/GZ9.5JC/6.6A/150W/GZ9.5/C6JC/6.6A/150W/GZ9.5/CC6JF6.6A-150W USHIO
JF6.6A150W/B HIKARIQ/6.6A/150W/T4/DLQ150T4 MICROLAMPQ150T4/CL6.6A MICROLAMP
S-01004 HIKARIS-01005 HIKARIS010056329-JF6.6A150W/B-6.6-AMP-150-WATT-GZ9.5-EWR-844409005422 HIKARISPQ6.6A/150WT4GZ9.5CC6
SPQ6.6A/150WT4GZ9.5CC6-EWRSPQ6.6A/150WT4GZ9.5CCLSPQ6.6A/150WT4GZ9.5CCL-EWRSPQ6.6A/150WT4GZ9.5CL
SPQ6.6A/150WT4GZ9.5CL-EWR
