EXK ANSI Code

EXK ANSI is a MR16CD lamp with a GX5.3 base operating at 50 watts and 12 volts. It has a color temperature of 3050 Kelvin. The beam angle is 30°. It has a Open front finish. The average rated life is 4000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EXK lamps.

Electrical Specifications

Amps4.17
Volts12
Watts50

Photometrics

Beam Angle30°
Beam SpreadNarrow Flood
Candlepower2,250cd
Color Temperature3050
Lumens895

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16CD
FilamentC-6 / C-8
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionAny
Life Hours4000

General Information
Lamp CodeEXK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

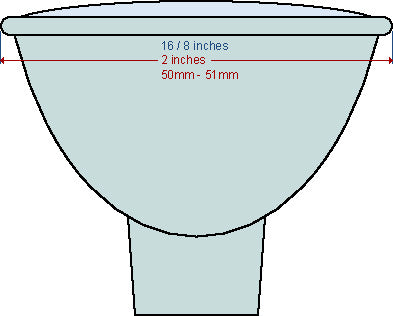

MR16CD Shape

MR16CD
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Grainger1K347
Microlites12-050-23LR/G
Canimpex12-050-23LR/G

Equipment Used In

BrandModelType
Altman Lighting Zip Strip Stage / Studio
Elmo ELMOSLIDE

EXK may also be listed as:
12159 STANDARDPRO16634 GENERAL-ELECTRIC20834 GENERAL-ELECTRIC50WATT-MR16-QUARTZ-C-NFL
50WATT-MR16-QUARTZ-C-NFL-306954912159169549121591UPC STANDARDPROBW-EXK
ENL/GL ANSIEXK ANSIEXK ASAEXK INTERLIGHT
EXK STANDARDPROEXK-12V ANSIEXK-12V ASAEXK-12V-50W
EXK-12V-50W ANSIEXK-12V-50W ASAEXK-12V-50W-GU5.3-MR-16-C-6/C-8-OPEN-FRONT-2250CD-3050K-4000H-ANY-1-3/4MOL-Q-DISPLAY-NFL-32-DEG.-DICHROIC-REFLECTOR-ALSO-GX5.3-CAPEXK-12V-50W-GU5.3-MR16-C6/C8-OPEN-FRONT-2250CD-3050K-4000H-ANY-1-3/4MOL-Q-DISPLAY-NFL32DEG-DICHROIC-REFLECTOR-ALSO-GX5.3-CAP
EXK-12V-CC/12V/50W/GX5.3/MR16D ANSIEXK-12V-CG/12V/50W/GX5.3/MR16CD ANSIEXK-12V/12V/50W/GX5.3/MR16D ANSIEXK-12VOLT ANSI
EXK-12VOLT ASAEXK-C ANSIEXK-C ASAEXK-C-12V ANSI
EXK-C-12V ASAEXK-C-12V-50WEXK-C-12VOLT ANSIEXK-C-12VOLT ASA
EXK-CC/12V/50W/GX5.3/MR16D ANSIEXK-CG/12V/50W/GX5.3/MR16CD ANSIEXK-CLEAREXK-FG ANSI
EXK-FG ASAEXK-FG-12V ANSIEXK-FG-12V ASAEXK-FG-12V-50W
EXK-FG-12VOLT ANSIEXK-FG-12VOLT ASAEXK/12V/50W/C ANSIEXK/12V/50W/FG ANSI
EXK/12V/50W/FRONT-GLASS ANSIEXK/12V/50W/GU5.3/MR16CD ANSIEXK/12V/50W/GX5.3 ANSIEXK/12V/50W/GX5.3/CC ANSI
EXK/12V/50W/GX5.3/FG ANSIEXK/12V/50W/GX5.3/MR16CD ANSIEXK/12V/50W/GX5.3/MR16D ANSIEXK/12V/50W/GX5.3/MR16D/CC ANSI
EXK/C BULB-DIRECTEXK/C-12V-50W ANSIEXK/C-12V-50W ASAEXK/CC MICROLAMP
EXK/FG-12V-50W ANSIEXK/FG-12V-50W ASAEXK/GL ANSIH/12V/50W/GX5.3/MR16CD/3000H/EXK-CG
H/12V/50W/GX5.3/MR16D/4000H/EXKH/12V/50W/GX5.3/MR16D/4000H/EXK-CCH/12V/50W/GX5.3/MR16D/NFL/4000HMR-16/50W/12V/2-PIN/GX5.3/EXK STANDARDPRO
Q50-MR16C-NFL30-EXK-12V-50W GENERAL-ELECTRICQ50MR16/C/NFL30 MICROLAMPQ50MR16C/NFL30 GENERAL-ELECTRICQ50MR16C/NFL30/12V GENERAL-ELECTRIC
Q50MRC16NFL-12VQ50MRC16NFL30-12VQUARTZ-50WATT-MR16-NFL-1QUARTZ-50WATT-MR16-NFL-1-12VOLT
QUARTZ-50WATT-MR16-NFL-1-FG GENERAL-ELECTRICQUARTZ-50WATT-MR16-NFL-1-FG-12VOLT GENERAL-ELECTRICQUARTZ-50WATT-MR16-NFL30-DEGREES-FG-12VOLTQUARTZ-50WATT-MR16C-NFL30-DEGREES
QUARTZ-50WATT-MR16C-NFL32-DEGREESSPQ50MR16CDGX5.312V-EXK-CGSPQ50MR16DGX5.312V-EXKSPQ50MR16DGX5.312V-EXK-CC
