EXX ANSI Code

EXX ANSI is a MR16D lamp with a GY5.3 base operating at 250 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Dichroic finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EXX lamps.

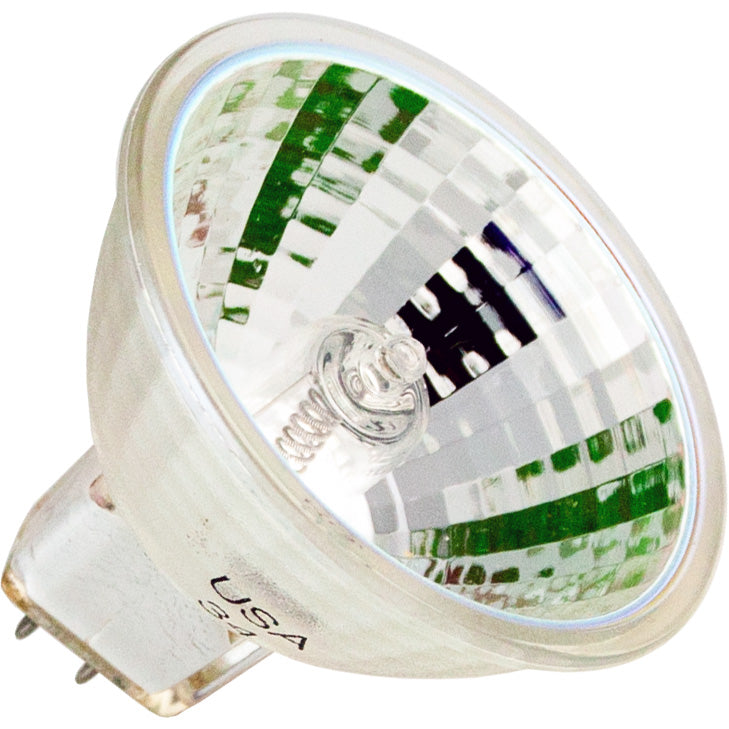

EXX Photograph

EXX

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Beam SpreadMedium Flood
Candlepower6,750cp
Color Temperature3300

Physical Characteristics

BaseGY5.3
Bulb ShapeMR16D
FilamentCC-8
FinishDichroic
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionAny
Life Hours25

General Information
Lamp CodeEXX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR16D Shape

MR16D
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

GY5.3 Base

GY5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsEXXEXX
Standard Products12104MR-16/200W/24V/2-PIN/GX5.3/EKX
Microlites120-250-33XR
Microlites82-250-33XR
Canimpex120-250-33XR
Canimpex82-250-33XR

EXX may also be listed as:
02910 EIKO02910 UPC02910 WIKO031293029102 EIKO
048777127582 UPC1000422 BLV1000422 USHIO11750 GENERAL-ELECTRIC
131246 NARVA131246 ORBITEC131246-H63219-GY5.3-50X45-120V-EXX-250W ORBITEC131246/120V/250W ORBITEC
131246/120V/250W/GY5.3 ORBITEC63219761135 BULBRITEEXX ANSI
EXX ASAEXX BULB-DIRECTEXX BULBRITEEXX EIKO
EXX GENERAL-ELECTRICEXX INTERLIGHTEXX KONDOEXX LAMPTECH
EXX MICROLAMPEXX ORBITECEXX USHIOEXX WIKO
EXX-120 VOLT ANSIEXX-120 VOLT ASAEXX-120V ANSIEXX-120V ASA
EXX-120V-250WEXX-120V-250W ANSIEXX-120V-250W ASAEXX-120V-250W-GY5.3 USHIO
EXX-120V-250W-GY5.3-MR16-CC8-OPEN-FRONT-6750CP-3300K-25H-ANY-1-3/4MOL-Q-SLIDE-PROJECTOR-DICHROIC-REFLECTOR-57DEG-BEAM-ANGLEEXX-120V/120V/250W/GY5.3/MR16D ANSIEXX-250W-120V-GY5.3 USHIOEXX-JCR120V250W-50.67MMDIA-44.5MMMOL-STIPPLED-CC-8-298.5MMWD-3300K-75H-BD-HOR-1000422 BLV
EXX-JCR120V250W-50.67MMDIA-44.5MMMOL-STIPPLED-CC-8-298.5MMWD-3300K-75H-BD-HOR-1000422 USHIOEXX/120V/250W/GY5.3 ANSIEXX/120V/250W/GY5.3/MR16D ANSIEXX/GY5.3 USHIO
EXX/MR-16-120V-250W LAMPTECHFOS1 COOL-LIGHTFOS1-COOLLUXGY5.3-50X45-120V-250W-EXX/H63219/131246 ORBITEC
GY5.3-50X45-120V-EXX-250W ORBITECGY5.3-50X45MM-120V-250W-EXX/H63219/131246 ORBITECGY5.3-MR16-120V-250W-EXX-JCR120V-250W-50.67MMDIA-44.5MMMOL-STIPPLED-CC-8-298.5MMWD-3300K-75H-BD-HOR-1000422 BLVGY5.3-MR16-120V-250W-EXX-JCR120V-250W-50.67MMDIA-44.5MMMOL-STIPPLED-CC-8-298.5MMWD-3300K-75H-BD-HOR-1000422 USHIO
H-63219 ORBITECH/120V/250W/GY5.3/MR16D/25H/131246H/120V/250W/GY5.3/MR16D/CC8/25HH/120V/250W/GY5.3/MR16D/CC8/25H/EXX
H/120V/250W/GY5.3/MR16D/SP/25HH/120V/250W/GY5.3/MRD16/SPH63219-GY5.3-50X45-120V-EXX-250W ORBITECH63219/120V/250W ORBITEC
H63219/120V/250W/GY5.3 ORBITECJCR-120V250WJCR120V-250W/120V/250W/GY5.3/EXX USHIOJCR120V-250W/AX/298.5MMWD/75H USHIO
JCR120V-250W/EXX USHIOJCR120V250W-GY5.3/EXX USHIOMR-16-FACETED-DICHROIC-REFLECTOR-250-120-EXX-CAMERA-LIGHT-3300-CC-8-44.45-50.67-25-GY5.3-20-MV-11750-2 GENERAL-ELECTRICMR-16-FACETED-DICHROIC-REFLECTOR-250W-120V-EXX-CAMERA-LIGHT-3300-CC-8-44.45-50.67-25-GY5.3-20-MV-11750-2 GENERAL-ELECTRIC
Q/250W/MR16/GY5.3/120V/131246 NARVASPQ250MR16DGY5.3AX120V-EXXSPQ250MR16DGY5.3CC8120V-EXXVIDEO-42I WIKO
