EYB ANSI Code

EYB ANSI is a T3.5 lamp with a G5.3 base operating at 360 watts and 82 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EYB lamps.

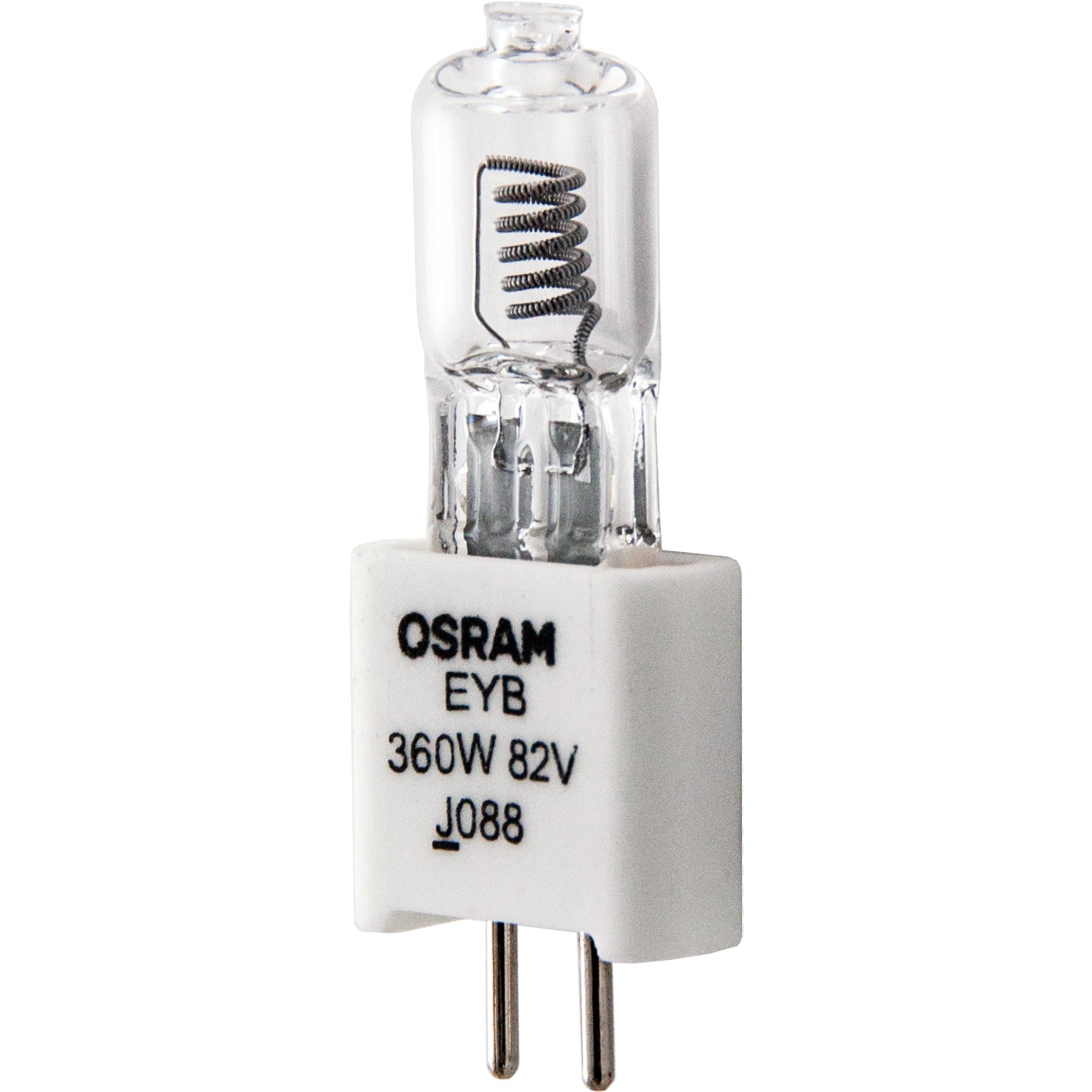

EYB Photograph

EYB

Electrical Specifications

Amps4.19
Volts82
Watts360

Photometrics

Candlepower800
Color Temperature3300
Light Center Length (LCL)1 1/4
Lumens10000

Physical Characteristics

BaseG5.3
Bulb ShapeT3.5
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 1/4

Operating Characteristics

Burn PositionBDTH
Life Hours75

General Information
Lamp CodeEYB
Code TypeANSI
Specification ReferenceANSI-SR24F2002
VariantsEYB-5

T3.5 Shape

T3.5
Diameter Designation3.5/8"
Glass Diameter 7/16" (0.4375")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite761140EYB
Eiko02950EYB
General Electric12696EYB
Grainger1E656
Osram Sylvania54446EYB 64655
Philips232579EYB 7748 82V 360W 24PK
Sunlite70190EYB
Ushio1000442EYB, JCD82V-360W
Kahoku Lighting Solutions (KLS)62072-KLSEYB Japan
Green Energy Lighting (GELCO)62072-GELEYB
Norman LampsEYBEYB
Standard Products12169T-3.5/360W/82V/G5.3/EYB
Rexim, LLCRSE-57
Microlites82-360-23
Microlites86-360-23
Microlites87-360-23
Canimpex82-360-23
Canimpex86-360-23
Canimpex87-360-23

Equipment Used In

BrandModelType
3M 4405
3M 4407
3M 4415
3M 4406
3M 4410
Apollo 15014 Horizon
Apollo VS4300C Toplite
Apollo 15214 Horizon
Apollo VS4200C Toplite
Apollo VS4100C Toplite
Apollo A1-1004
Apollo 15210 Horizon
Apollo Quantum
Apollo 15009 Horizon
Apollo Horizon
Apollo A1-1005
Apollo 15002 Horizon
Apollo Horizon 2
Apollo AVP-300 Video Projector
Apollo 15010 Horizon
Apollo 15035 Horizon
Apollo 15000 Horizon
Bell and Howell Specialist 3880
Bell and Howell Specialist 3870
Bell and Howell Specialist Travel Master 11
Bell and Howell 6728-82
Bell and Howell Specialist 3680
Bell and Howell Still Projector 3860
Bell and Howell Specialist 1707-L
Bell and Howell Specialist 3890
Bell and Howell Specialist 3860
Bell and Howell Travel Master 2
Beseler Photo Marketing (Charles Beseler) Portable Executive Traveler
Beseler Photo Marketing (Charles Beseler) Portable Executive Traveler PET-100
Buhl Attache 1-G-10012-LCD-11
Buhl 90/XT
Buhl 90/14-EDUC
Buhl 104-ED
Buhl 90/14-EDC
Buhl Educator 90-14
Buhl Educator
Buhl Escort L.C.D.
Buhl 90/14-ED
Buhl 90 Series XT
Buhl 90-14EDUC
Buhl Educator 90
Buhl Escort Model 100 (new)
Buhl 104-EDC
Da-Lite (Bessler) G-200
Dukane SunSplash 2100 Series
Dukane Sunsplash SP-2234 Projector
Dukane 28A822
Dukane Sunsplash SP-2233 Projector
Dukane SunSplash 2200 Series
Dukane Model 602
Dukane 28A633
Dukane Sunsplash SP-3134 Projector
Dukane Model 622A
Dukane Model 611
Dukane EP1800
Dukane 622-A Projector
Dukane Sunsplash SP-2225 Projector
Dukane Sunsplash SP-2227 Projector
Dukane 28A632
Dukane 28A611
Dukane Model 632A
Dukane 28A622
Dukane 28A622A Projector
Dukane 28A632A Projector
Dukane Model 633
Dukane Sunsplash SP-2226 Projector
EIKI 4410
EIKI OHP-3870
EIKI Specialist
EIKI OHP-3100P
EIKI OHP 3100P
EIKI OHP-3200
EIKI OHP-3850
EIKI 3880
EIKI 3100P
EIKI 4405
EIKI 4407
EIKI 3850
EIKI 3860
EIKI 3870
EIKI OHP-3800
EIKI 3890
EIKI OHP-3860
EIKI 3800
Elmo HP-L11
Elmo HP-L11 QLC
Kaiser Camlight 250
Leitz 037-723
Liesegang 636
Sinon HT301
Sinon HT201
Sinon HM26F
Woodlyn 31270 Medical
Woodlyn POC Classic Medical

EYB may also be listed as:
02950 EIKO02950 UPC02950 WIKO02960 EIKO
02960 UPC02960 WIKO031293029508 EIKO031293029607 EIKO
04613554446 SYLVANIA04613554448 SYLVANIA04613554455 SYLVANIA048777128848 UPC
048777128916 UPC0859 WESTINGHOUSE1000442 USHIO1000443 USHIO
12696 GENERAL-ELECTRIC1440 BLV14531 PHILIPS14531-EYB-82-360-G5.3-1CT/24
14531-EYB-82-360-G5.3-1CT/24 PHILIPS14531EYB14531EYB PHILIPS145763 PHILIPS
19322 GENERAL-ELECTRIC23257-9 PHILIPS232579/EYB PHILIPS23972-3 PHILIPS
239723/EYB-5 PHILIPS244-1028 ALLIED27356 NANTONG-DONAR27400 NANTONG-DONAR
31270 APOLLO3129302950 WIKO3129302960 WIKO42463130 PHILIPS
42463130-EOC PHILIPS4400 3M4400-3M IAVI4400-SERIES 3M
4400-SERIES-3M IAVI456-186 DUKANE54446 NAED54446 OSRAM
54446 SYLVANIA54446-1 SYLVANIA54446/EYB SYLVANIA54448 OSRAM
54448 SYLVANIA54448/EYB-5 SYLVANIA54455 OSRAM54455 SYLVANIA
61 APOLLO69549121690761140 BULBRITE78-8096-5725-3 3M
82/360W/G5.383851 IWASAKI9240-415-28800 PHILIPS9247-951-29500 PHILIPS
9247-951-35500 PHILIPS93527 OSRAMAI-1005 APOLLOAV-712260-S-BH
AV712260S BELL-HOWELLBW-EYBEYB 3MEYB ANSI
EYB ASAEYB BULB-DIRECTEYB BULBRITEEYB EIKO
EYB GENERAL-ELECTRICEYB HALCOEYB HIKARIEYB INTERLIGHT
EYB IWASAKIEYB KONDOEYB LAMPTECHEYB MICROLAMP
EYB NANTONG-DONAREYB OSRAMEYB PHILIPSEYB SYLVANIA
EYB USHIOEYB WESTINGHOUSEEYB WIKOEYB-360W-82 ANSI
EYB-360W-82 ASAEYB-360W-82V ANSIEYB-360W-82V ASAEYB-360W-82V-G5.3 USHIO
EYB-360WATT-82VOLT ANSIEYB-360WATT-82VOLT ASAEYB-3M IAVIEYB-5 ANSI
EYB-5 ASAEYB-5 BULB-DIRECTEYB-5 EIKOEYB-5 GENERAL-ELECTRIC
EYB-5 INTERLIGHTEYB-5 LAMPTECHEYB-5 MICROLAMPEYB-5 NANTONG-DONAR
EYB-5 OSRAMEYB-5 PHILIPSEYB-5 SYLVANIAEYB-5 USHIO
EYB-5 WIKOEYB-5-UNIT-86V-360W GENERAL-ELECTRICEYB-5/85V/360W OSRAMEYB-5/86V-360W LAMPTECH
EYB-5/86V/360W/G5.3 ANSIEYB-5/UNIT GENERAL-ELECTRICEYB-7 ANSIEYB-7 ASA
EYB-7 EIKOEYB-7 OSRAMEYB-7/87.5V/360W/G5.3 ANSIEYB-7/87V/360W OSRAM
EYB-76 APOLLOEYB-82 ANSIEYB-82 ASAEYB-82V ANSI
EYB-82V ASAEYB-82V-360WEYB-82V-360W ANSIEYB-82V-360W ASA
EYB-82V-360W GENERAL-ELECTRICEYB-82V-360W-24PK PHILIPSEYB-82V-360W-G5.3 USHIOEYB-82V-360W-G5.3-T3-CC8-CLEAR-10000L-3300K-75H-BDTH-2-1/4MOL-1-1/4LCL-Q-PROJECTOR/MICROFILM
EYB-82V/04613554446 SYLVANIAEYB-82V/360W-G5.3EYB-82V/54446 SYLVANIAEYB-82V/82V/360W/G5.3 ANSI
EYB-82V36WEYB-82VOLT ANSIEYB-82VOLT ASAEYB-86V ANSI
EYB-86V ASAEYB-86V-360W ANSIEYB-86V-360W ASAEYB-86V/86V/360W/G5.3 ANSI
EYB-86VOLT ANSIEYB-86VOLT ASAEYB-87.5 BULB-DIRECTEYB-87.5 INTERLIGHT
EYB-87.5 OSRAMEYB-87.5V ANSIEYB-87.5V ASAEYB-87.5V-360W ANSI
EYB-87.5V-360W ASAEYB-87.5V/87.5V/360W/G5.3 ANSIEYB-87.5VOLT ANSIEYB-87.5VOLT ASA
EYB-GE LAMPTECHEYB-GE/T3-1-2-82V-360W-MIN-BIPIN LAMPTECHEYB-LAMP-FOR-4400 3MEYB-LONG-LIFE
EYB-OSRAM LAMPTECHEYB-OSRAM/PROJECTION-LAMP LAMPTECHEYB/5 HALCOEYB/5/T3.5/G5.3/360W/86V/1/10/150H/CC-8/10000L/3300K/BDTH-BURN
EYB/82V/360W OSRAMEYB/82V/360W/G5.3 ANSIEYB/85V/360W OSRAMEYB/86V/360W/G5.3 ANSI
EYB/87.5V/360W/G5.3 ANSIEYB/87V/360W OSRAMEYB/G5.3 USHIOEYB/T3-1-2-82V-360W-MINI-2PIN LAMPTECH
EYB/T3.5/G5.3/360W/82V/1/10/75H/CC-8/10000L/3300K/BDTH-BURNEYB/UNIT GENERAL-ELECTRICEYB360-82 ANSIEYB360-82 ASA
EYB360-82V ANSIEYB360-82V ASAEYB5 HIDSIEYB5-360W-86V-G5.3 USHIO
EYB5-86VEYB5-86V-360WEYB5-86V-360W ANSIEYB5-86V-360W-G5.3 USHIO
EYB5-86V-360W-G5.3-T3-CC8-CLEAR-3200K-75H-BDTH-2-1/4MOL-1-1/4LCL-Q-PROJECTOR/MICROFILMEYB5-86V/04613554448 SYLVANIAEYB5-86V/54448 SYLVANIAEYB5/G5.3 USHIO
EYB7-88VEYB7-88V/04613554455 SYLVANIAEYB7-88V/54455 SYLVANIAEYB82V
EYB82V36W-SPECTROEYB86VEYBLAMPFOR4400-SERIES 3MEYBLAMPFOR4400SERIES-3M IAVI
H/82V/360W/G5.3/CAPSULE/3300KH/82V/360W/G5.3/CAPSULE/75HH/82V/360W/G5.3/T11.5MM/CC8/75HH/82V/360W/G5.3/T3.5
H/82V/360W/G5.3/T3.5/75HH/82V/360W/G5.3/T3.5/75H/EYBH/82V/360W/G5.3/T3.5/75H/EYB-82VH/82V/360W/G5.3/T5/CC8/75H
H/82V/360W/G5.3/T5/CC8/75H/EYBH/82V/360W/G5.3/TUBE/CC8/75HH/86V/360W/G5.3/CAPSULE/3300KH/86V/360W/G5.3/CAPSULE/75H
H/86V/360W/G5.3/T3.5/75HH/86V/360W/G5.3/T3.5/75H/EYB-5H/86V/360W/G5.3/T3.5/75H/EYB-86VH/86V/360W/G5.3/T5/CC8/75H
H/86V/360W/G5.3/T5/CC8/75H/EYB-5H/87.5V/360W/G5.3/T5/CC8/75HH/87.5V/360W/G5.3/T5/CC8/75H/EYB-7HA6010 3M
HA6010-24 3MHA6010-24-3M IAVIHA6010-3M IAVIHA6010-R 3M
HA6010-R-3M IAVIHA6010-R-EYBLAMPFOR4400SERIES 3MJC82V360WJC82V36OW NANTONG-DONAR
JCD-82V-360 IWASAKIJCD-82V-360-EYB IWASAKIJCD-82V-360W IWASAKIJCD-82V-360W-EYB IWASAKI
JCD-82VOLT-360WATT IWASAKIJCD-82VOLT-360WATT-EYB IWASAKIJCD/82V/360WJCD/82V/360W/G5.3
JCD360W/A1 IWASAKIJCD360WA1-EYB IWASAKIJCD82-360 IWASAKIJCD82-360EYB IWASAKI
JCD82-360W IWASAKIJCD82-360WEYB IWASAKIJCD82V-360W USHIOJCD82V-360W/EYB USHIO
JCD82V-360W/G5.3/AX/75H USHIOJCD82V360W-CC8-75HR USHIOJCD82V360W-CC8-75HR/82V/360W/G5.3 USHIOJCD82V360W-CC8-75HR/82V/360W/G5.3/EYB USHIO
JCD82V360W-CC8-75HR/EYB USHIOJCD82V360W-G5.3 USHIOJCD86V-360WS USHIOJCD86V-360WS/EYB5 USHIO
JCD86V-360WS/G5.3/AX/75H USHIOJCD86V360WS-CC8-75HR USHIOJCD86V360WS-CC8-75HR/86V/360W/G5.3 USHIOJCD86V360WS-CC8-75HR/86V/360W/G5.3/EYB-5 USHIO
JCD86V360WS-CC8-75HR/EYB-5 USHIOJCD86V360WS-G5.3 USHIOS-03504 HIKARISPQ360T5G5.3AX-82V
SPQ360T5G5.3AX-86VSPQ360T5G5.3AX-87.5VSPQ360T5G5.3AX82V-EYBSPQ360T5G5.3AX86V-EYB-5
SPQ360T5G5.3AX87.5V-EYB-7SPQ360T5G5.3CC8-82VSPQ360T5G5.3CC8-86VSPQ360T5G5.3CC8-87.5V
SPQ360T5G5.3CC882V-EYBSPQ360T5G5.3CC886V-EYB-5SPQ360T5G5.3CC887.5V-EYB-7WO-859
