EYR ANSI Code

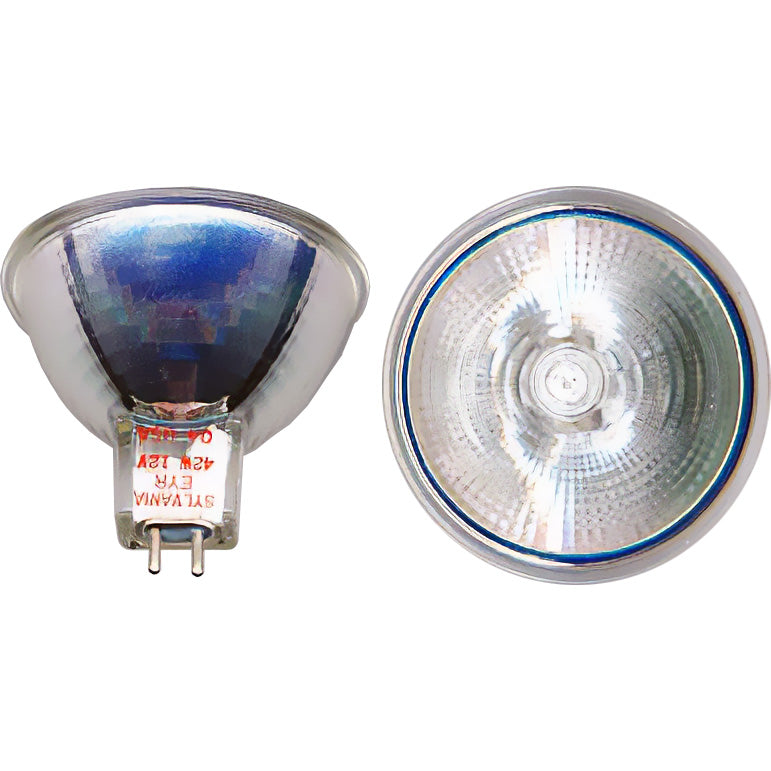

EYR ANSI is a MR16D lamp with a GU5.3 base operating at 42 watts and 12 volts. It has a color temperature of 3025 Kelvin. The beam angle is 12°. It has a Open front finish. The average rated life is 2500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EYR lamps.

Electrical Specifications

Amps3.5
Volts12
Watts42

Photometrics

Beam Angle12°
Beam SpreadNarrow Spot
Candlepower7,075cp
Color Temperature3025
Lumens7080

Physical Characteristics

BaseGU5.3
Bulb ShapeMR16D
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionAny
Life Hours2500

General Information
Lamp CodeEYR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR16D Shape

MR16D
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GU5.3 Base

GU5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EYE (Iwasaki)JR140142MR16/12°
EYE (Iwasaki)JR145142MR16CG/12°
Crompton Lighting582050EYR
Microlites12-042-23R
Microlites12-042-27R
Canimpex12-042-23R
Canimpex12-042-27R

Equipment Used In

BrandModelType
Altman Lighting Zip Strip Stage / Studio
