EYT ANSI Code

EYT ANSI is a T4 lamp with a E11 base operating at 750 watts and 120 volts. It has a color temperature of 3050 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EYT lamps.

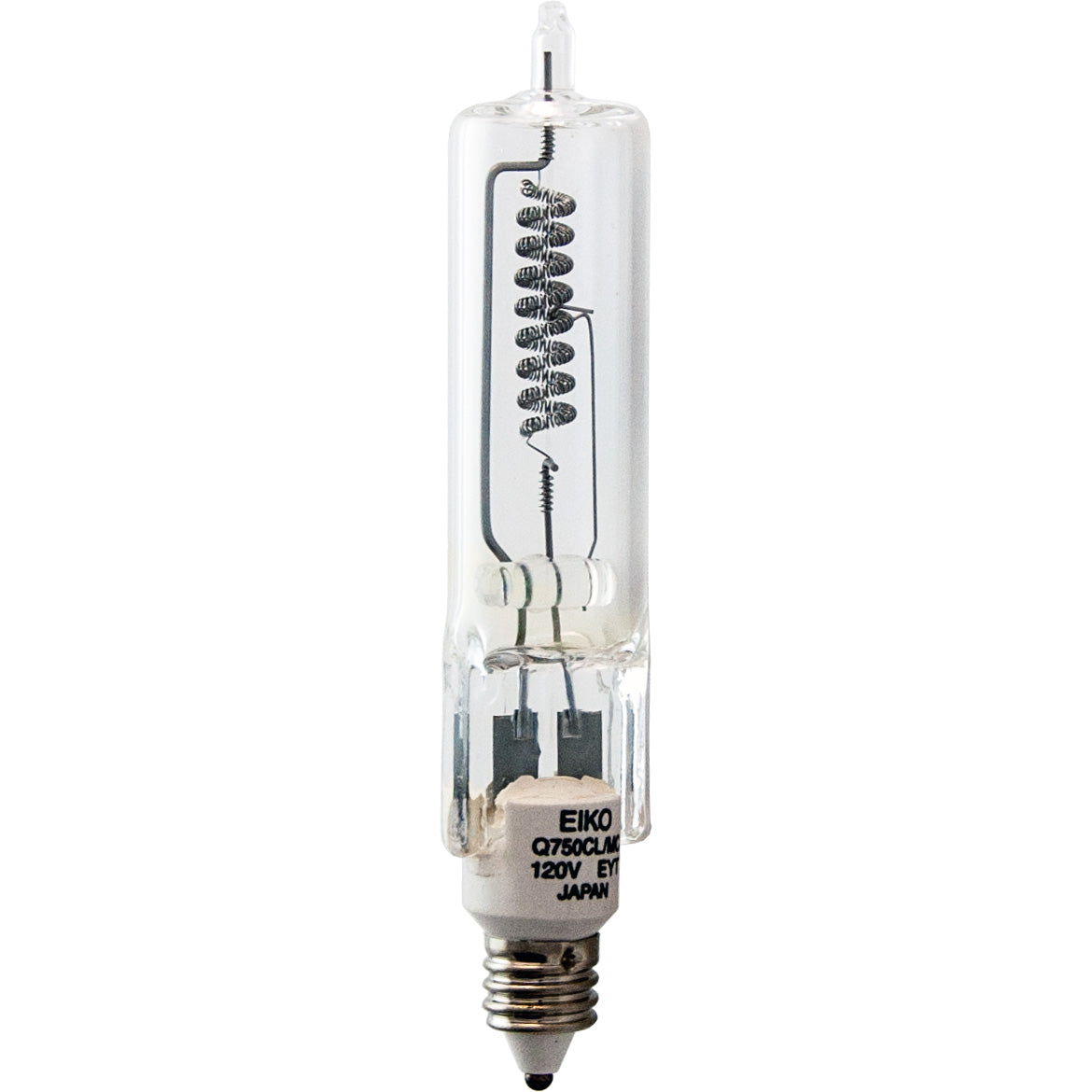

EYT Photograph

EYT

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Candlepower1500
Color Temperature3050
Light Center Length (LCL)2
Lumens18500

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeEYT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko15286EYT
Industry CodeQ750/MC
Osram Sylvania58769750Q/CL/MC (EYT)
Ushio1000463EYT, JCV120V-750WB1
Microlites120-750-45T
Canimpex120-750-45T

EYT may also be listed as:
031293152862 EIKO048777130179 UPC1000463 BLV1000463 USHIO
15286 EIKO15286 UPC15286 WIKO58769 OSRAM
58769 SYLVANIA58769-0 SYLVANIA750/Q/CL PHILIPS750Q-CL120V/T4-120V-750W-MINICAN-EYT LAMPTECH
750Q/3CL SYLVANIA750Q/CL SYLVANIA750Q/CL/120V750Q/CL/MC/EYT/120V/750W OSRAM
750Q/CL120V LAMPTECH750QCLMC-EYT-120V OSRAM750W/Q/CL/MC/120V OSRAM750WATT-QUARTZ-CLEAR PHILIPS
750WATT-QUARTZ-CLEAR-120 VOLT PHILIPS750WATT-QUARTZ-CLEAR-E11S750WATT-QUARTZ-CLEAR-E11S-120 VOLT750WATT-QUARTZ-CLEAR-E11S-EYT
750WATT-QUARTZ-CLEAR-E11S-EYT-120 VOLT750WATT-QUARTZ-E11S-120 VOLT750WATT-QUARTZ-E11S-CLEAR-120 VOLTE11-120V-750W-EYT-JCV120V-750WB1-T13MM-95MMMOL-51MMLCL-CC-8-18500L-3050K-500H-CLEAR-1000463 BLV
E11-120V-750W-EYT-JCV120V-750WB1-T13MM-95MMMOL-51MMLCL-CC-8-18500L-3050K-500H-CLEAR-1000463 USHIOEYT ANSIEYT ASAEYT BULB-DIRECT
EYT EIKOEYT INTERLIGHTEYT LAMPTECHEYT MICROLAMP
EYT USHIOEYT WESTINGHOUSEEYT WIKOEYT-120 VOLT ANSI
EYT-120 VOLT ASAEYT-120V ANSIEYT-120V ASAEYT-120V-750W
EYT-120V-750W ANSIEYT-120V-750W ASAEYT-120V-750W-E11 USHIOEYT-120V-750W-E11-T4-CC8-CLEAR-18500L-3050K-500H-ANY-3-3/4MOL-2LCL-Q-GENERAL-LIGHTING
EYT-120V-750W-E11S-T-4-CC-8-CLEAR-18500L-3050K-500H-ANY-3-3/4MOL-2LCL-Q-GENERAL-LIGHTINGEYT-120V/120V/750W/E11 ANSIEYT-750W-120V-E11 USHIOEYT-JCV120V750WB1-T13MM-95MMMOL-51MMLCL-CC-8-18500L-3050K-500H-CLEAR-1000463 BLV
EYT-JCV120V750WB1-T13MM-95MMMOL-51MMLCL-CC-8-18500L-3050K-500H-CLEAR-1000463 USHIOEYT/120V OSRAMEYT/120V/750W OSRAMEYT/120V/750W/E11 ANSI
H/120V/750W/E11H/120V/750W/E11/T4/2000HH/120V/750W/E11/T4/2000H/Q750T4MCH/120V/750W/E11/T4/CC8/500H
H/120V/750W/E11/T4/CC8/500H/EYTH/120V/750W/E11/TUBEJCV-120 VOLT-750WATT-B-1-S USHIOJCV/120V/750W/B1S
JCV120V-750WB1 USHIOJCV120V-750WB1/AX/500H USHIOJCV120V-750WB1/EYT USHIOJCV120V-750WB1S USHIO
JCV120V750WB1-CC8-500HR USHIOJCV120V750WB1-CC8-500HR/120V/750W/E11 USHIOJCV120V750WB1-CC8-500HR/120V/750W/E11/EYT USHIOJCV120V750WB1-CC8-500HR/EYT USHIO
JCV120V750WB1-E11 USHIOJD/120V/750W/E11Q-750-E11S-CLEAR-120VQ/750/T4/MC/CL/120V
Q/750W/E11/CL/120VQ/750W/MC/CL/120VQ/750W/T4/E11/CL/120VQ750CL/MC-120V EIKO
Q750MC/CL120VQ750T4 MICROLAMPQ750T4CL/MC MICROLAMPQ750T4MC
QUARTZ-750WATT-CLEAR GENERAL-ELECTRICQUARTZ-750WATT-CLEAR-120 VOLT GENERAL-ELECTRICQUARTZ-750WATT-CLEAR-E11S EIKOQUARTZ-750WATT-CLEAR-E11S-120 VOLT EIKO
QUARTZ-750WATT-CLEAR-E11S-120 VOLT-EYT EIKOQUARTZ-750WATT-CLEAR-E11S-EYTQUARTZ-750WATT-CLEAR-E11S-EYT-120 VOLTQUARTZ-750WATT-E11S-120 VOLT
QUARTZ-750WATT-E11S-CLEAR-120 VOLTQUARTZ-750WATT-E11S-FROSTED-120 VOLTSPQ750T4E11AX-120VSPQ750T4E11AX120V-EYT
SPQ750T4E11CC8-120VSPQ750T4E11CC8120V-EYTSPQ750T4MCAX-120VSPQ750T4MCAX120V-EYT
SPQ750T4MCCC8-120VSPQ750T4MCCC8120V-EYT
