EYW ANSI Code

EYW ANSI is a T4 lamp with a E11 base operating at 500 watts and 130 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EYW lamps.

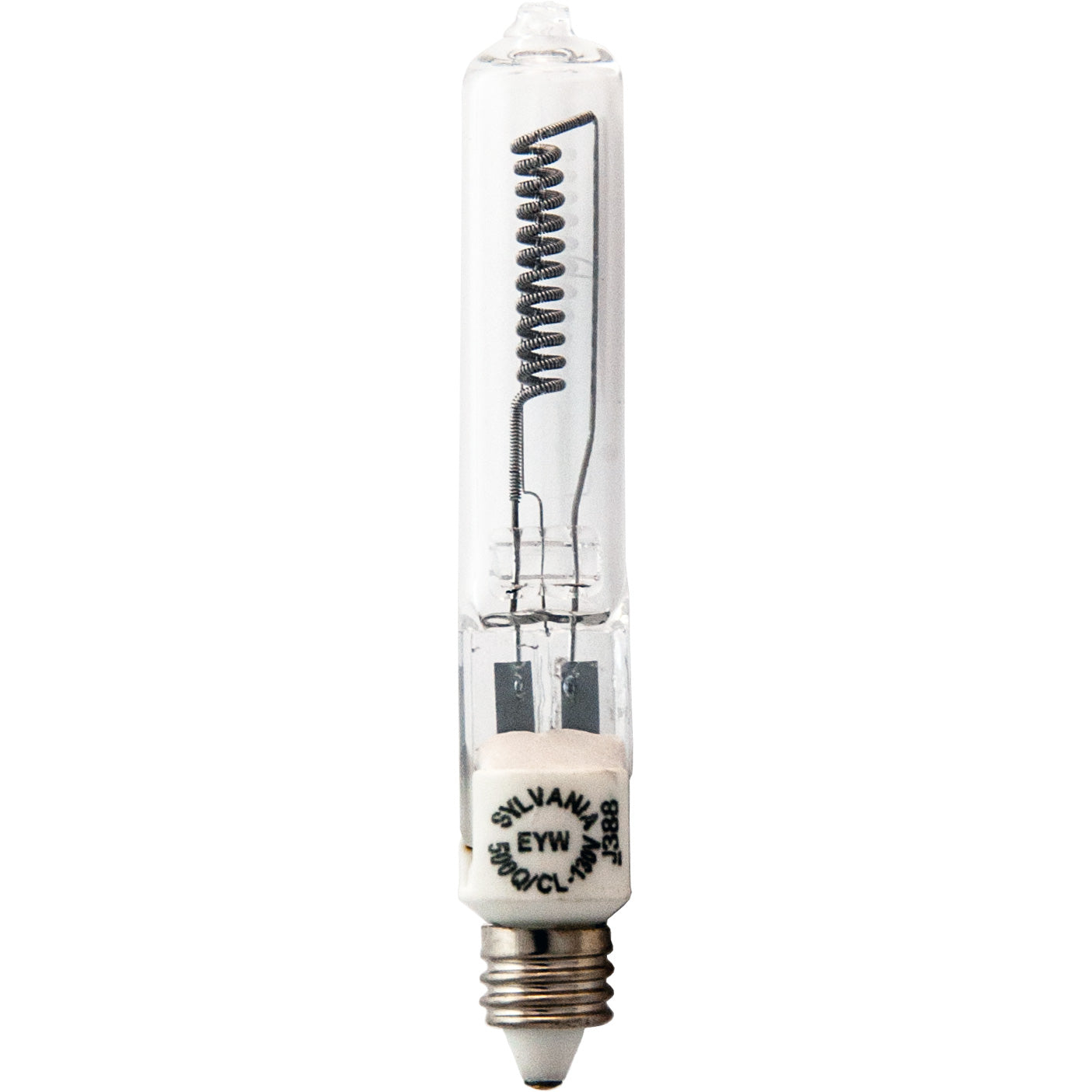

EYW Photograph

EYW

Electrical Specifications

Amps3.85
Volts130
Watts500

Photometrics

Candlepower800
Color Temperature3000
Light Center Length (LCL)2
Lumens10000

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeEYW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
CEW Lighting56043500Q/CL/EYW130V
EYE (Iwasaki)JD130V500W/M2500Q/CL/MC/130V EYW
Industry CodeQ500CL/MC (130V)
Osram Sylvania58756500Q/CL/MC (EYW)
Ushio1000465EYW, JCV130V-500WGS
Microlites130-500-45W
Canimpex130-500-45W

EYW may also be listed as:
031293152800 EIKO04613558756 SYLVANIA048777130315 UPC1000465 BLV
1000465 USHIO107040 HALCO15280 EIKO15280 UPC
15280 WIKO30242 STANDARDPRO3129315280 WIKO40779 EDMUND-SCIENTIFIC
4.53012E+124530118302421UPC STANDARDPRO49615 EIKO49615 UPC
500Q-CL-MC-EYW130V500Q-CL-MC-EYW130V/04613558756 SYLVANIA500Q-CL-MC-EYW130V/58756 SYLVANIA500Q/CL/EYW PHILIPS
500Q/CL/MC/130V/EYW/EYE STANDARDPRO500Q/CL/MC/EYW/130V/500W OSRAM500Q/CL/MINI-CAN/130V SLI500QCL-500Q/CL/MC/130V-EYW-500Q/CL/MC-EYW-130V-EYW IWASAKI
500QCL-500Q/CL/MC/130V-JD2049-EYW IWASAKI500QCL-CLEAR-EYW IWASAKI500QCL-MC130500QCL/MC/130V IWASAKI
500QCL/MC130V500QCLMC-EYW-130V OSRAM500W/Q/CL/MC/130V OSRAM500W/Q/CL/MC/EYW/130V OSRAM
500WATT-QUARTZ-CLEAR500WATT-QUARTZ-CLEAR-130VOLT PHILIPS500WATT-QUARTZ-CLEAR-130VOLT SYLVANIA500WATT-QUARTZ-CLEAR-130VOLT-STUDIO-LAMP
500WATT-QUARTZ-CLEAR-E11S WESTINGHOUSE500WATT-QUARTZ-CLEAR-E11S-130VOLT WESTINGHOUSE500WATT-QUARTZ-CLEAR-E11S-EYW500WATT-QUARTZ-CLEAR-E11S-EYW-130VOLT
500WATT-QUARTZ-E11S WESTINGHOUSE500WATT-QUARTZ-E11S-CLEAR WESTINGHOUSE500WATT-QUARTZ-E11S-CLEAR-130VOLT WESTINGHOUSE500WATT-T4-QUARTZ-CLEAR-E11S
500WATT-T4-QUARTZ-CLEAR-E11S-130VOLT500WATT-T4-QUARTZ-E11S-CLEAR500WATT-T4-QUARTZ-E11S-CLEAR-130VOLT58756 OSRAM
58756 SYLVANIA60273 SLI807154170401 HALCO81560 IWASAKI
844409000823 HIKARIBW-500QCL-MC130BW-EYWE11-130V-500W-EYW-JCV130V-500WGS-T13MM-92MMMOL-51MMLCL-CC-8-10000L-3000K-2000H-CLEAR-1000465 BLV
E11-130V-500W-EYW-JCV130V-500WGS-T13MM-92MMMOL-51MMLCL-CC-8-10000L-3000K-2000H-CLEAR-1000465 USHIOEVR-130VEVR-130VOLTEYW ANSI
EYW ASAEYW BULB-DIRECTEYW EIKOEYW HALCO
EYW INTERLIGHTEYW IWASAKIEYW MICROLAMPEYW USHIO
EYW WESTINGHOUSEEYW WIKOEYW-130V ANSIEYW-130V ASA
EYW-130V IWASAKIEYW-130V-500W ANSIEYW-130V-500W ASAEYW-130V-500W-E11 USHIO
EYW-130V/130V/500W/E11 ANSIEYW-130VOLT ANSIEYW-130VOLT ASAEYW-130VOLT INTERLIGHT
EYW-500W-130V-E11 USHIOEYW-JCV130V500WGS-T13MM-92MMMOL-51MMLCL-CC-8-10000L-3000K-2000H-CLEAR-1000465 BLVEYW-JCV130V500WGS-T13MM-92MMMOL-51MMLCL-CC-8-10000L-3000K-2000H-CLEAR-1000465 USHIOEYW-QUARTZ-500-CLEAR-E11S GENERAL-ELECTRIC
EYW-WGS EIKOEYW/130V OSRAMEYW/130V/500W OSRAMEYW/130V/500W/E11 ANSI
EYW/T4/E11/500W/130V/1/10/2000H/CC-8/8500L/3000K/UNIVERSAL-BURNEYW130VH/130V/500W/E11H/130V/500W/E11/T4/AX/2000H/EYW-130V
H/130V/500W/E11/T4/AX/EYW-130VH/130V/500W/E11/T4/CC8/2000HH/130V/500W/E11/T4/CC8/2000H/EYWH/130V/500W/E11/T5/AX
H/130V/500W/E11/T5/AX/2000HH/130V/500W/E11/TUBE/AXH/130V/500W/E11/TUBE/AX/2000HHE11.130.500 BAILEY
JCV-130VOLT-500WATT-GS USHIOJCV130V-500WGS USHIOJCV130V-500WGS/AX/2000H USHIOJCV130V-500WGS/EYW USHIO
JCV130V500WGS-CC8-2000HR USHIOJCV130V500WGS-CC8-2000HR/130V/500W/E11 USHIOJCV130V500WGS-CC8-2000HR/130V/500W/E11/EYW USHIOJCV130V500WGS-CC8-2000HR/EYW USHIO
JCV130V500WGS-E11 USHIOJD-130V/500W/MCJD-130V/500W/MC/E11JD-130VOLT-500WATT-E11S
JD-130VOLT-500WATT-M-2JD-500WATT-E11S-130VOLTJD-7035 HIKARIJD-7035-JD-130V/500W-MC-E11
JD-E11S-130VOLT-500WATTJD/130V/500W/E11 HALCOJD130V/500W-MC-E11 HIKARIJD130V500W-E11S
JD130V500WMCAXJD2049 IWASAKIJD500MC HALCOJD500W/MC/2049 STANDARDPRO
JD7035-JD-130V/500W-MC-E11-844409000823 HIKARIQ/500W/MC/CL/130VQ500CL/MC-130V EIKOQ500CL/MC/EYW HALCO
Q500CL/MC/EYW/107040 HALCOQ500CL/MC/EYW/107040/T4/E11/CLEAR/10/400/130V/8500CBCP/3000K/2000H/CC-8/3.66INCHMOLQ500CL/MC130V MICROLAMPQ500MCAX130V
Q500T4MCAX130VQUARTZ-500WATT-CLEARQUARTZ-500WATT-CLEAR-130VOLT PHILIPSQUARTZ-500WATT-CLEAR-130VOLT SYLVANIA
QUARTZ-500WATT-CLEAR-130VOLT-STUDIO-LAMPQUARTZ-500WATT-CLEAR-E11S EIKOQUARTZ-500WATT-CLEAR-E11S GENERAL-ELECTRICQUARTZ-500WATT-CLEAR-E11S PHILIPS
QUARTZ-500WATT-CLEAR-E11S-130VOLT EIKOQUARTZ-500WATT-CLEAR-E11S-130VOLT-EYW EIKOQUARTZ-500WATT-CLEAR-E11S-EYW GENERAL-ELECTRICQUARTZ-500WATT-CLEAR-E11S-EYW-130VOLT GENERAL-ELECTRIC
QUARTZ-500WATT-E11S LIGHTING-COMPANYQUARTZ-500WATT-E11S-130VOLT LIGHTING-COMPANYQUARTZ-500WATT-E11S-130VOLT-OXFORD LIGHTING-COMPANYQUARTZ-500WATT-E11S-CLEAR GENERAL-ELECTRIC
QUARTZ-500WATT-E11S-CLEAR-130VOLT GENERAL-ELECTRICQUARTZ-500WATT-T4-CLEAR-E11SQUARTZ-500WATT-T4-CLEAR-E11S-130VOLTQUARTZ-500WATT-T4-E11S-130VOLT
QUARTZ-500WATT-T4-E11S-CLEARQUARTZ-500WATT-T4-E11S-CLEAR-130VOLTSPQ500T4E11AX-130VSPQ500T4E11AX130V-EYW
SPQ500T4E11CC8-130VSPQ500T4E11CC8130V-EYWSPQ500T4MCAX-130VSPQ500T4MCAX130V-EYW
SPQ500T4MCCC8-130VSPQ500T4MCCC8130V-EYWWGSWGS-EYW
