EYX ANSI Code

EYX ANSI is a T4 lamp with a E11 base operating at 500 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EYX lamps.

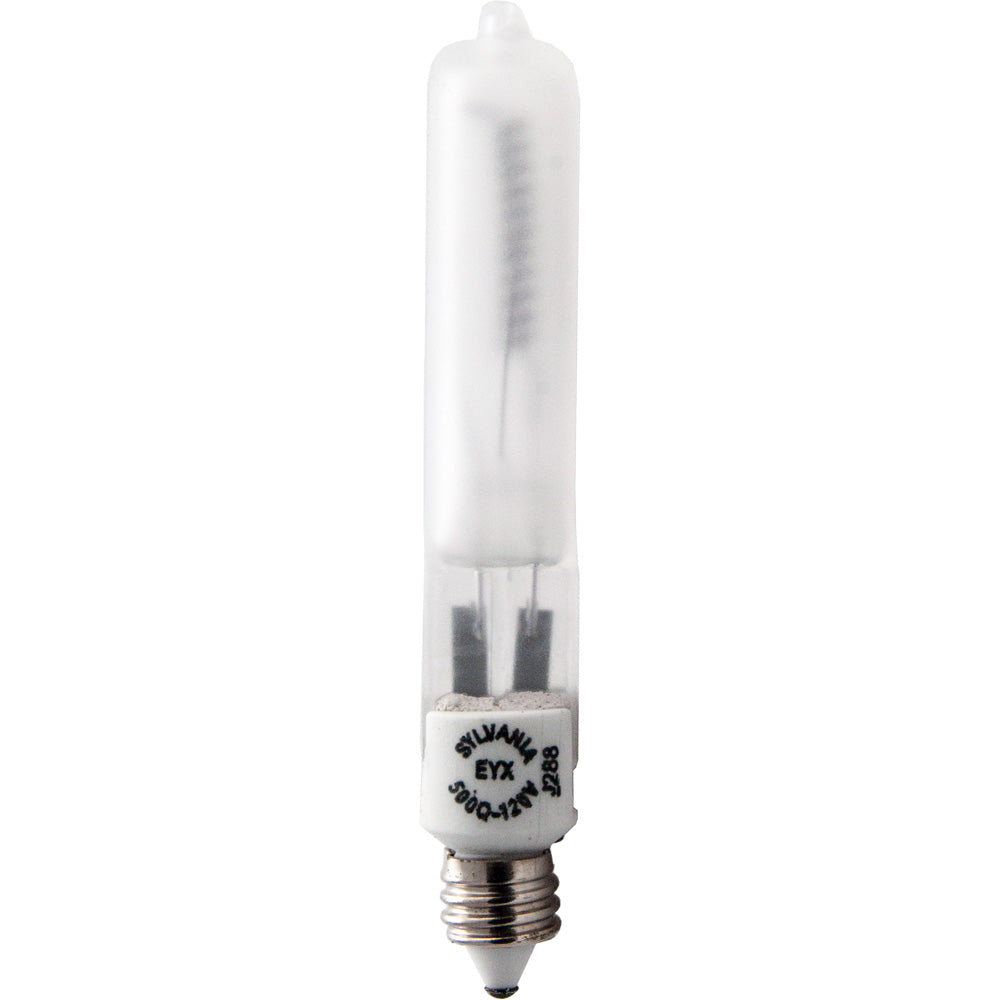

EYX Photograph

EYX

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower800
Color Temperature3000
Light Center Length (LCL)2
Lumens9500

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeEYX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762280EYX
Industry CodeQ500/MC
Osram Sylvania58767500Q/MC (EYX)
Ushio1000466EYX, JCV120V-500WGSF
Microlites130-500-45X
Microlites130-500-45XF
Canimpex130-500-45X
Canimpex130-500-45XF

Equipment Used In

BrandModelType
Berkey Colortran Mini Eclipse 213-155
