EZD ANSI Code

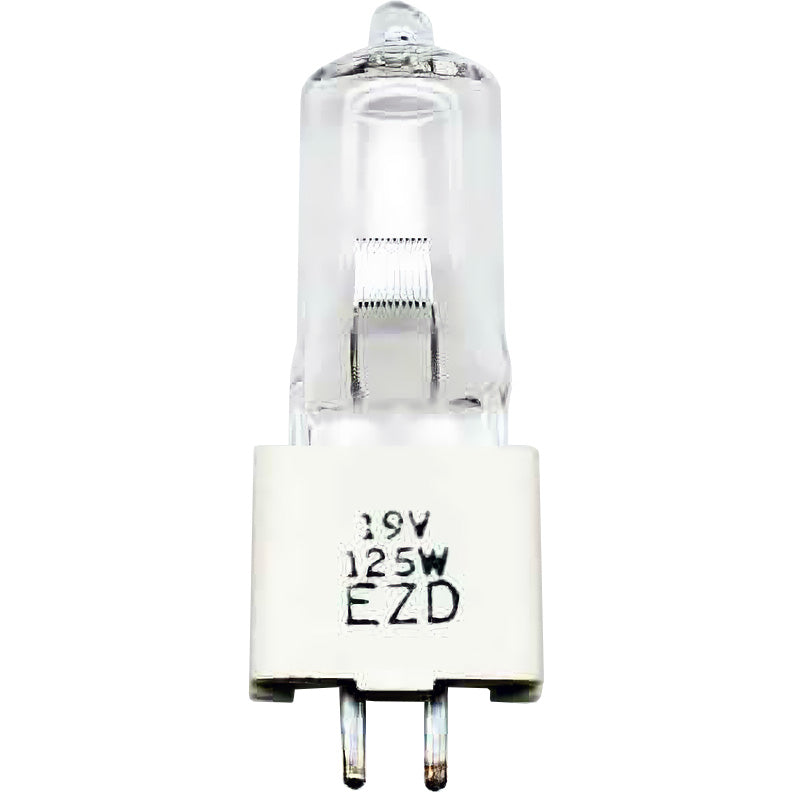

EZD ANSI is a T4 lamp with a G5.3 base operating at 125 watts and 18.9 volts. It has a color temperature of 3050 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EZD lamps.

Electrical Specifications

Amps6.6
Volts18.9
Watts125

Photometrics

Candlepower210
Color Temperature3050
Light Center Length (LCL)1 1/16
Lumens2650

Physical Characteristics

BaseG5.3
Bulb ShapeT4
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 1/8

Operating Characteristics

Burn PositionBDTH
Life Hours2000

General Information
Lamp CodeEZD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites19-125-23
Canimpex19-125-23

EZD may also be listed as:
02997 WIKO031293029973 EIKO14925 GENERAL-ELECTRIC356666
588096.6AMP-125WATT-T4-QUARTZ-NLBW-EZDEZD ANSI
EZD ASAEZD EIKOEZD GENERAL-ELECTRICEZD INTERLIGHT
EZD LAMPTECHEZD WIKOEZD-19V-125WEZD-19V-125W ANSI
EZD-19V-125W-G5.3-T4-FC6-CLEAR-2650L-3050K-2000H-BDTH-2-1/8MOL-1-1/16LCL-Q-PROJECTOR/MICROFILMEZD-6.6A ANSIEZD-6.6A ASAEZD-6.6A-125W ANSI
EZD-6.6A-125W ASAEZD-6.6A/6.6A/125W/G5.3 ANSIEZD-6.6AMP ANSIEZD-6.6AMP ASA
EZD/6.6A/125W/G5.3 ANSIEZD/PROJECTION-LAMP LAMPTECHH/6.6A/125W/G5.3/T4/C6/2000H/EZDH/6.6A/125W/G5.3/T4/CL/2000H/EZD
H/6.6A/125W/T4/NLQ/6.6A/125W/T4/NLQ/6.6A/T4/NL/125WQ6.6A125T4NL
SPQ6.6A/125WT4G5.3C6SPQ6.6A/125WT4G5.3C6-EZDSPQ6.6A/125WT4G5.3CLSPQ6.6A/125WT4G5.3CL-EZD
