EZM ANSI Code

EZM ANSI is a MR24D lamp with a MARC-PLUG base operating at 300 watts and 37.5 volts. It has a color temperature of 5500 Kelvin. It has a Open front finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EZM lamps.

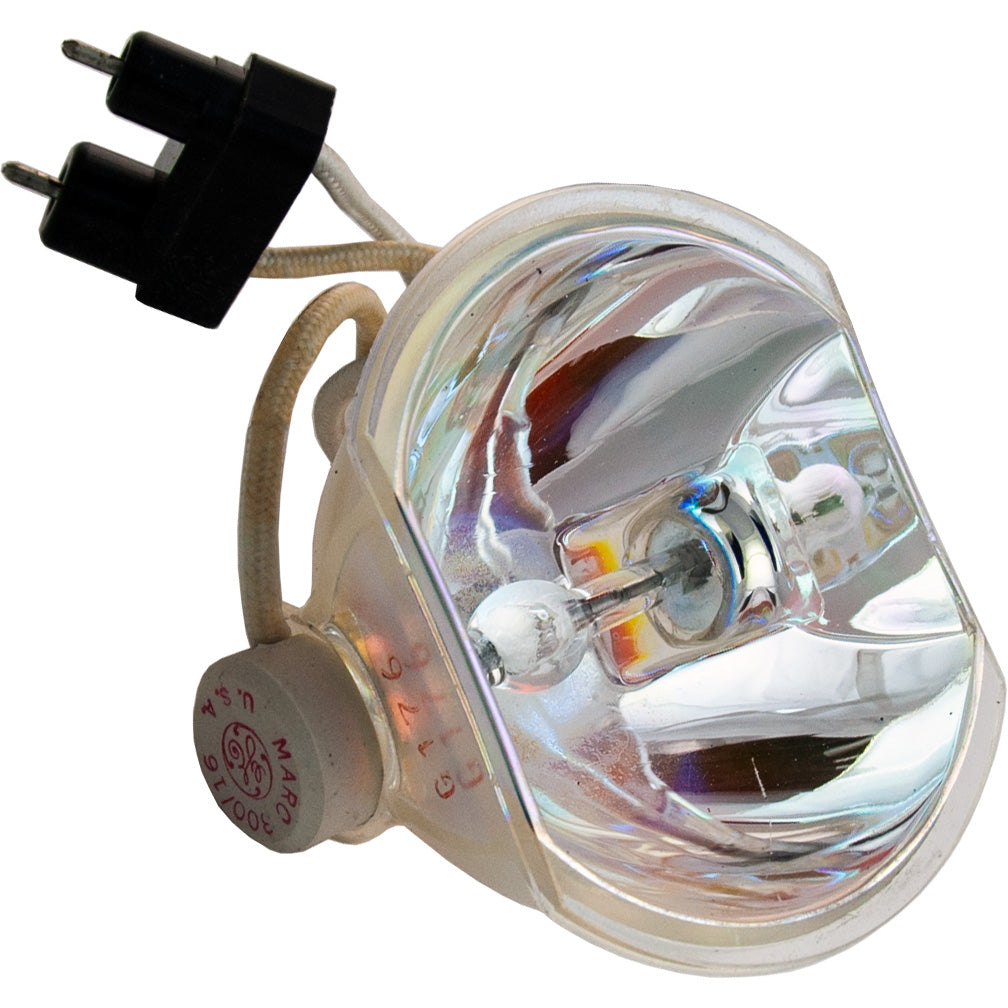

EZM Photograph

EZM

Electrical Specifications

Amps8
Volts37.5
Watts300

Photometrics

Color Temperature5500

Physical Characteristics

BaseMARC-PLUG
Bulb ShapeMR24D
FilamentDischarge
FinishOpen front

Operating Characteristics

Burn PositionRim Vertical
Life Hours25

General Information
Lamp CodeEZM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-081-4561

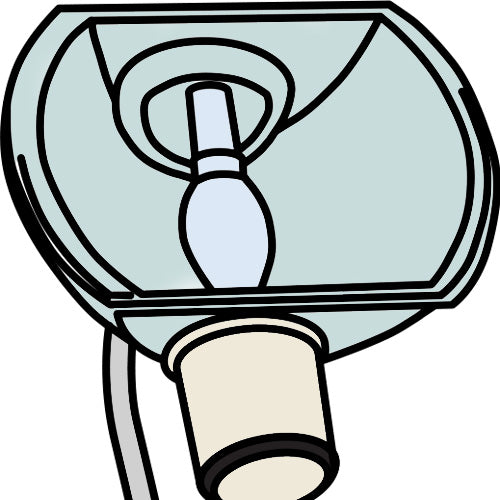

MR24D Shape

MR24D
Diameter Designation24/8"
Glass Diameter 3" (3.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

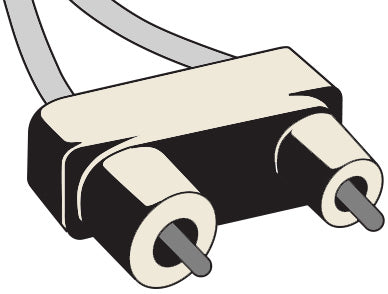

MARC-PLUG Base

MARC-PLUG

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsEZMEZM
Microlites37.5-300-99R
MicrolitesMARC
MicrolitesMARC-300
MicrolitesMARC300-16
MicrolitesMARC300-16EZM
Canimpex37.5-300-99R
CanimpexMARC
CanimpexMARC-300
CanimpexMARC300-16
CanimpexMARC300-16EZM

Equipment Used In

BrandModelType
Arriflex Siemens 2000 Marc (Sound) Stage / Studio
Bauer P6 Automatic 300
Bauer P7T Universal 300
Bell and Howell High Intensity Autoload 566-A
Bell and Howell High Intensity Autoload 566-X
Bell and Howell High Intensity Autoload 566
Bell and Howell High Intensity Autoload 566-EXT
EIKI M-3-CAK
EIKI M-0-CAK
EIKI ST-0-CAK
EIKI ST-1-CAK
EIKI M-1-CAK
EIKI ST-2-CAK
EIKI M-2-CAK
EIKI ST-3-CAK
GAF (Ansco) Auditorium 3000
International Audio Visual Ltd. Royal ST-1-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-2-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. CAK Conversion Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-0-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-3-CAK Projector Slide / Filmstrip
Kalart Victor 90-25-MC-3
Kalart Victor 75-25-MC-3
Kalart Victor Moviematic 70-25-MC-3
Kalart Victor Moviematic 70-1600
Kalart Victor 70-25-MC-3
Kalart Victor Moviematic 70-25
Kalart Victor 80-1600
Kalart Victor Moviematic STM-18-MCC
Kalart Victor Moviematic 75-25-MC-3
Kalart Victor Moviematic STM-18-MC-3
Kalart Victor 70-15-MC-3
Kalart Victor 70-160
Kalart Victor Moviematic 70-15-MC-3
Kalart Victor Moviematic Mark V-MC3
Kalart Victor Moviematic 75-25
Kalart Victor Moviematic 1600
Kalart Victor 75-15-MC-3
Kalart Victor Mark V-MC-3
Kalart Victor Moviematic 75-15
Kalart Victor Moviematic Mark V
Kalart Victor Moviematic 75-15-MC-3
Kalart Victor Moviematic 90-25-MC-3
Norelco ML-5100 MARK-LITE
RCA 1600-HL Projector

EZM may also be listed as:
008511 ORBITEC008511-MARC300-MIROIR-2PINS-37.5V-300W-EZM ORBITEC008511/37.5V/300W ORBITEC008511/37.5V/300W/MARC-CONNECTOR ORBITEC
008511/37.5V/8A ORBITEC300-16300-16MARC300WATT-16
300WATT-16-MARC5030-2 GUERRA6240-00-081-4561842080 PRODUCTS-FOR-MEDICINE
842080/16V/300W PRODUCTS-FOR-MEDICINE8511 ORBITEC99-X-3375 EFFNER99-X-3375 FAROMED
ARCARC-EZMBW-EZMCOLOR-ARC SYLVANIA
COLOR-ARC-300W-16 ANSICOLOR-ARC-300W-16 ASACOLOR-ARC-300W-16 SYLVANIACOLOR-ARC-300WATT-16 ANSI
COLOR-ARC-300WATT-16 ASACOLOR-ARC-300WATT-16 SYLVANIACOLORARC300-16 ANSICOLORARC300-16 ASA
COLORARC300-16 SYLVANIAEZM ACMIEZM ANSIEZM ASA
EZM GENERAL-ELECTRICEZM GUERRAEZM INTERLIGHTEZM LITE-SOURCE
EZM MICROLAMPEZM WIKOEZM-37.5 ANSIEZM-37.5 ASA
EZM-37.5V ANSIEZM-37.5V ASAEZM-37.5V-300WEZM-37.5V-300W ANSI
EZM-37.5V-300W ASAEZM-37.5V-300W-POL-PLUG-MR24-DISCHARGE-OPEN-FRONT-5500K-25H-RIM-VERT-D-16MM-PROJECTOR-OTHERS-ARC-LAMP-DICHROIC-REFL-WORKING-DIST-52MMEZM-37.5V-300W-POL.-PLUG-MR-24-DISCHARGE-OPEN-FRONT-5500K-25H-RIM-VERT-D-16MM-PROJECTOR-OTHERS-ARC-LAMP-DICHROIC-REFL.-WORKING-DIST.-52MMEZM-37.5V/37.5V/300W/MARC-PLUG ANSI
EZM-37.5VOLT ANSIEZM-37.5VOLT ASAEZM-ARC GENERAL-ELECTRICEZM-GE-300W/37.5V-PROJECTOR-BULB-MARC-300/16 LITE-SOURCE
EZM-MARC GUERRAEZM/300W/37.5V-PROJECTOR-BULB-MARC-300/16 GENERAL-ELECTRICEZM/37.5VEZM/37.5V/300W/MARC-CONNECTOR ANSI
EZM/37.5V/300W/MARC-PLUG ANSIEZM/ACMI INTERLIGHTEZM37-1/2V ANSIEZM37-1/2V ASA
FCB-1011 ACMIFCB-1011 CIRCONFCB-1011/ACMI INTERLIGHTFCB1011 CIRCON-ACMI
GEM-MAR-300GEM-MAR-300WGEM-MAR-300WATTGEMI-MARC-300
GEMI-MARC-300WGEMI-MARC-300WATTH/37.5V/300W/MARC-PLUG/MR24D/DISCHARGE/25HH/37.5V/300W/MARC-PLUG/MR24D/DISCHARGE/25H/EZM
L-136 ACMIL-136 ACMI-CIRCONL-136 CIRCONMA-300 AKKU
MA-300/MARC/300W/5500K/25H AKKUMARC-300 ORBITECMARC-300/16 ORBITECMARC-EZM
MARC/300W/16MARC/300W/5500K/25H/MA-300 AKKUMARC/300W/5500K/25H/MARC300-16 AKKUMARC300-1 GENERALELECTRIC
MARC300-16 AKKUMARC300-16 ALTERNATYWAMARC300-16 GENERALELECTRICMARC300-MIROIR-2PINS-37.5V-300W-EZM ORBITEC
MARC300/16 INTERLIGHTMARC300/16 MICROLAMPMARC300/16/37.5V GENERAL-ELECTRICMARC300/16/37.5V/300W ORBITEC
MARC300/16/37.5V/300W/MARC-CONNECTOR ORBITECMARC300/37.5V/300W ORBITECMARC300/37.5V/300W/MARC-CONNECTOR ORBITECMIROIR-2-PINS-37.5V-300W-EZM/MARC300/008511 ORBITEC
MIROIR-2PINS-37.5V-300W-EZM ORBITECSPQ300MR24DMARC-PLUGDISCHARGE37.5VSPQ300MR24DMARC-PLUGDISCHARGE37.5V-EZM
