F/1 LIF Code
F/1 LIF is a P38 lamp with a E14s base operating at 30 watts and 6 volts. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF F/1 lamps.
Electrical Specifications | |
| Volts | 6 |
|---|---|
| Watts | 30 |
Photometrics | |
| Light Center Length (LCL) | 47 5 |
|---|---|
| Lumens | 600 |
Physical Characteristics | |
| Base | E14s |
|---|---|
| Bulb Shape | P38 |
| Filament | C-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 62 |
Operating Characteristics | |
| Burn Position | H ± 30° |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | F/1 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class F - Microprojection |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

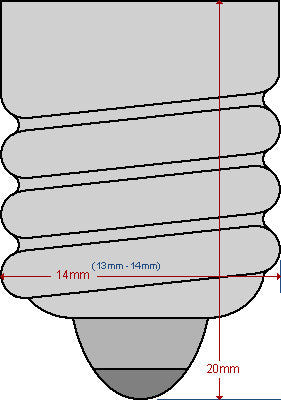

E14s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | F/1 | ||
