F20T12/BLB UVA Blacklight Blue Filter Code

F20T12/BLB UVA Blacklight Blue Filter is a T12 lamp with a G13 base operating at 20 watts . It produces a UVA spectrum output. It has a UVA Phosphor (Blue) finish. The average rated life is 9000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for UVA Blacklight Blue Filter F20T12/BLB lamps.

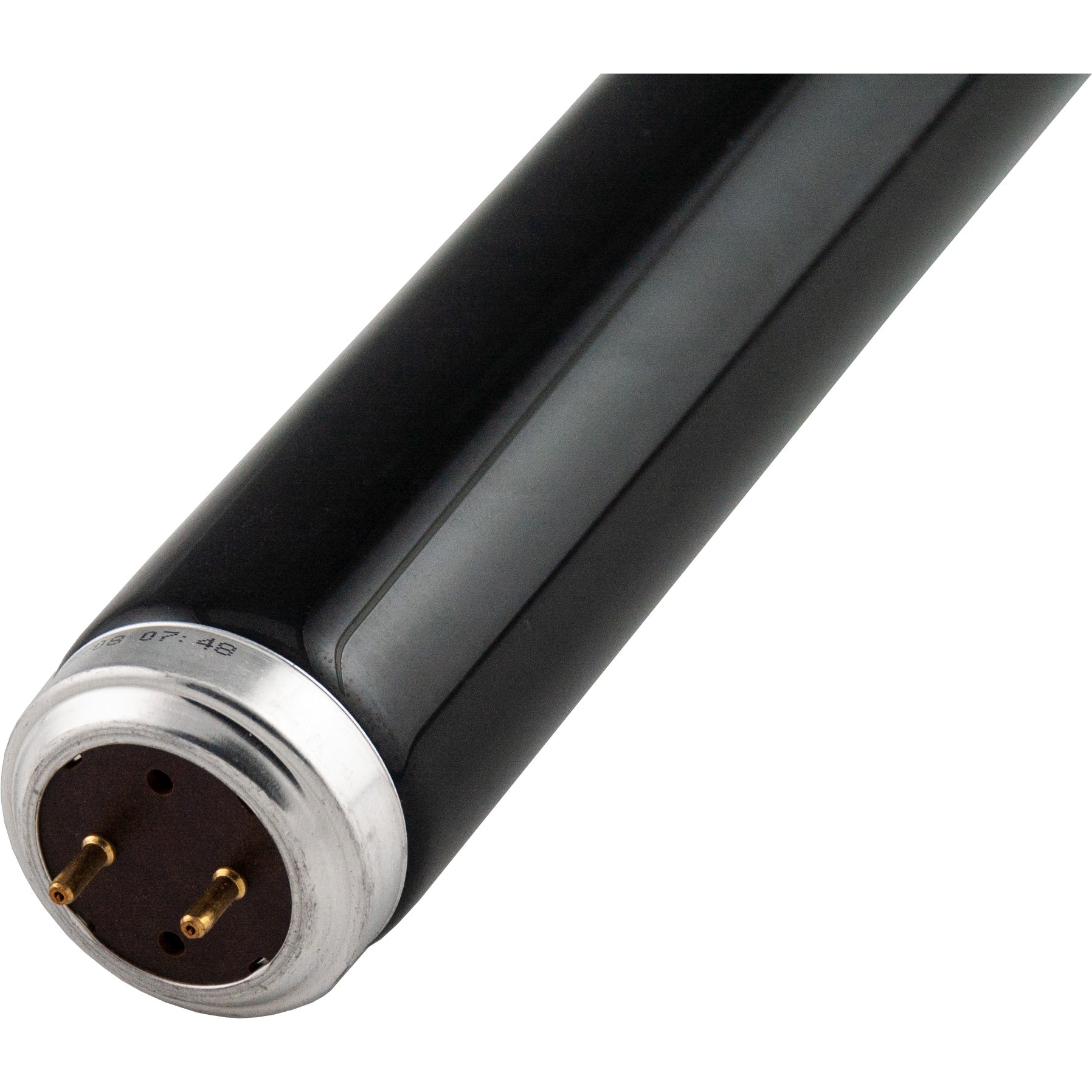

F20T12/BLB Photograph

F20T12/BLB

Electrical Specifications

Watts20

Photometrics

SpectrumUVA

Physical Characteristics

BaseG13
Bulb ShapeT12
FinishUVA Phosphor (Blue)
Max Overall Length (MOL)24"
Diameter1.5"

Operating Characteristics

Burn PositionAny
Life Hours9000

General Information
Lamp CodeF20T12/BLB
Code TypeUVA Blacklight Blue Filter

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

G13 Base

G13

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite51320F20T12BLB
General Electric34747F20T12/BLB
Grainger5V871
Osram Sylvania22114F20T12/BLB
Osram Sylvania22116F20T12/BLB/RP
Philips391516F20T12/BLB
Philips392241F20T12/BLACKLIGHT/24"
Norman LampsF20T12-BLBF20T12-BLB (24 in.)
General Electric72942F20T12BLB/CVG
Orbitec131075F 20 T 12 BLB

Sources

  • "Lampes Orbitec." Catalog. ORBITEC, .
