F/37 LIF Code
F/37 LIF is a T25 lamp with a B22d base operating at 48 watts and 12 volts. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF F/37 lamps.
Electrical Specifications | |
| Volts | 12 |
|---|---|
| Watts | 48 |
Photometrics | |
| Light Center Length (LCL) | 80.0 5 |
|---|---|
| Lumens | 925 |
Physical Characteristics | |
| Base | B22d |
|---|---|
| Bulb Shape | T25 |
| Finish | Clear |
| Max Overall Length (MOL) | 120 |
Operating Characteristics | |
| Burn Position | VBD ± 135 |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | F/37 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class F - Microprojection |
T25 Shape | |
 | |
| Diameter Designation | 25/8" |
|---|---|
| Glass Diameter | 3 1/8" (3.125") |
| Shape Code | T |
| Shape Classification | Tubular |

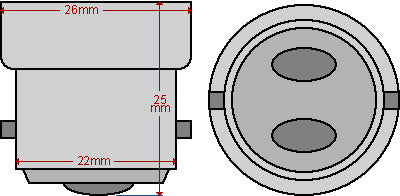

B22d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | F/37 | ||
