F4T5/BLB UVA Blacklight Blue Filter Code
F4T5/BLB UVA Blacklight Blue Filter is a T5 lamp with a G5 base operating at 4 watts . It produces a UVA spectrum output. It has a UVA Phosphor (Blue) finish. The average rated life is 6000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for UVA Blacklight Blue Filter F4T5/BLB lamps.

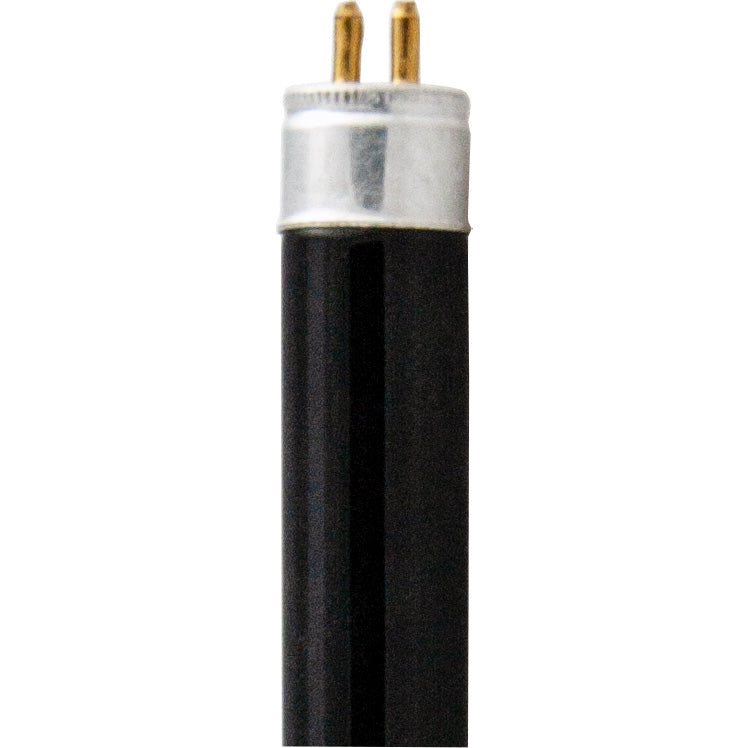

F4T5/BLB Photograph |
 |
Electrical Specifications | |
| Watts | 4 |
|---|---|
Photometrics | |
| Spectrum | UVA |
|---|---|
Physical Characteristics | |
| Base | G5 |
|---|---|
| Bulb Shape | T5 |
| Finish | UVA Phosphor (Blue) |
| Max Overall Length (MOL) | 6" |
| Diameter | 0.63" |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 6000 |
General Information | |
| Lamp Code | F4T5/BLB |
|---|---|
| Code Type | UVA Blacklight Blue Filter |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
G5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Bulbrite | 501304 | F4T5BLB | |
| CEW Lighting | 20016 | F4T5/BLB | |
| General Electric | 10019 | F4T5/BLB | |
| Grainger | 6V119 | ||
| Osram Sylvania | 20415 | F4T5CWBL16 FLR | |
| Osram Sylvania | 20425 | F4T5/BLB | |
| Philips | 358408 | F4T8/BLB | |
| Sunlite | 39000 | F4T5/BLB | |
| Ushio | 3000106 | F4T5BLB, 4.5W Blacklight Blue | Available |
| Satco | S6405 | F4T5/BLB | Available |
| Hikari | BLB-F4T5C | F4T5BLB-C | Available |
| Green Energy Lighting (GELCO) | 30364 | F4T5/BLB | |
| Norman Lamps | F4T5-BLB | F4T5-BLB (6 in.) | |
| Atlantic Ultraviolet | 05-1089 | F4T5BLB | Available |
| Hybec Corporation | F4T5/BLB | F4T5/BLB | |
| Orbitec | 130917 | XN 1040 | |
| Orbitec | 130918 | XN 1040 | |
Equipment Used In | ||
| Brand | Model | Type |
| AO Reichert | 11154 | Medical |
| American Optical | 14135 UV Overhead | |
| American Optical | 1228 Hand Magnifier | |
| American Optical | Bilirubonometer | Medical |
| American Optical | 1228 Hand | |
| Burton | Ultraviolet | |
| Burton Medical | Hand Held Blacklight Blue 0001127 | |
| Burton Medical | 0003073 | Medical |
| Burton Medical | UV501 | Woods Light, No Magnifier |
| Burton Medical | UV502 | Woods Light, With Magnifier |
| Burton Medical | UV503 | Woods Light, With Magnifier |
| Spectroline | EA-140 | |
| Spectroline | BLE-220B | |
| Stocker & Yale | 971-005 | |
