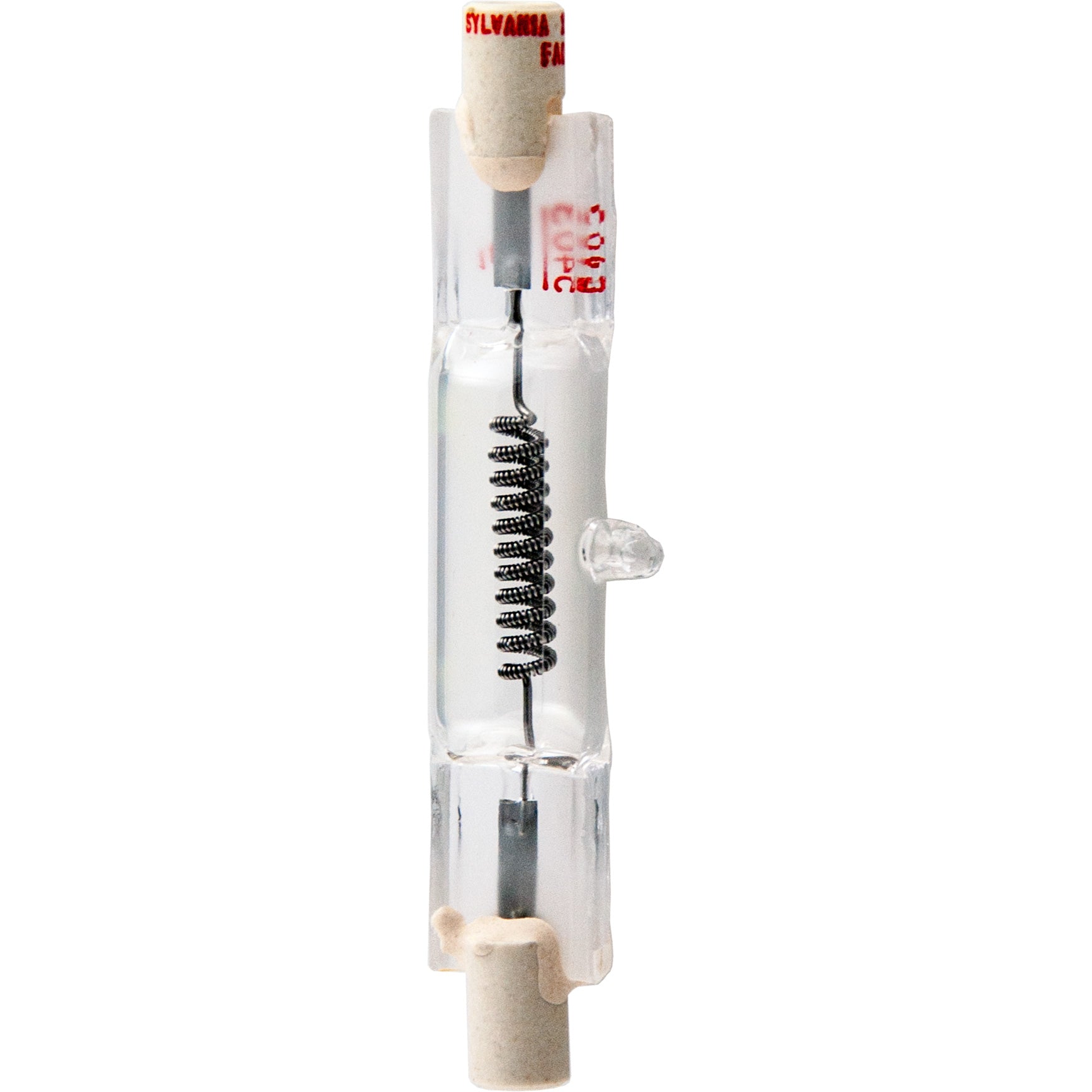

FAD ANSI Code
Electrical Specifications | |
| Amps | 5 |
|---|---|
| Volts | 120 |
| Watts | 650 |
Photometrics | |
| Candlepower | 1300 |
|---|---|
| Color Temperature | 3200 |
| Lumens | 16500 |
Physical Characteristics | |
| Base | R7s-21 |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Light Center Length (LCL) | 78.3 |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | FAD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlas/Thorn | P2/6 | ||
| Bogen | FAD | ||
| Bulbrite | 762285 | FAD | |
| Colortran | 176-001 | ||
| Colortran | 176-071 | ||
| Colortran | B6-32 | ||
| EYE (Iwasaki) | JPD650WC | FAD | |
| General Electric | 30325 | FAD-Q650T4/CL | |
| Imported Lamp Code | 603016 | ||
| Leitz | 098-724 | ||
| Mole Richardson | 4051 | ||
| Nuarc | VE-366 | ||
| Osram Sylvania | 54574 | FAD | Available |
| Osram Sylvania | 64551 | ||
| Osram Sylvania | 64725 | ||
| Philips | 6365R | ||
| Smith-Victor | 620040 | FAD (clear) | |
| Sunlite | 70200 | FAD | |
| Ushio | 1000471 | FAD, JPD120V-650WC | Available |
Equipment Used In | ||
| Brand | Model | Type |
| Altman Lighting | Q-LITE-JR | |
| Bogen | Model 7050 | |
| Eastman Kodak | 2610 | |
| Eastman Kodak | 2620 | |
| H. Wilson Corp. | 2200 | |
| H. Wilson Corp. | 2200B | |
| H. Wilson Corp. | 2200C | |
| Kenro | 2750 | |
| Leitz | Diascriptor 4 | |
| Mole Richardson | Teenie-Mole | |
| Nuarc | 1418SC2 | |
| Nuarc | 2024V-6 | |
| Nuarc | NUQ2600 | |
| Nuarc | NUQ5300 | |
| Nuarc | SST1418-1-6 | |
| Nuarc | SST1418-6 | |
| Nuarc | VIC1418-15-6 | |
| Nuarc | VIC1418-2 | |
| Nuarc | VIC1418-25 | |
| Nuarc | VIC1418-6 | |
| Nuarc | VV1418-6 | |
| Nuarc | VV1418BL-6 | |
| Nuarc | VV1418SS-6 | |
| Nuarc | VV1418SSBL-6 | |
| Smith-Victor | 740-SG | |
