FAL ANSI Code

FAL ANSI is a T4 lamp with a R7s base operating at 420 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FAL lamps.

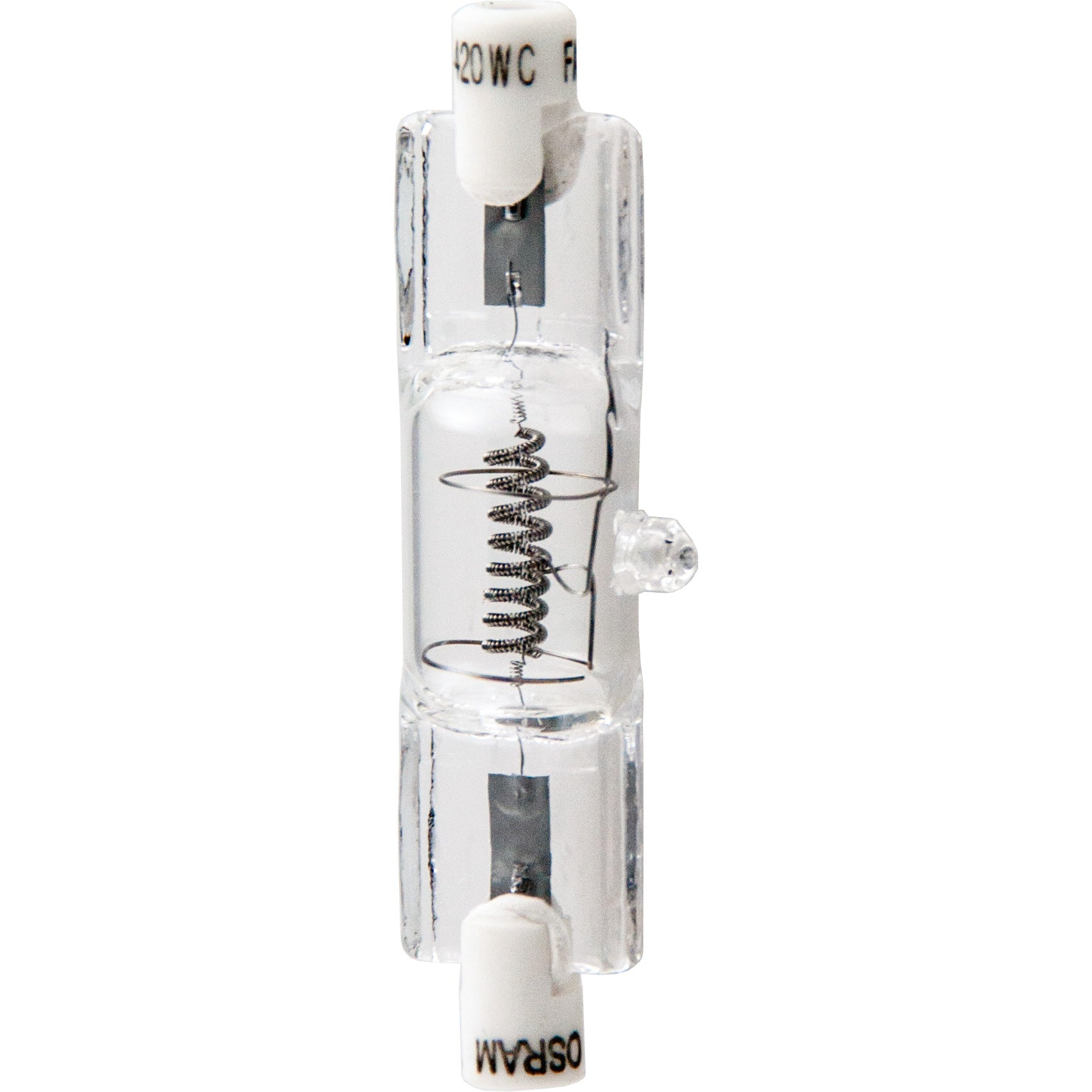

FAL Photograph

FAL

Electrical Specifications

Amps3.5
Volts120
Watts420

Photometrics

Candlepower880
Color Temperature3200
Light Center Length (LCL)63.6
Lumens11000

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 5/8

Operating Characteristics

Burn PositionAny
Life Hours75

General Information
Lamp CodeFAL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsFAL120V, 420W SSTV Halogen Bulb
Microlites120-420-75
Microlites120-420-75-A
Canimpex120-420-75
Canimpex120-420-75-A

Equipment Used In

BrandModelType
3M Model 66 (serials to 66AG1101E)
3M Model 60 (serials to 66AG1101E)
3M Model 66-AG
3M 60-AG-1101-E
3M Model 60
3M Model 66-AG (serials to 1101E)
AO Reichert Apollo 3641
AO Reichert Apollo 6 3651
AO Reichert Apollo 6 3650
AO Reichert Apollo 6 3672
AO Reichert Apollo 3669
AO Reichert Apollo 3650
AO Reichert Apollo 3651
AO Reichert Apollo 6 3653
AO Reichert Apollo 3654
AO Reichert Apollo 3672
AO Reichert Apollo 6 3669
AO Reichert Apollo 3653
AO Reichert Apollo 3640
AO Reichert Apollo 6 3654
Beseler Photo Marketing (Charles Beseler) Projection Optics Travelgraph 21000 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15700 Overhead Projector
Eastman Kodak Printer 5S3
Eastman Kodak Printer 5S5
Eastman Kodak VCB Lamphouse
Eastman Kodak Printer 2600
Kalart Victor 3540
Kalart Victor Apollo 6
Kalart Victor Apollo 2 3672
Kalart Victor Apollo 2
Kalart Victor Apollo 6 3653
Kalart Victor Apollo 6 3669
Kalart Victor Apollo 6 3651
Kalart Victor 3541
Kalart Victor Apollo 6 3654
Kalart Victor Apollo 6 3650
Projection Optics Co. Travel-Graph 21000 Projector
Victorlite Industries Visualcast 5000 Projector Opaque / Transparency
