FAP ANSI Code
FAP ANSI is a PAR36 lamp with a Ferrule Contact base operating at 650 watts and 120 volts. It has a color temperature of 5000 Kelvin. It has a Dichroic finish. The average rated life is 8 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FAP lamps.

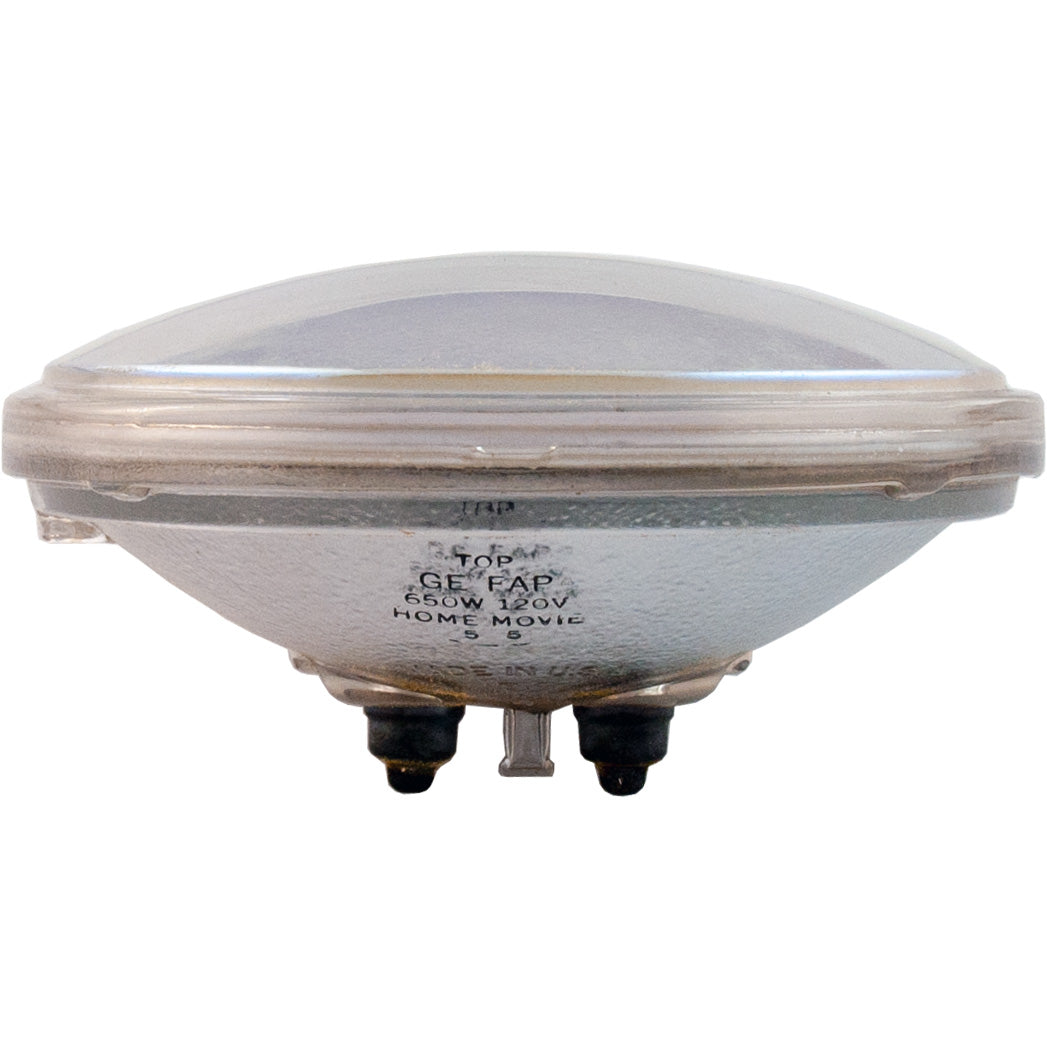

FAP Photograph |
 |
Electrical Specifications | |
| Amps | 5.42 |
|---|---|
| Volts | 120 |
| Watts | 650 |
Photometrics | |
| Beam Spread | Medium Flood |
|---|---|
| Candlepower | 35,000cp |
| Color Temperature | 5000 |
Physical Characteristics | |
| Base | Ferrule Contact |
|---|---|
| Bulb Shape | PAR36 |
| Filament | CC-8 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 2 7/16 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 8 |
General Information | |
| Lamp Code | FAP |
|---|---|
| Code Type | ANSI |
PAR36 Shape | |
 | |
| Diameter Designation | 36/8" |
|---|---|
| Glass Diameter | 4 1/2" (4.5") |
| Shape Code | PAR |
| Shape Classification | Parabolic Reflector |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Ferrule Contact Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | FAP | ||
FAP may also be listed as: | |||
| FAP ANSI | FAP ASA | FAP INTERLIGHT | FAP-120 ANSI |
| FAP-120 ASA | FAP-120V ANSI | FAP-120V ASA | FAP-120V-650W ANSI |
| FAP-120V-650W ASA | FAP/120V GENERAL-ELECTRIC | ||
