FAY ANSI Code
FAY ANSI is a PAR36 lamp with a Ferrules base operating at 650 watts and 120 volts. It has a color temperature of 5000 Kelvin. The beam angle is 22° x 30°. It has a Dichroic finish. The average rated life is 20 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FAY lamps.

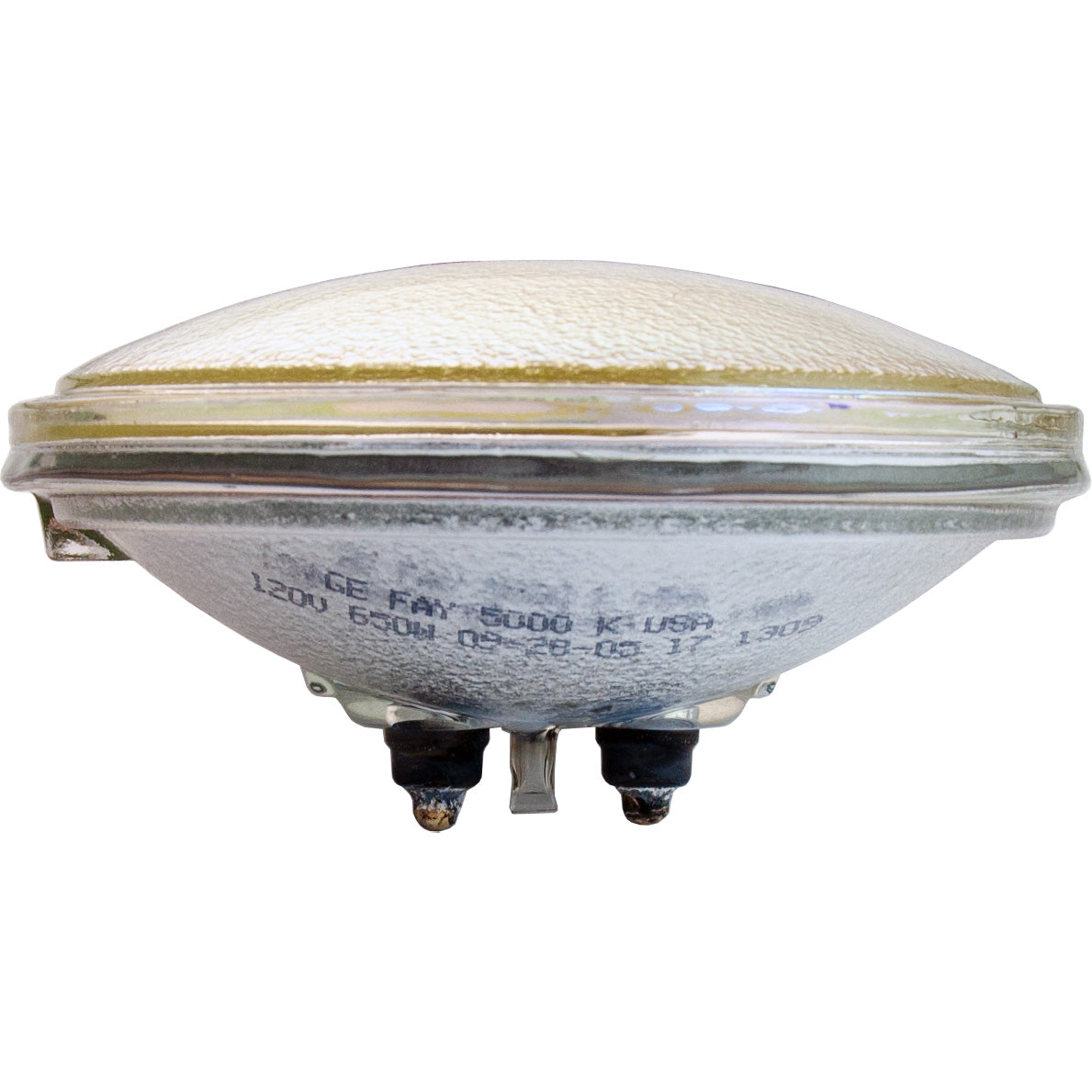

FAY Photograph |
 |
Electrical Specifications | |
| Amps | 5.42 |
|---|---|
| Volts | 120 |
| Watts | 650 |
Photometrics | |
| Beam Angle | 22° x 30° |
|---|---|
| Beam Spread | Medium Flood |
| Candlepower | 35,000cp |
| Color Temperature | 5000 |
| Lumens | 35000 |
Physical Characteristics | |
| Base | Ferrules |
|---|---|
| Bulb Shape | PAR36 |
| Filament | CC-6 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 2 7/16 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 20 |
General Information | |
| Lamp Code | FAY |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |

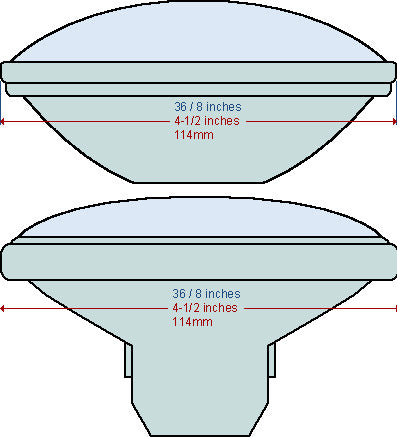

PAR36 Shape | |
 | |
| Diameter Designation | 36/8" |
|---|---|
| Glass Diameter | 4 1/2" (4.5") |
| Shape Code | PAR |
| Shape Classification | Parabolic Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

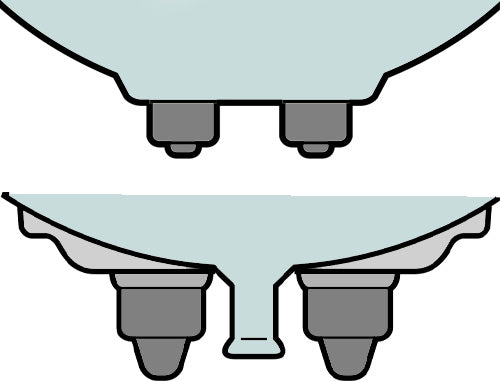

Ferrules Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-650-101Y | ||
| Canimpex | 120-650-101Y | ||
Equipment Used In | ||
| Brand | Model | Type |
| Altman Lighting | Punch Light | Studio / Stage |
FAY may also be listed as: | |||
| 176-154 | 41668 GENERAL-ELECTRIC | 650QPAR36-3D | 650QPAR36-3D120 |
| 650QPAR36-3D120V | 650WATT-QUARTZ-PAR36-3-D | 650WATT-QUARTZ-PAR36-3-D-120 VOLT | BW-FAY |
| FAY ANSI | FAY ASA | FAY GENERAL-ELECTRIC | FAY INTERLIGHT |
| FAY MICROLAMP | FAY SYLVANIA | FAY WIKO | FAY-120 ANSI |
| FAY-120 ASA | FAY-120 VOLT ANSI | FAY-120 VOLT ASA | FAY-120V ANSI |
| FAY-120V ASA | FAY-120V-650W | FAY-120V-650W ANSI | FAY-120V-650W ASA |
| FAY-120V-650W-FERRULES-PAR36-CC6-DICHROIC-35000CP-5000K-35H-ANY-2-7/16MOL-Q-STAGE-THEATRE-TV-VIDEO-DICHROIC-COATED-REFLECTOR-25X15DEG-BEAM | FAY-120V/120V/650W/FER/PAR36 ANSI | FAY-GE-41668-PAR-36/3D-DICH.-QUARTZ-SP-25X15DEG-650W.-FERRULE-MOLE-LIGHT | FAY-Q650PAR36/3D GENERAL-ELECTRIC |
| FAY-Q650PAR36/3D/120V GENERAL-ELECTRIC | FAY/120V GENERAL-ELECTRIC | FAY/120V/650W/FER ANSI | FAY/120V/650W/FER/PAR36 ANSI |
| H/120V/650W/FERRULES/PAR36/CC6/20H/FAY | Q/650/PAR36/ST/FL/3D/120V | Q650PAR36-3D | Q650PAR36-3D120 |
| Q650PAR36-3D120V | Q650PAR36/3D MICROLAMP | Q650WPAR36-3D | Q650WPAR36-3D120 |
| Q650WPAR36-3D120V | QUARTZ-650WATT-PAR36-3-D | QUARTZ-650WATT-PAR36-3-D-120 VOLT | SPQ650PAR36FERRULESCC6120V-FAY |
| SPQ650PAR36FERRULESCL120V-FAY | |||
