FBT ANSI Code
FBT ANSI is a T3.25 lamp with a E10 base operating at 150 watts and 30 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 6 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FBT lamps.

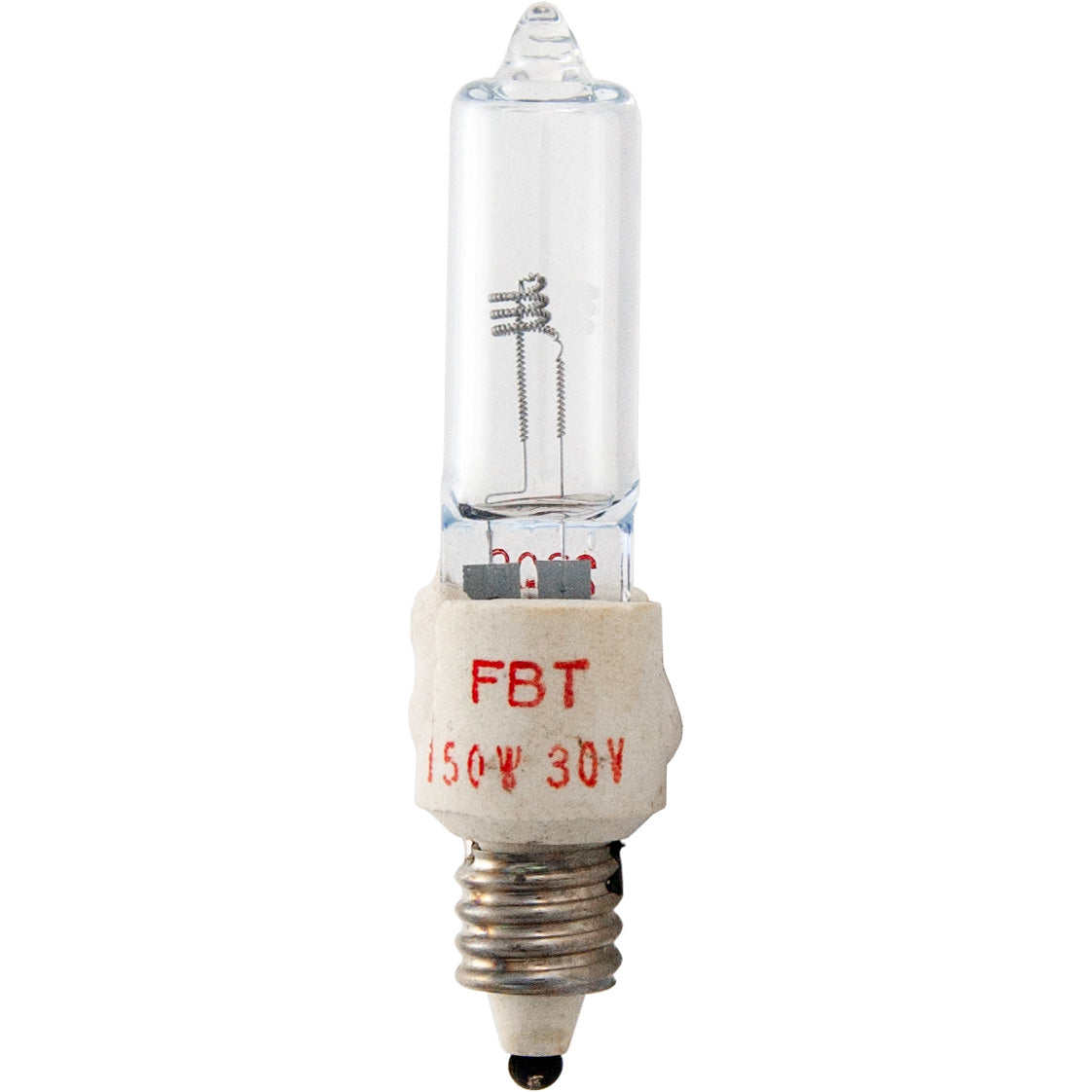

FBT Photograph |
 |
Electrical Specifications | |
| Amps | 5 |
|---|---|
| Volts | 30 |
| Watts | 150 |
Photometrics | |
| Candlepower | 330 |
|---|---|
| Color Temperature | 3400 |
| Light Center Length (LCL) | 27.5mm |
| Lumens | 5000 |
Physical Characteristics | |
| Base | E10 |
|---|---|
| Bulb Shape | T3.25 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 6 |
General Information | |
| Lamp Code | FBT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T3.25 Shape | |
 | |
| Diameter Designation | 3.25/8" |
|---|---|
| Glass Diameter | 13/32" (0.40625") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
E10 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 30-150-45T | ||
| Canimpex | 30-150-45T | ||
Equipment Used In | ||
| Brand | Model | Type |
| Cine 60, Inc. | Sun-Gun 6201A | Fill Light |
| Frezzolini / Frezzi | FL-250 | Stage / Studio |
FBT may also be listed as: | |||
| 1000479 USHIO | 54567 SYLVANIA | 54567-2 SYLVANIA | 761145 BULBRITE |
| FBT ANSI | FBT ASA | FBT BULB-DIRECT | FBT BULBRITE |
| FBT INTERLIGHT | FBT KONDO | FBT SYLVANIA | FBT USHIO |
| FBT WIKO | FBT-30 ANSI | FBT-30 ASA | FBT-30V ANSI |
| FBT-30V ASA | FBT-30V-150W ANSI | FBT-30V-150W ASA | JCV-30V-150-S USHIO |
| JCV/30V/150/E10 | JCV/30V/150/E10/CL | JCV30-150S USHIO | JCV30-150WS USHIO |
| JCV30V-150W | JCV30V-150WS USHIO | JCV30V-150WS/E10 USHIO | JCV30V-150WS/E10/AX/6H USHIO |
| JCV30V-150WS/FBT USHIO | |||
