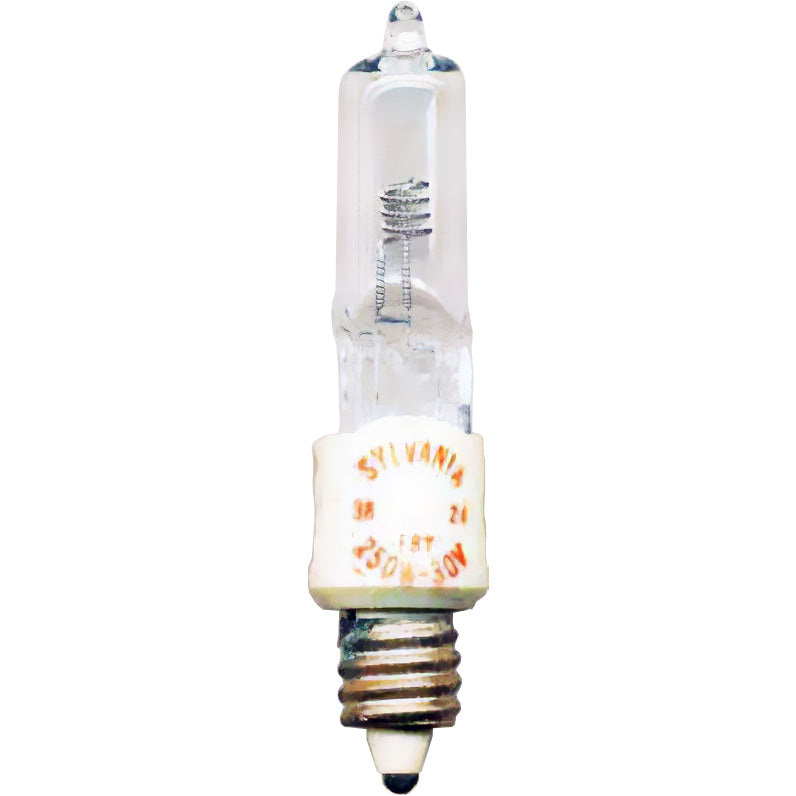

FBV ANSI Code

FBV ANSI is a T3.25 lamp with a E10 base operating at 250 watts and 30 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 6 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FBV lamps.

Electrical Specifications

Amps8.33
Volts30
Watts250

Photometrics

Candlepower560
Color Temperature3400
Light Center Length (LCL)27.5mm
Lumens7850

Physical Characteristics

BaseE10
Bulb ShapeT3.25
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 3/8

Operating Characteristics

Burn PositionAny
Life Hours6

General Information
Lamp CodeFBV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3.25 Shape

T3.25
Diameter Designation3.25/8"
Glass Diameter 13/32" (0.40625")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

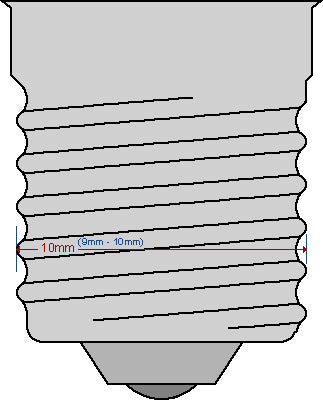

E10 Base

E10

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites30-250-45V
Canimpex30-250-45V

Equipment Used In

BrandModelType
Cine 60, Inc. Sun-Gun 6201A Fill Light
Frezzolini / Frezzi FL-250 Stage / Studio

FBV may also be listed as:
03050 WIKO1000480 USHIO20186354568 OSRAM
93657 OSRAMFBV ANSIFBV ASAFBV BULB-DIRECT
FBV INTERLIGHTFBV KONDOFBV MICROLAMPFBV OSRAM
FBV SYLVANIAFBV USHIOFBV WIKOFBV-30 ANSI
FBV-30 ASAFBV-30V ANSIFBV-30V ASAFBV-30V-250W ANSI
FBV-30V-250W ASAFBV/30V/250W OSRAMJCD-30V-250-M-1JCD-30V-250W-M-1
JCD30-250M1JCD30-250WM1JCD30V-250WMIJCV-30V-250-S USHIO
JCV30-250S USHIOJCV30-250WS USHIOJCV30V-250WJCV30V-250WS USHIO
JCV30V-250WS/E10 USHIOJCV30V-250WS/E10/AX/6H USHIOJCV30V-250WS/FBV USHIO
