FBW ANSI Code
FBW ANSI is a T4 lamp with a E10 base operating at 350 watts and 30 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 6 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FBW lamps.

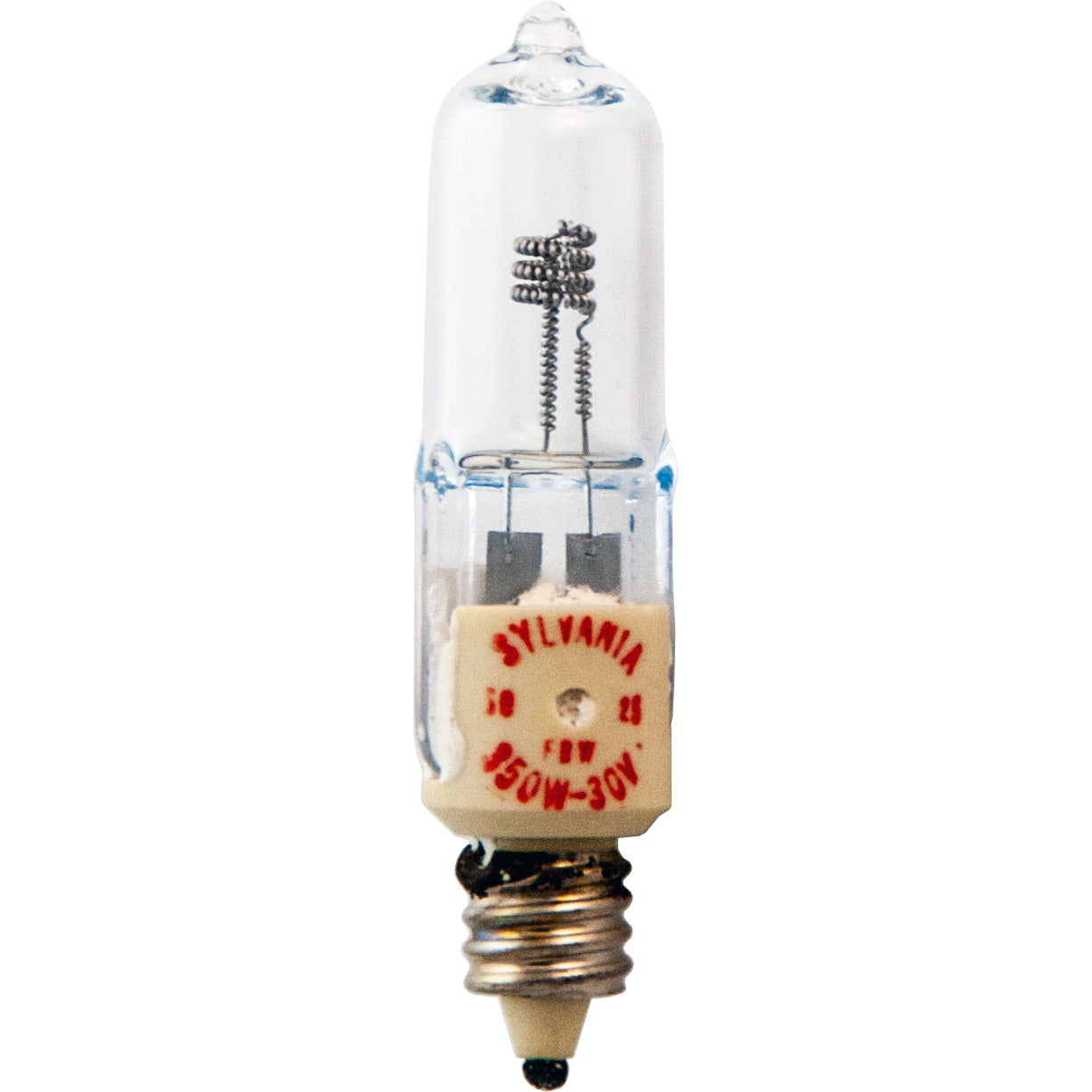

FBW Photograph |
 |
Electrical Specifications | |
| Amps | 11.7 |
|---|---|
| Volts | 30 |
| Watts | 350 |
Photometrics | |
| Candlepower | 780 |
|---|---|
| Color Temperature | 3400 |
| Light Center Length (LCL) | 27.5mm |
| Lumens | 10500 |
Physical Characteristics | |
| Base | E10 |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 6 |
General Information | |
| Lamp Code | FBW |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
E10 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 30-350-45W | ||
| Canimpex | 30-350-45W | ||
Equipment Used In | ||
| Brand | Model | Type |
| Cine 60, Inc. | Sun-Gun 6201A | Fill Light |
FBW may also be listed as: | |||
| 03060 WIKO | 031293030603 EIKO | 1000481 USHIO | 3129303060 WIKO |
| FBW ANSI | FBW ASA | FBW BULB-DIRECT | FBW EIKO |
| FBW INTERLIGHT | FBW KONDO | FBW SYLVANIA | FBW USHIO |
| FBW WIKO | FBW-30 ANSI | FBW-30 ASA | FBW-30V ANSI |
| FBW-30V ASA | FBW-30V-350W ANSI | FBW-30V-350W ASA | JCV-30V-350-S USHIO |
| JCV30-350S USHIO | JCV30-350WS USHIO | JCV30V-350W | JCV30V-350WS USHIO |
| JCV30V-350WS/E10 USHIO | JCV30V-350WS/E10/AX/6H USHIO | JCV30V-350WS/FBW USHIO | |
