FBX ANSI Code

FBX ANSI is a T4 lamp with a R7s base operating at 650 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Frosted finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FBX lamps.

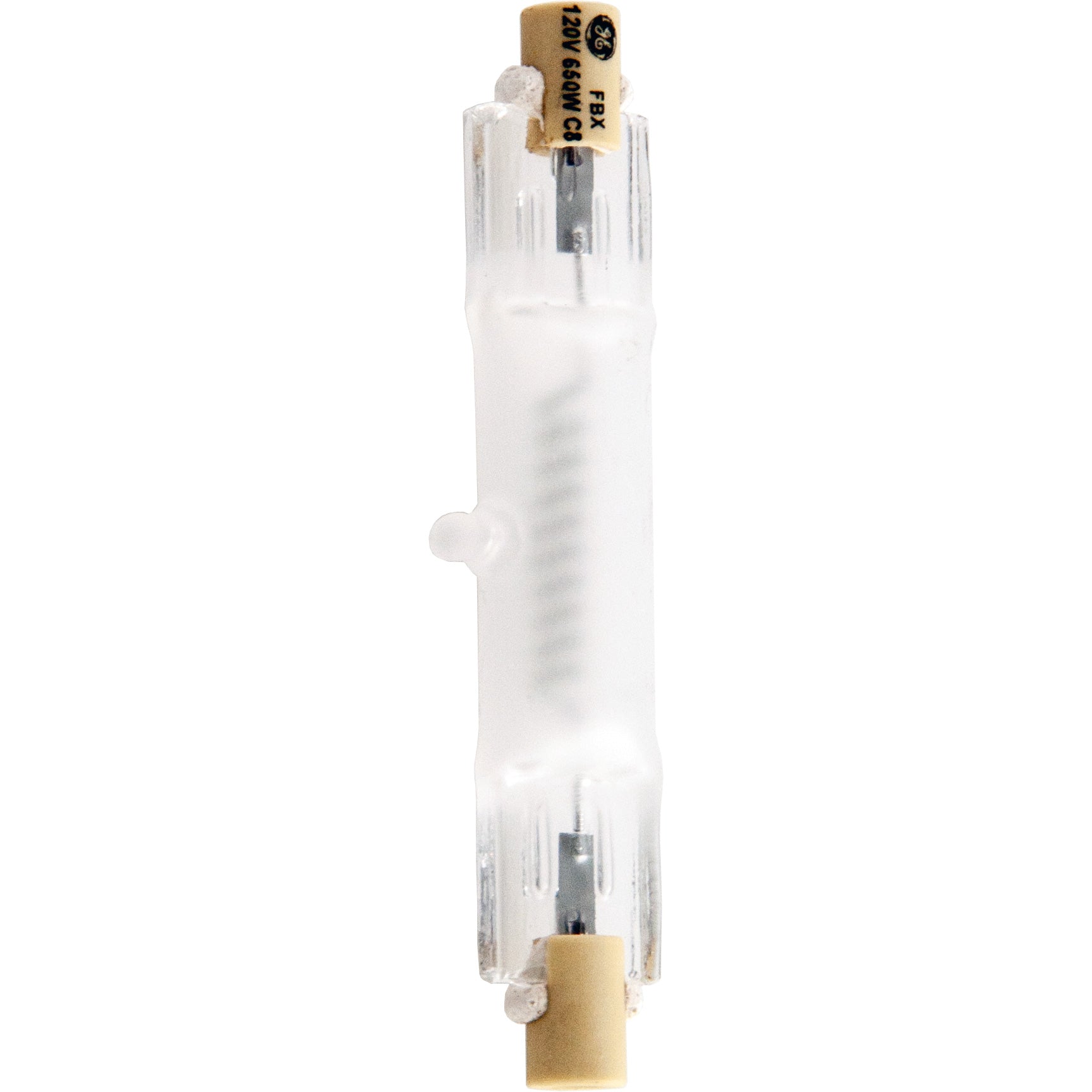

FBX Photograph

FBX

Electrical Specifications

Amps5.42
Volts120
Watts650

Photometrics

Candlepower1300
Color Temperature3200
Light Center Length (LCL)78.3
Lumens16500

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentCC-8
FinishFrosted
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionAny
Life Hours100

General Information
Lamp CodeFBX
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-357-7970
EquivalentsP2/6 FR

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-650-75F
Canimpex120-650-75F

Equipment Used In

BrandModelType
ARRI Arrilite 650 Stage / Studio
Altman Lighting Q-Lite Junior
Bogen Model 7050
Colortran Quartz King Dual 650 Open Face Video Light
Smith-Victor 740-SG
Strand Lighting Ianebeam Redhead Stage / Studio
Visual Graphics 62-12205-003

FBX may also be listed as:
03070 EIKO03070 UPC03070 WIKO031293030702 EIKO
048777131299 UPC1000482 BLV1000482 USHIO176-002 COLORTRAN
176-004176/00230343 GENERAL-ELECTRIC3129303070 WIKO
401106/FBX SMITH-VICTOR401987 SMITH-VICTOR6240-00-357-7970650-T4-Q PHILIPS
650QT4-4650QT4-4-120650QT4-4-120V650WATT-QUARTZ-T4-4
650WATT-QUARTZ-T4-4-120 VOLT650WATT-T4-QUARTZ PHILIPS740-SG/FBX SMITH-VICTORB6-32F
B6-32F COLORTRANB6-32F/120V/650W COLORTRANB6-34FFBX ANSI
FBX ASAFBX BULB-DIRECTFBX EIKOFBX GENERAL-ELECTRIC
FBX INTERLIGHTFBX LAMPTECHFBX MICROLAMPFBX SYLVANIA
FBX USHIOFBX WIKOFBX-120 ANSIFBX-120 ASA
FBX-120 VOLT ANSIFBX-120 VOLT ASAFBX-120V ANSIFBX-120V ASA
FBX-120V-650WFBX-120V-650W ANSIFBX-120V-650W ASAFBX-120V-650W-R7S-18 USHIO
FBX-120V-650W-R7S-T-4-CC-8-EXT.-FROSTED-16500L-3200K-100H-ANY-3-1/8MOL-5/8LCL-Q-STUDIOFBX-120V-650W-R7S-T4-CC8-EXTERNAL-FROSTED-16500L-3200K-100H-ANY-3-1/8MOL-5/8LCL-Q-STUDIOFBX-120V/120V/650W/R7S/79MMMOL ANSIFBX-650W-120V-R7S-18 USHIO
FBX-JPD120V650WCF-T15MM-80.3MMMOL-74.9MMCC-CC-8-16000L-3200K-100H-FROSTED-1000482 BLVFBX-JPD120V650WCF-T15MM-80.3MMMOL-74.9MMCC-CC-8-16000L-3200K-100H-FROSTED-1000482 USHIOFBX-P2/6-G.E.-30343-T4/4-4/FR-QUARTZ.-650W-R-7SFBX-Q650T4-4-1/24-MIH-650W GENERAL-ELECTRIC
FBX-Q650T4/4 GENERAL-ELECTRICFBX-Q650T4/4/120V GENERAL-ELECTRICFBX/120V GENERAL-ELECTRICFBX/120V/650W/R7S ANSI
FBX/120V/650W/R7S/79MMMOL ANSIFBX/T4-120V-650W-R7S-FROSTED LAMPTECHH/120V/650W/R7S/79MMMOL/FR/100HH/120V/650W/R7S/80.6MMMOL/FR/100H
H/120V/650W/R7S/80MMMOL/FR/100HH/120V/650W/R7S/81MMMOL/FR/100HH/120V/650W/R7S/T4/FR/100HH/120V/650W/R7S/T4/FR/100H/FBX
JPD-120 VOLT-650WATT-C-F USHIOJPD-120 VOLT-650WATT-CF-UAJPD-120V-650-C-F USHIOJPD-120V-650-CF-UA
JPD-120V-650W-CF-UAJPD-C-F KONDOJPD/120V/650W/9CFJPD120-650CF USHIO
JPD120-650CFUAJPD120-650WCF USHIOJPD120-650WCFUAJPD120V-6509WCF
JPD120V-650WCF USHIOJPD120V-650WCF/FBX USHIOJPD120V-650WCF/R7S/100H USHIOJPD120V-650WCF/R7S/81MM USHIO
JPD120V650WCF-CC8-100HR USHIOJPD120V650WCF-CC8-100HR/120V/650W/R7S-18 USHIOJPD120V650WCF-CC8-100HR/120V/650W/R7S-18/FBX USHIOJPD120V650WCF-CC8-100HR/FBX USHIO
Q-650-T4 PHILIPSQ-650W-T4 PHILIPSQ650T4-4 PHILIPSQ650T4-4-120 PHILIPS
Q650T4-4-120V PHILIPSQ650T4/4 MICROLAMPQ650WT4-4 PHILIPSQ650WT4-4-120 PHILIPS
Q650WT4-4-120V PHILIPSQUARTZ-650WATT-T4 PHILIPSQUARTZ-650WATT-T4-4 PHILIPSQUARTZ-650WATT-T4-4-120 VOLT PHILIPS
R7S-18-120V-650W-FBX-JPD120V-650WCF-T15MM-80.3MMMOL-74.9MMCC-CC-8-16000L-3200K-100H-FROSTED-1000482 BLVR7S-18-120V-650W-FBX-JPD120V-650WCF-T15MM-80.3MMMOL-74.9MMCC-CC-8-16000L-3200K-100H-FROSTED-1000482 USHIOS-02508 HIKARISPQ650T4R7SFR120V
SPQ650T4R7SFR120V-FBXSPQ650T4RSCFR120VSPQ650T4RSCFR120V-FBX
