FBY ANSI Code

FBY ANSI is a T6 lamp with a R7s-18 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Frosted finish. The average rated life is 150 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FBY lamps.

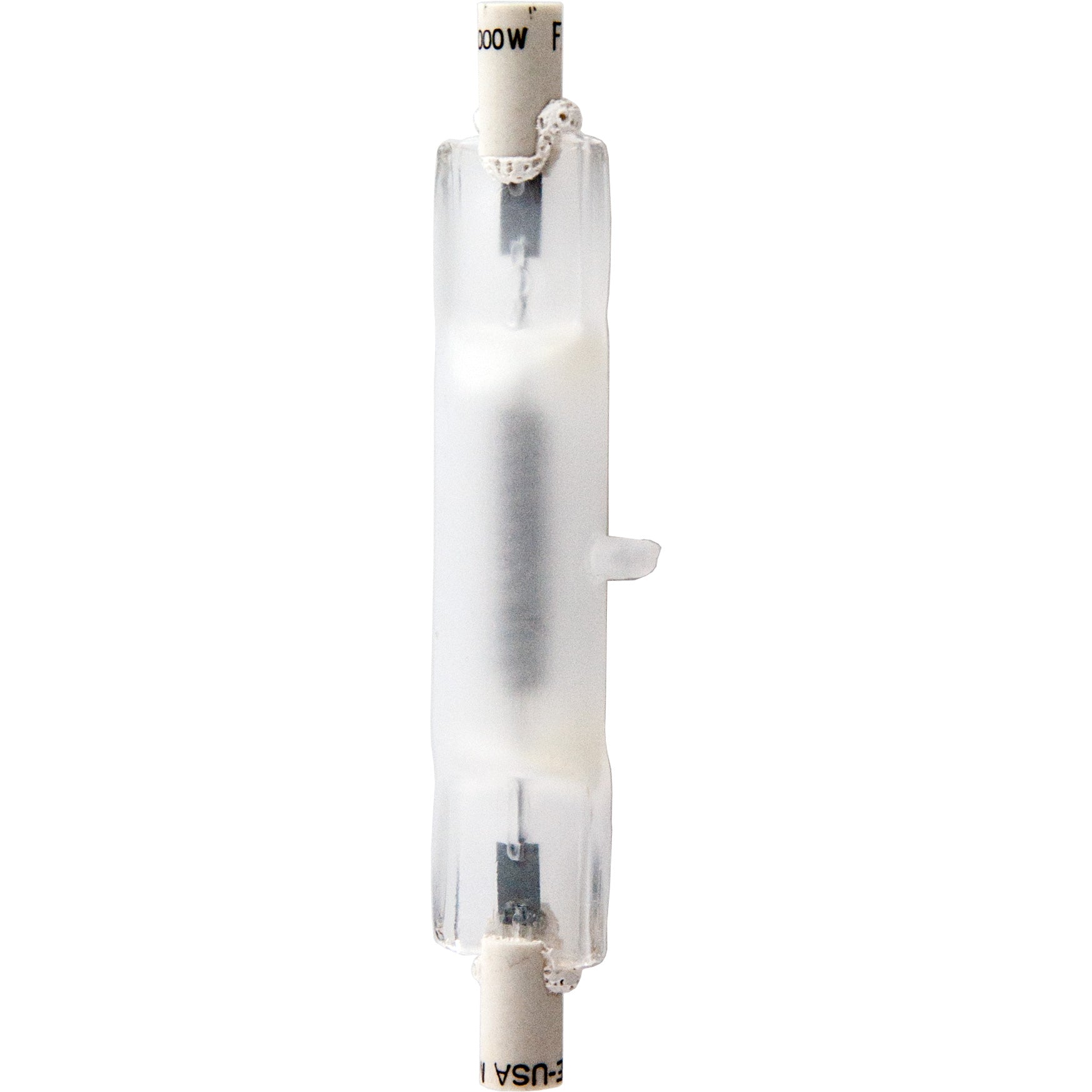

FBY Photograph

FBY

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2100
Color Temperature3200
Light Center Length (LCL)91.8
Lumens26000

Physical Characteristics

BaseR7s-18
Bulb ShapeT6
FilamentCC-8
FinishFrosted
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours150

General Information
Lamp CodeFBY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s-18 Base

R7s-18

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-012
ColortranB10-32F
General Electric30374FBY-Q1000T5/4
Industry CodeQ1000T5/4
Osram Sylvania53996FBY
Smith-Victor401988FBY (frosted)
Ushio1000483FBY, JPD120V-1000WC5F
Microlites120-1000-75YF
Canimpex120-1000-75YF

Equipment Used In

BrandModelType
Olec AL1KT-K2 Graphic Arts
Smith-Victor 720-SG
