FCA ANSI Code
FCA ANSI is a T4 lamp with a R7s base operating at 625 watts . It has a color temperature of 3400 Kelvin. It has a Frosted finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FCA lamps.

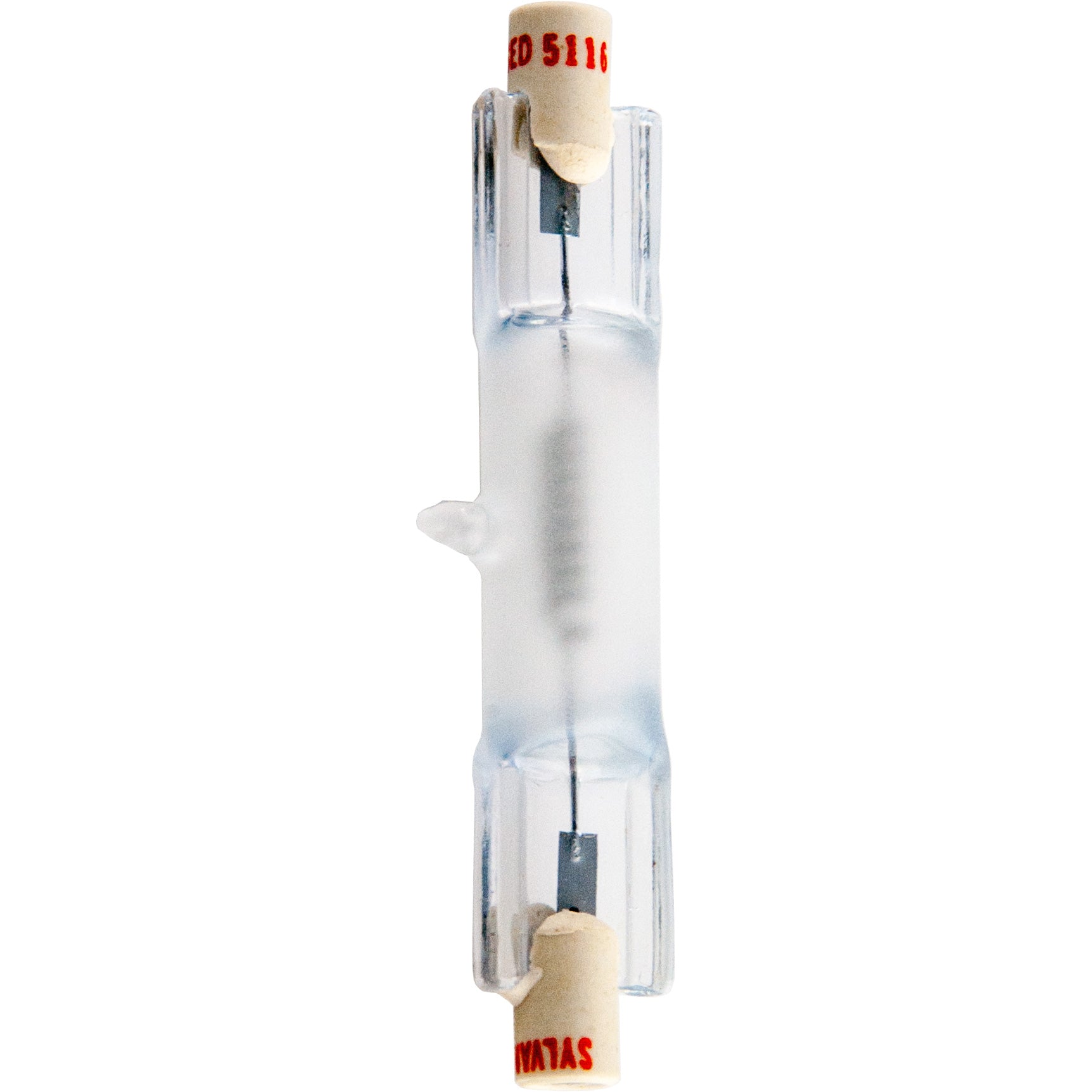

FCA Photograph |
 |
Electrical Specifications | |
| Watts | 625 |
|---|---|
Photometrics | |
| Color Temperature | 3400 |
|---|---|
| Light Center Length (LCL) | 78.3 |
| Lumens | 19000 |
Physical Characteristics | |
| Base | R7s |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Frosted |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | FCA |
|---|---|
| Code Type | ANSI |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
R7s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | FCA | ||
