FCB ANSI Code

FCB ANSI is a T5 lamp with a R7s-18 base operating at 600 watts and 120 volts. It has a color temperature of 3250 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FCB lamps.

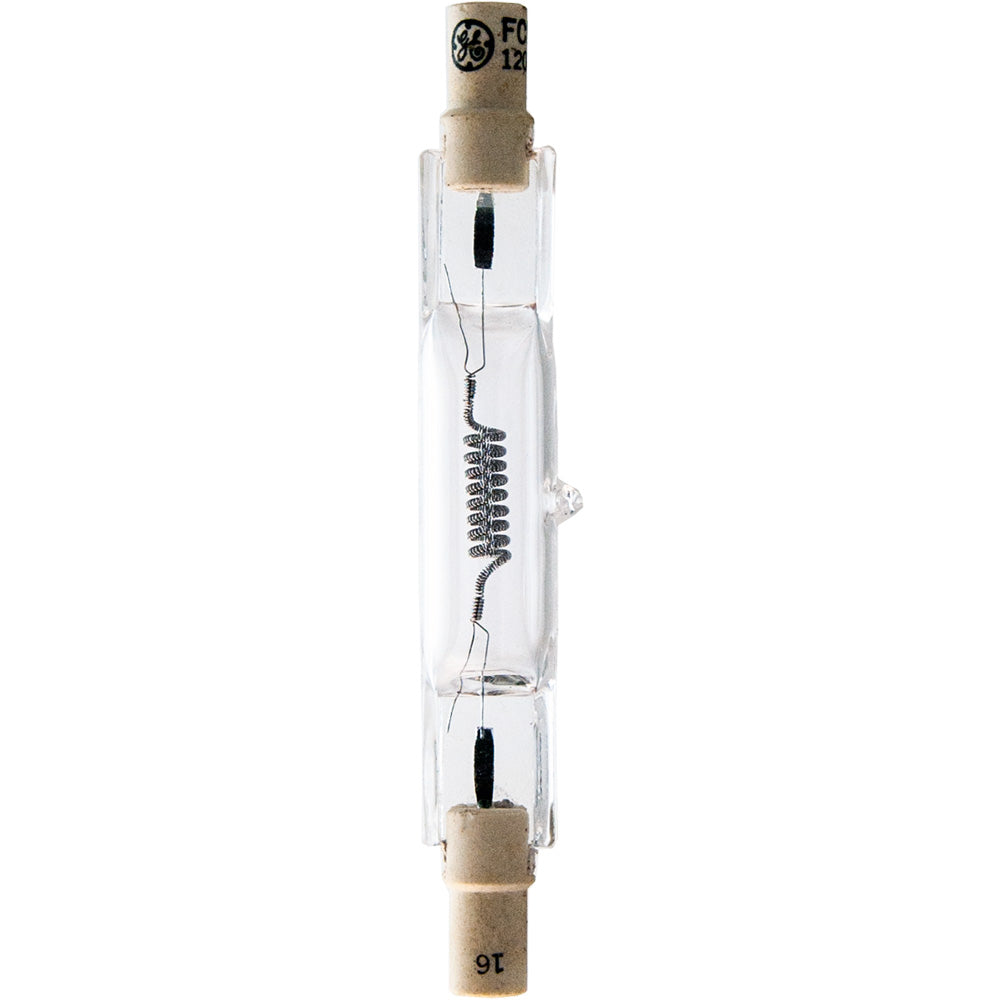

FCB Photograph

FCB

Electrical Specifications

Amps5
Volts120
Watts600

Photometrics

Candlepower1400
Color Temperature3250
Light Center Length (LCL)91.8
Lumens17000

Physical Characteristics

BaseR7s-18
Bulb ShapeT5
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionAny
Life Hours75

General Information
Lamp CodeFCB
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsA1/228 120V

Substitution Notes
For 240V Use FEA

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s-18 Base

R7s-18

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
3M78-8454-3470-0
Atlas/ThornA1/228
Brown2-14009-000 (600W)
Bulbrite762290FCB
BulbtronicsBT50-5420
Colortran176-151
Eiko03100FCB
EYE (Iwasaki)JPD600WCFCB
General Electric29598FCB
Imported Lamp Code605031
Imported Lamp CodeJPD120V600W/B/FCB
OlecL6C2
Osram Sylvania54483FCB
Philips12260R/120V
Sunlite70202FCB
Ushio1000486FCB, JPD120V-600WD
Microlites120-600-75B
Canimpex120-600-75B

Equipment Used In

BrandModelType
3M Model 66 (serials over 66AG1101E, can use BRH w/ heat adaptor kit)
3M Model 66 (serials over 66AG1101E)
3M Model 66 (over 66AG1101E)
3M Model 66-AG
3M Model 66-AG (serials over 1101E, can use BRH w/ heat adaptor kit)
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17628-AA
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17683-AA
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17683-EE Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17627-EE
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17683-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCB Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17628-EE
Beseler Photo Marketing (Charles Beseler) Porta-Scribe G-100-XX
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCBT
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17682-EE
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17627-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCBT-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCB-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCBT-FF
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15700-FCB
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 15710-FCBT-BB
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17682-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17627-AA
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17628-CC
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17682-AA
Beseler Photo Marketing (Charles Beseler) Porta-Scribe G-100
Brown BN2000 Camera
Brown BN5000 Camera
Brown BM-2000 Graphic Arts
Brown BM-3000 Graphic Arts
Brown BM-4000 Graphic Arts
Buhl 200 Series
Buhl 80/12
Buhl 80/12-CL
Buhl Model 80
Buhl 80/12-LC
Buhl 80/12-TC
Meopta Meotar
Olec AAL6CX Graphic Arts
Olec AAL1KT Graphic Arts
Olec AL1KT
Olec AAL1KT-C6 Graphic Arts
Olec AL6CX
Olec AL1KT-C6
Olec AAL16P Graphic Arts
Olec AL16P
Projection Optics Co. Travel-Graph 21101-EE
Projection Optics Co. Travel-Graph 21000-RX-CC
Projection Optics Co. Travel-Graph 21106
Projection Optics Co. Travel-Graph 21000-RXB-CC
Projection Optics Co. Travel-Graph 21106 Resolute
Projection Optics Co. Travel-Graph 21101-CC
Projection Optics Co. Travel-Graph 21101-AA
Projection Optics Co. Travel-Graph L-101-XX
Projection Optics Co. Travel-Graph L-101
Strand Lighting Ianebeam Redhead Stage / Studio
Welch Allyn 03100 P-OTO

Sources

  • "Projection Lamp and Equipment Guide." Guide. GE Lighting, .
  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
