FCH ANSI Code
FCH ANSI is a T4 lamp with a R7s base operating at 650 watts and 120 volts. It has a Clear finish. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FCH lamps.

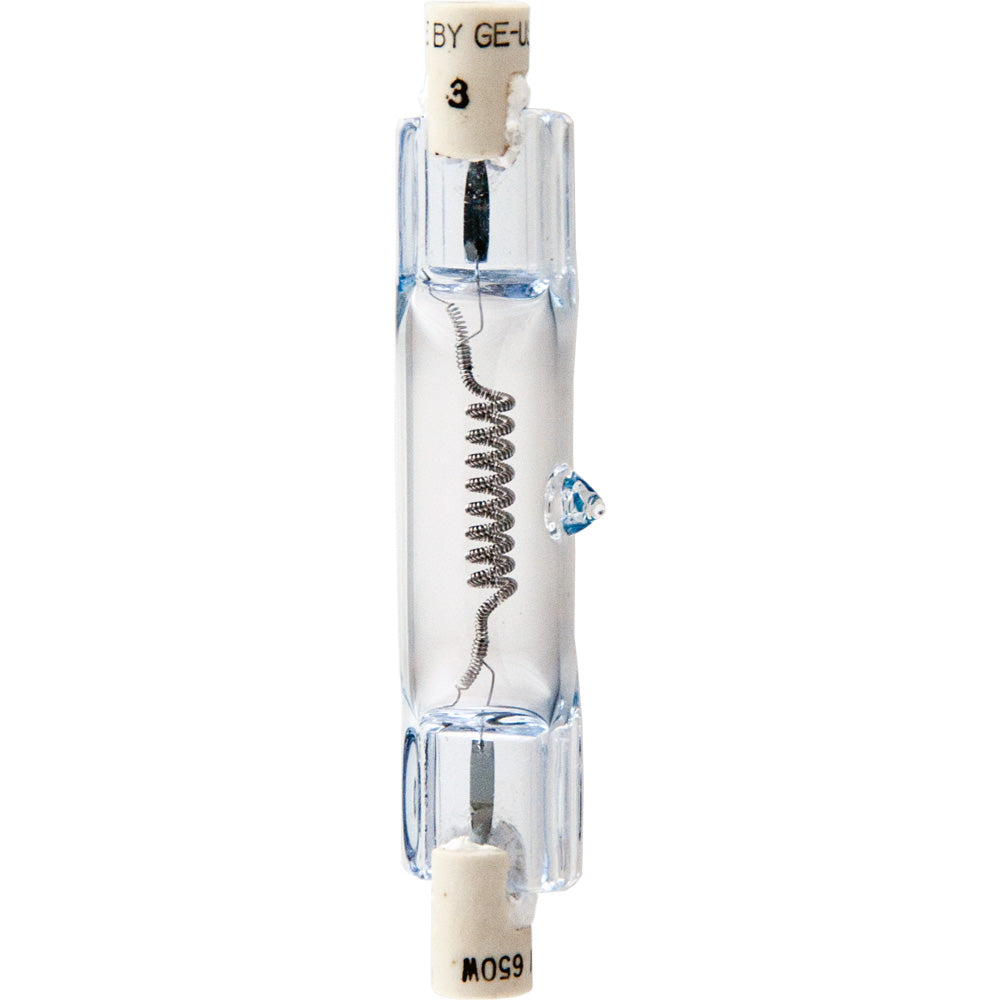

FCH Photograph |
 |
Electrical Specifications | |
| Amps | 5.42 |
|---|---|
| Volts | 120 |
| Watts | 650 |
Photometrics | |
| Light Center Length (LCL) | 0.75" (19mm) |
|---|---|
Physical Characteristics | |
| Base | R7s |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2.88" (73mm) |
Operating Characteristics |
General Information | |
| Lamp Code | FCH |
|---|---|
| Code Type | ANSI |
| Related Categories | Halogen Capsule Double-End |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
R7s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| 3M | 78-8454-3463-4E | FCH | |
| General Electric | FCH | FCH-120V-650W | |
