FCP ANSI Code
FCP ANSI is a T4 lamp with a E11 base operating at 375 watts and 120 volts. It has a color temperature of 3400 Kelvin. It has a Ext. frosted finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FCP lamps.

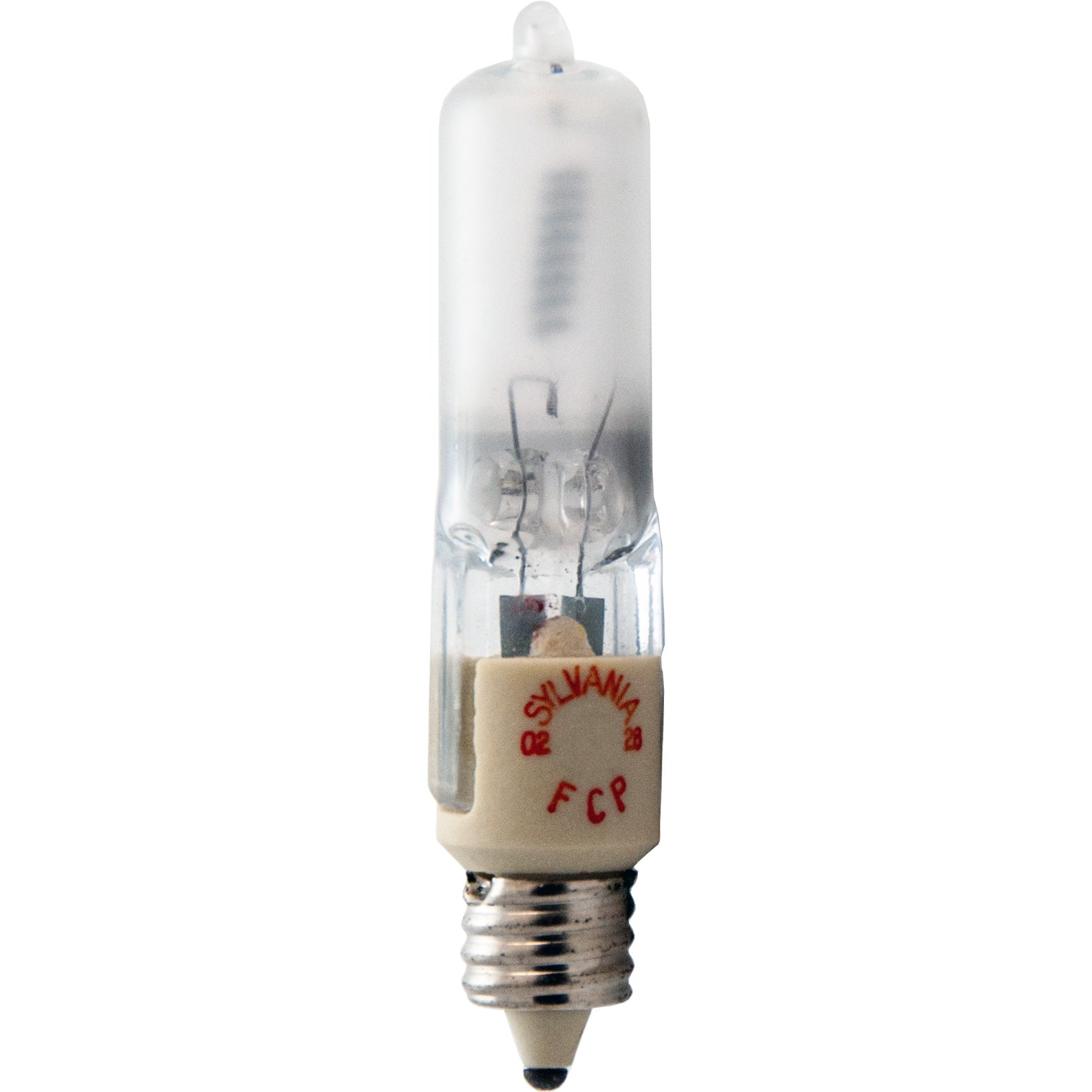

FCP Photograph |
 |
Electrical Specifications | |
| Amps | 3.13 |
|---|---|
| Volts | 120 |
| Watts | 375 |
Photometrics | |
| Candlepower | 840 |
|---|---|
| Color Temperature | 3400 |
| Light Center Length (LCL) | 1 2/5 |
| Lumens | 10500 |
Physical Characteristics | |
| Base | E11 |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Ext. frosted |
| Max Overall Length (MOL) | 2 5/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 10 |
General Information | |
| Lamp Code | FCP |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

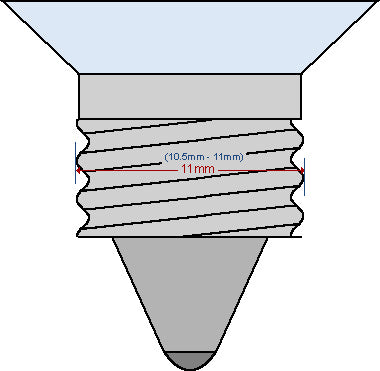

E11 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-375-45 | ||
| Canimpex | 120-375-45 | ||
FCP may also be listed as: | |||
| FCP ANSI | FCP ASA | FCP INTERLIGHT | FCP SYLVANIA |
| FCP WIKO | FCP-120 ANSI | FCP-120 ASA | FCP-120V ANSI |
| FCP-120V ASA | FCP-120V-375W ANSI | FCP-120V-375W ASA | |
