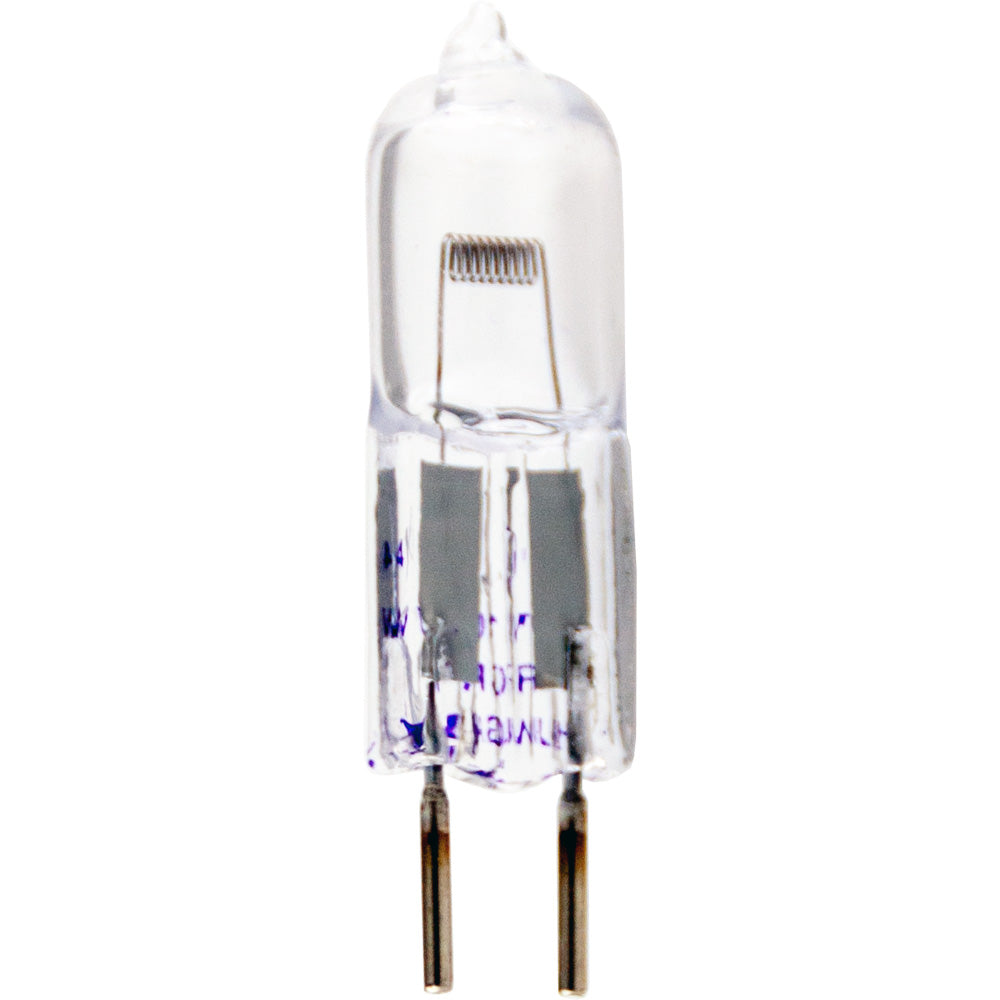

FCR ANSI Code
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 12 |
| Watts | 100 |
Photometrics | |
| Candlepower | 230 |
|---|---|
| Color Temperature | 3300 |
| Lumens | 2800 |
Physical Characteristics | |
| Base | GY6.35 |
|---|---|
| Bulb Shape | T3.5 |
| Filament | FC-6 |
| Finish | Clear |
| Light Center Length (LCL) | 1 3/16 |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | FCR |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Aluma-Lite | RL-100 | ||
| AMBICO | V-0201 | ||
| American DJ | ZB-FCR | ||
| AO Reichert | 2052 | ||
| AO Reichert | 9-8600-15 | ||
| Arkon | FCR | ||
| Atlas/Thorn | A1/215 | ||
| Bulbrite | 761150 | FCR | |
| Combined Products Corp. (CPC) | LUX FCR | ||
| Eiko | 10403 | FCR | |
| EYE (Iwasaki) | JC12V100W/G2 | FCR | |
| General Electric | 14876 | FCR | |
| Grainger | 6VM91 | ||
| Imported Lamp Code | 140110 | ||
| Imported Lamp Code | 50510 | ||
| Imported Lamp Code | 605012 | ||
| Imported Lamp Code | PN160 | ||
| Kavo | 905-8500 | ||
| Leitz | 193-049 | ||
| Leitz | 500-037 | ||
| Leitz | 500-974 | ||
| Leitz Wild | 193-049 | ||
| Nikon | 76513 | ||
| Olympus | 8-C401 | ||
| Optex Argus | FCR | ||
| Osram Sylvania | 54036 | FCR 64625 HLX | Available |
| Osram Sylvania | 54248 | FCR 64625 HLX | Available |
| Osram Sylvania | HLX 64625 | ||
| Philips | 261016 | FCR 100W 12V 100PK | Available |
| Philips | 7023 | ||
| Phoenix | 03-102 | ||
| Photoco/Aztec | FCR | ||
| Propper | 193049 | ||
| Rokunar | RVL160B | ||
| Sakar (Cam Products) | D-100 | ||
| Sima | FCR | ||
| Smith-Victor | 401915 | FCR | |
| Sunlite | 70270 | FCR | |
| Sun Pak | JC 12V 100W | ||
| Swift | MA-782 | ||
| Unomat | 12V 100W | ||
| Ushio | 1000490 | FCR, JC12V-100W | Available |
| Ushio | 8000128 | ||
| Vickers | M32-05-45 | ||
| Zeiss | 3800-59-1660 | ||
Equipment Used In | ||
| Brand | Model | Type |
| AMBICO | V-0170 | |
| AMBICO | V-0180 | |
| AMBICO | V-0185 | |
| AMBICO | V-0200 | |
| AMBICO | V-0201 | |
| AMBICO | V-1500 | |
| AMBICO | V-8500 | |
| Agfa-Gevaert | COPEX L16M | |
| Agfa-Gevaert | COPEX L35 | |
| Agfa-Gevaert | COPEX LF101 | |
| Agfa-Gevaert | COPEX LF202 | |
| Agfa-Gevaert | COPEX LF303 Note | |
| Agfa-Gevaert | COPEX LF404 | |
| Agfa-Gevaert | COPEX LK200 (R/P) | |
| Agfa-Gevaert | COPEX LK300 (R/P) Note | |
| Agfa-Gevaert | COPEX LP3 | |
| Agfa-Gevaert | COPEX LP4 | |
| Agfa-Gevaert | LF505 | |
| Agfa-Gevaert | LK-200 (R/P) | |
| Agfa-Gevaert | LK300 (R/P) | |
| Agfa-Gevaert | LP-1 | |
| Agfa-Gevaert | LP-3 | |
| Agfa-Gevaert | LP-4 | |
| Alan Gordon Enterprises A-G-E | Plan Vu II | |
| Allen Microfilm | 163C | |
| Allen Microfilm | 163H | |
| Allen Microfilm | 163M | |
| Allen Microfilm | DA2 | |
| Allen Microfilm | DA3 | |
| Allen Microfilm | LH15 | |
| Allen Microfilm | LH19 | |
| Allen Microfilm | LM19 | |
| Allen Microfilm | Multi view | |
| Allen Microfilm | SA2 | |
| Allen Microfilm | SA3 | |
| Allen Microfilm | Scamp | |
| Alos A.G. | 21 | |
| Alos A.G. | 21/23 (R/P) | |
| Alos A.G. | 22 | |
| Alos A.G. | 22/23 (R/P) | |
| Aluma-Lite | VLA-AC/DC | |
| Aluma-Lite | VLA-LT | |
| American DJ | Beamer-16 | |
| Bauer | T-12 | |
| Bauer | T-12S | |
| Bauer | T-1S | |
| Bauer | T-2 | |
| Bauer | T-22 | |
| Bell and Howell | SR V | |
| Borg Warner | FP3-S | |
| CMM | Consul | |
| CMM | LCM 35 | |
| CMM | LPM300 | |
| CMM | LUF 1635 | |
| Canon | 300 | |
| Canon | 300 Universal | |
| Canon | 300A | |
| Canon | 300L | |
| Canon | 300S | |
| Canon | 301 | |
| Canon | 301A | |
| Canon | 302 Canorama | |
| Caps Microfilm | Alpha | |
| Caps Microfilm | PJ 100 Series | |
| Caps Microfilm | PJ 12 | |
| Caps Microfilm | PJ 13 | |
| Caps Microfilm | PJ 14 | |
| Caps Microfilm | PJ 200 Series | |
| Caps Microfilm | PJ 3R (R/P) | |
| Caps Microfilm | PJ 11 | |
| Caps Microfilm | RNA 3 | |
| Caro | Acor Auto | |
| Caro | Acor Presse | |
| Combined Products Corp. (CPC) | LUX XL-2000 (DC) | |
| Deckart | DK 11 | |
| Deckart | DK 12 | |
| Deckart | DK 12B | |
| Deckart | DK9 | |
| Dukane | 14 Explorer | |
| Dukane | 27 A 25 Explorer | |
| Dukane | 27A25 | |
| Dukane | 27A25A | |
| Dukane | 27A25B | |
| Dukane | 27A77 | |
| Dukane | 27AZ77 | |
| Dukane | MMR 16 +35 | |
| Eastman Kodak | Recordak Trimlite Series F | |
| Eastman Kodak | Recordak Trimlite Series R | |
| Eastman Kodak | Recordak Trimlite Series RC | |
| Eumig | Mark M | |
| Eumig | Mark S-701 | |
| Eumig | Mark S-709 | |
| Eumig | Mark-8 | |
| Eumig | Regular | |
| Eumig | Super | |
| Eurocom Data | Eurocom 100 | |
| GAF (Aarque Systems) | 7821 | |
| GAF (Aarque Systems) | 7831 | |
| GAF (Aarque Systems) | NPR | |
| GAF (Aarque Systems) | RPA (R/P) | |
| GAF (Aarque Systems) | RPA-S (R/P) | |
| Hanel | BP50 | |
| Harwood | Pro-Lux/100 | |
| Heurtier | 6-24 | |
| Holtronics | Three 16M | |
| Imak | Caravel Dual 8 | |
| Inami | w/ fiber optic piece | |
| Jenoptic Jena GmbH | Dokumator DL 2 | |
| K&E | 7724 | |
| K&E | PJ-12 (Caps) | |
| Kaiser | Camlight 100 | |
| Kalle | LC 460 | |
| Kalle | LC 461 | |
| Kalle | QM377 | |
| Kalle | RV410 | |
| Kalle | RV412 | |
| Kardex | MFL 2 | |
| Kardex | MLF 3A | |
| Kardex | MLF 4 | |
| Kardex | MLF 4A | |
| Karto | MR-10 | |
| Karto | MR-10A | |
| Karto | MR-50 | |
| Konishiroku | Sakura 442 D | |
| Konishiroku | Sakura 481 B | |
| Kowa | Vicon Polar 2 | |
| Leitz | Biopromar | |
| Leitz | Comp. Scope | |
| Leitz | Dialux 20/LH102Z | |
| Leitz | Dust Proj. | |
| Leitz | LH100 | |
| Leitz | LH100Z | |
| Leitz | LH102Z | |
| Leitz | Metalloplan/LH100Z | |
| Leitz | Orthoplan | |
| Leitz | PP111 | |
| Leitz | Proj. Strassman | |
| Leitz | Trichinscope | |
| Leitz | UV Microbeam | |
| Leitz Wild | Universal Lamp M12 | |
| Leitz Wild | Universal Lamp M20 | |
| Leitz Wild | Universal Lamp M50 | |
| Leitz Wild | Universal Lamp M501 | |
| MC Organization | Renaissance RN | |
| Map | MLF 2 | |
| Map | MLF 2A | |
| Map | MLF 3 | |
| Map | MLF 3A | |
| Map | MLF 4 | |
| Map | MLF 4A | |
| Map | MLF 4S | |
| Marshall-Smith | Com F-S | |
| Marshall-Smith | DO Portable | |
| Marshall-Smith | Midget | |
| Marshall-Smith | Quality Comfiche Checker SL | |
| Marshall-Smith | Speedy View | |
| Micro Design | 900 (fanless) | |
| Micro Design | 910 (fanless) | |
| Micro Design | 920 (fanless) | |
| Micro Design | 930 (fanless) | |
| Micro Design | 950 (fanless) | |
| Micro Design | Com-150F (fanless) | |
| Microbox | RPA S (R/P) | |
| Microfilm Engineering | 16mm Reader | |
| Microfilm Engineering | 2 | |
| Microfilm Engineering | A2 | |
| Microfilm Engineering | AD/MA 43 | |
| Microfilm Engineering | Islander | |
| Microfilm Engineering | Library Reader | |
| Microfilm Engineering | MEC 76 Scanner | |
| Microfilm Equipment Mfg. | 16mm Retrival Reader | |
| Microfilm Equipment Mfg. | Atlas M-28 | |
| Microfilmfotostat | Panoramico 504 | |
| Microfilmfotostat | Panoramico 504G | |
| Microform Communications | Minor (16mm) | |
| Mitek | 16mm Motorized | |
| NCR Corp. | 456-4 (early models) | |
| NCR Corp. | 456-400 | |
| NCR Corp. | G2 | |
| Nikon | all 100 watt quartz-halogen illuminators | |
| Nikon | KBB00709-501 | |
| OCE Industries | 3560 | |
| OCE Industries | 3665 | |
| Office Equipment | Visette | |
| Olympus | BHM-LSH-2 | |
| Olympus | SZH-1LLD | |
| Optex Argus | VA-0150 (DC) | |
| Optex Argus | VA-0170 | |
| Optex Argus | VS-120 | |
| Optex Argus | VS-129 | |
| Pacemark | VL/100BP | |
| Pentagon | VEB Pentakta L100 | |
| Phoenix | 03-100 (DC) | |
| Photoco/Aztec | AZVL2 (DC) | |
| Radiant-Pathe | Pathe-Noris Super 8 3830 | |
| Radiant-Pathe | Pathe-Noris Super 8 3830Z | |
| Radiant-Pathe | Pathe-Noris Super 8 3840 | |
| Radiant-Pathe | Pathe-Noris Super 8 3840Z | |
| Realist | 3360 Swinger (Bright) | |
| Realist | 3361 | |
| Realist | 3361-2 | |
| Realist | 3371 | |
| Realist | 3371-2 Swinger | |
| Regma | FV1 | |
| Regma | FV2 | |
| Regma | L Com 2 | |
| Regma | MV2 | |
| Regma | MV3 | |
| Regma | MV4 | |
| Remington | MLE | |
| Remington | MLF4 | |
| Remington | MLF4A | |
| Remington | RPK | |
| Rokunar | RVL150 | |
| SMA (Shaut Mikrofilmtechnik) | Printer A2 | |
| Sakar (Cam Products) | V-1500 (DC) | |
| Smith-Victor | BL110 | |
| Smith-Victor | MICRO 100 | |
| Smith-Victor | MP100A | |
| Solidex | VL-9000 | |
| Solidex | VL-9100 | |
| Solidex | VL-9200 | |
| Sun Pak | Triac 1001 | |
| University Microfilms | 1212 (Bright) | |
| University Microfilms | 1414 | |
| University Microfilms | 3360 Elite | |
| University Microfilms | 350 | |
| Unomat | 700 | |
| Unomat | 800 | |
| Unomat | 801 series | |
| WSI | Renaissance | |
| Xerox | 1212 (Bright) | |
| Zeiss | Movilux DS-8 | |
| Zeiss | Movilux S-8 | |
| Zeiss | Multipurpose Microscope Illuminator 100W and 250W Lamphouse | |
| Zeiss | P-502 | |
| Zeiss | Perkeo Automat J | |
