FDB ANSI Code

FDB ANSI is a T12 lamp with a R7s base operating at 1500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FDB lamps.

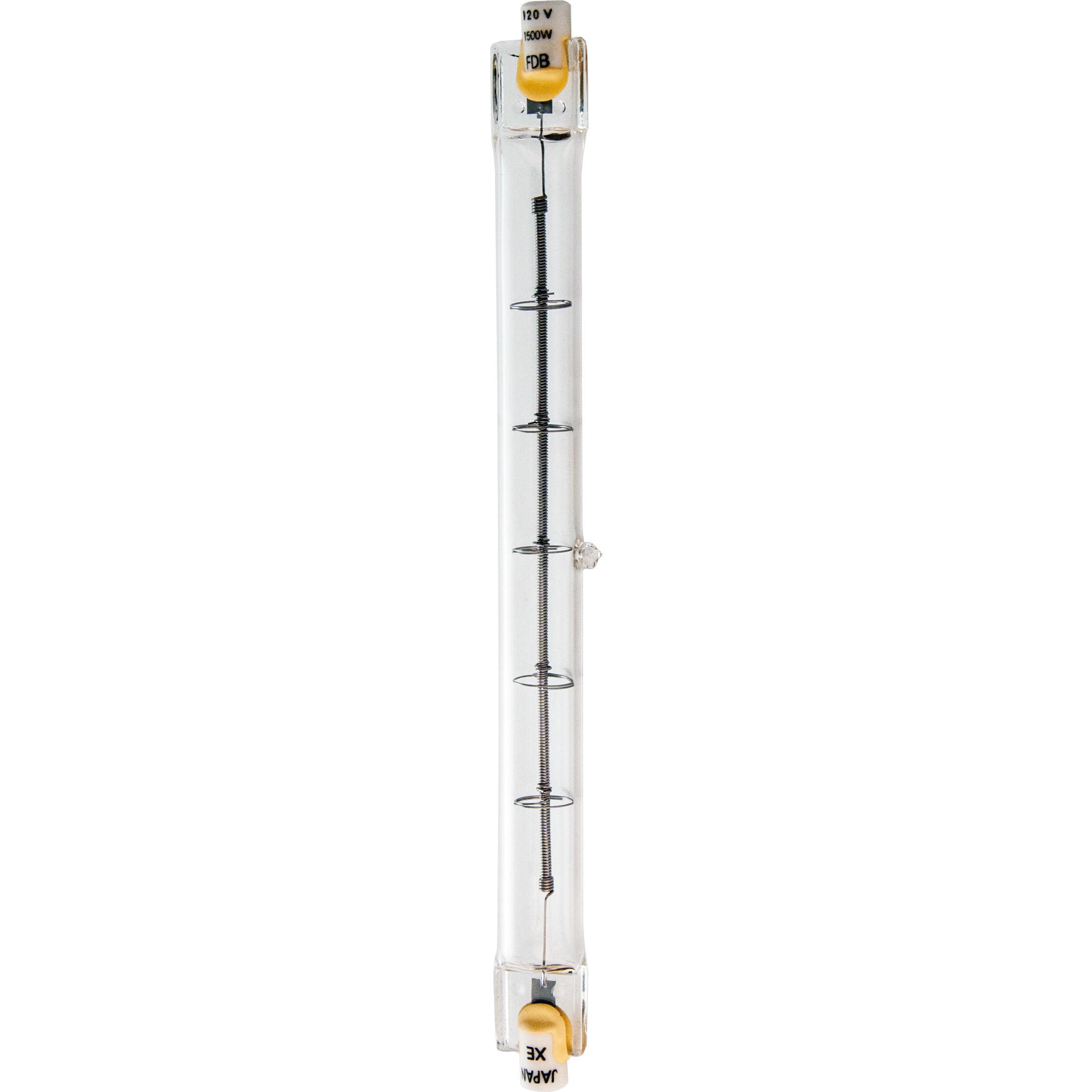

FDB Photograph

FDB

Electrical Specifications

Amps12.5
Volts120
Watts1500

Photometrics

Candlepower3200
Color Temperature3200
Lumens41200

Physical Characteristics

BaseR7s
Bulb ShapeT12
FilamentC-8
FinishClear
Max Overall Length (MOL)6 9/16

Operating Characteristics

Burn PositionH ± 4°
Life Hours400

General Information
Lamp CodeFDB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-141
Colortran178-029
General Electric23841FDB-Q1500T4/CL
Osram Sylvania54435FDB
Sunlite70211FDB
Ushio1000499FDB, JP120V-1500WC
Microlites120-1500-75B
Canimpex120-1500-75B

Equipment Used In

BrandModelType
ACTI Products Super V Camera
Altman Lighting SC-01
Altman Lighting Focusing Cyc FC-1
Altman Lighting Sky Cyc Stage / Studio
Strand Lighting Coda Floodlight Stage / Studio
Strand Lighting Mini Cyc Stage / Studio
