FDF ANSI Code

FDF ANSI is a T4 lamp with a R7s-12 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FDF lamps.

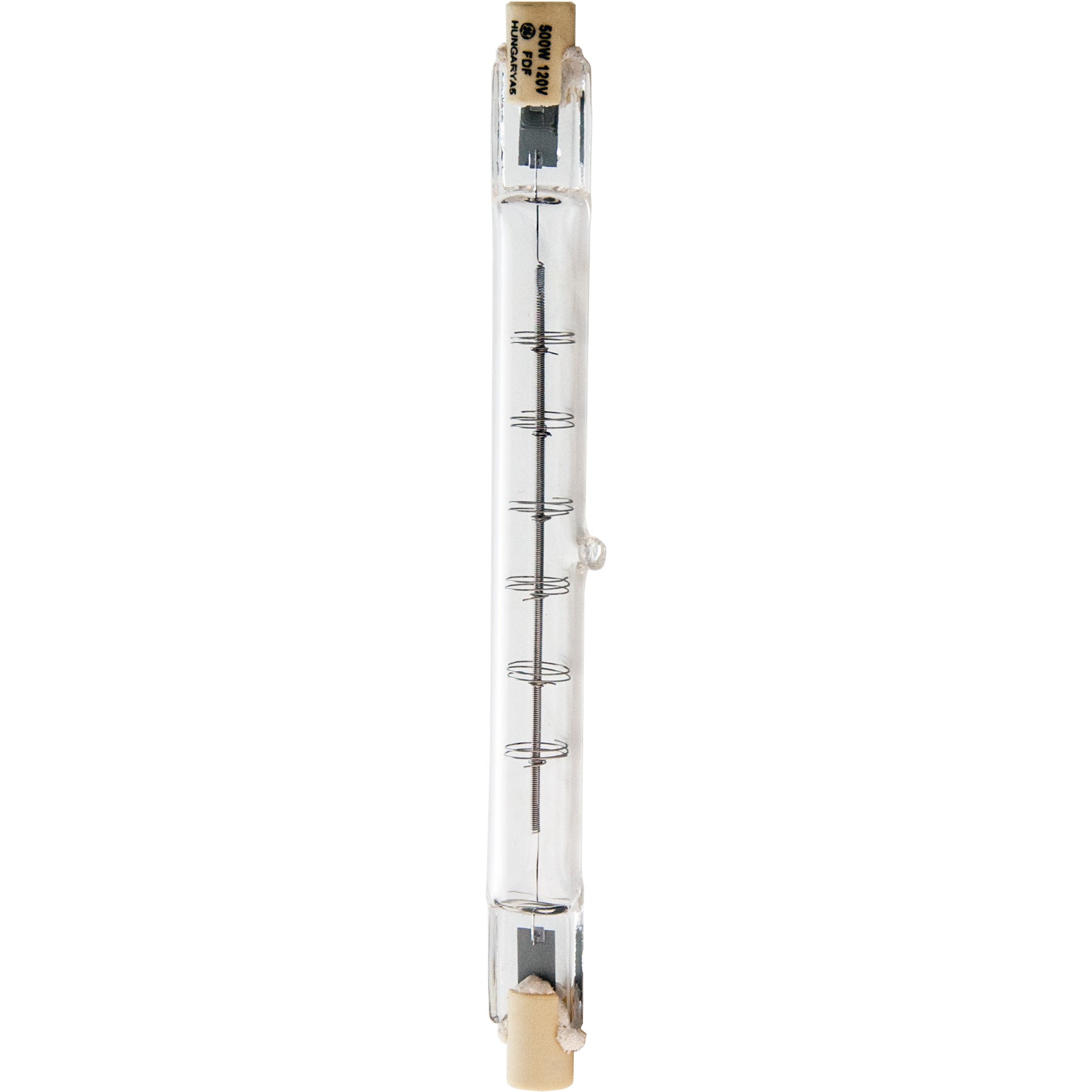

FDF Photograph

FDF

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower1100
Color Temperature3200
Light Center Length (LCL)117.6
Lumens13250

Physical Characteristics

BaseR7s-12
Bulb ShapeT4
FilamentC-8
FinishClear
Max Overall Length (MOL)4 11/16

Operating Characteristics

Burn PositionH ± 4°
Life Hours400

General Information
Lamp CodeFDF
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsP2/30

Substitution Notes
For Frosted Glass Use FDN

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s-12 Base

R7s-12

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
American DJ (ADJ Products)ZB-FDF
Atlas/ThornP2/30
Colortran176-023
ColortranB55-32
General Electric23735FDF-Q500T3/4CL
Imported Lamp Code1504
LowelFDF
Philips13868R
Sunlite70214FDF
Ushio1000500FDF, JP120V-500WC6
Eiko03190FDF

Equipment Used In

BrandModelType
American DJ (ADJ Products) Scotty
American DJ (ADJ Products) ET
American DJ (ADJ Products) FAN 800
American DJ (ADJ Products) Fanstar Stage / Studio
Itek 615-E Graphic Arts
Itek 560 Graphic Arts
Itek 111800 Graphic Arts
Itek 613 Graphic Arts
Itek 1218 Graphic Arts
Itek 185 Graphic Arts
Itek 1518 Graphic Arts
Itek 400 Graphic Arts
Itek 275 Graphic Arts
Itek 1117 Graphic Arts
Itek 175 Graphic Arts
Kenro 240
Kenro 241
Kenro 187
Lowel Softlight 2 Stage / Studio
Strand Lighting Orion Groundrow
