FDT ANSI Code
FDT ANSI is a T11.5 lamp with a GY9.5 base operating at 100 watts and 12 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FDT lamps.

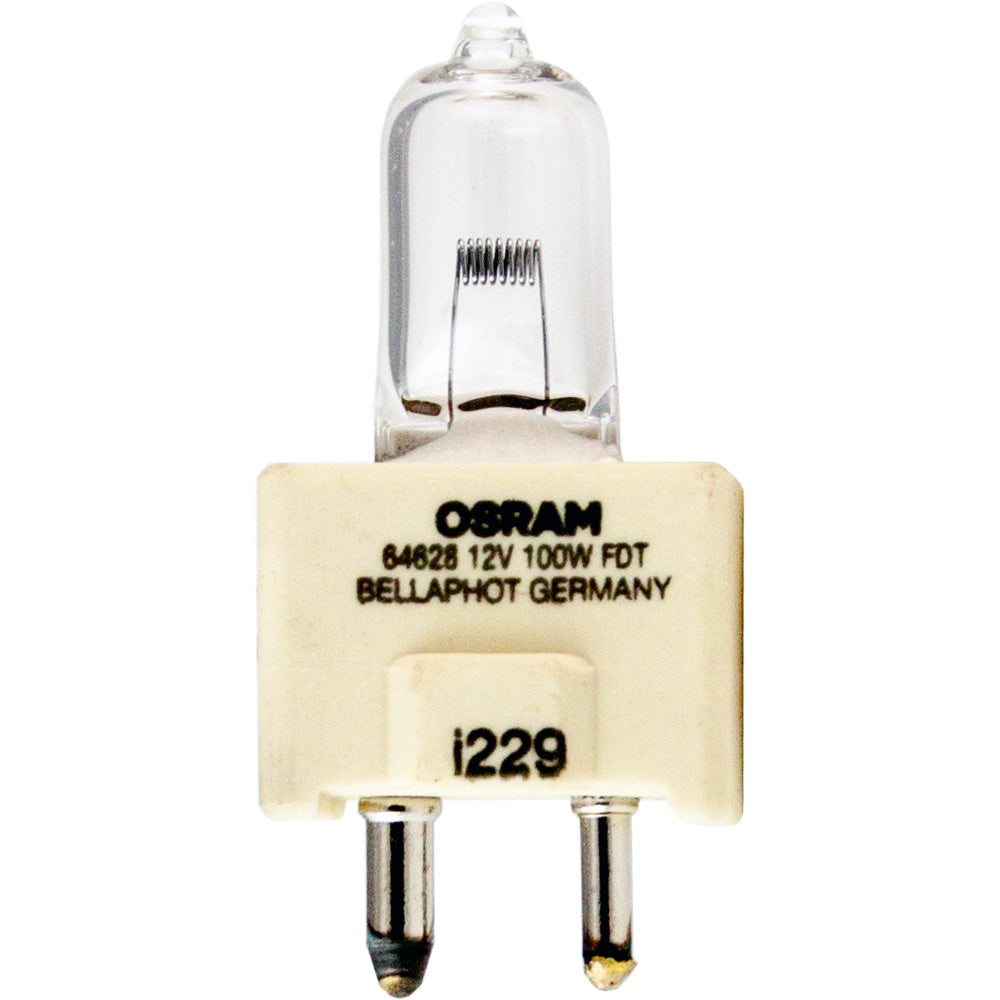

FDT Photograph |
 |
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 12 |
| Watts | 100 |
Photometrics | |
| Candlepower | 230 |
|---|---|
| Color Temperature | 3300 |
| Light Center Length (LCL) | 1 1/16 |
| Lumens | 2900 |
Physical Characteristics | |
| Base | GY9.5 |
|---|---|
| Bulb Shape | T11.5 |
| Filament | FC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 1/4 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | FDT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| NATO Stock Number | 6240-00-393-1161 |
| Equivalents | A1/261 |
FC-6 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|
GY9.5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlas/Thorn | A1/261 | ||
| Bausch & Lomb | 31-31-58 | ||
| Bulbrite | 761165 | FDT | |
| EFOS | 4081 | ||
| Eiko | 03220 | FDT | |
| EYE (Iwasaki) | FDT12V100W | FDT | |
| General Electric | 35321 | FDT | |
| Grainger | 1C642 | ||
| Imported Lamp Code | 14216 | ||
| Osram Sylvania | 54031 | FDT 64628 | |
| Osram Sylvania | 54276 | FDT 64628 | Available |
| Osram Sylvania | 54709 | FDT | |
| Philips | 5973 | ||
| Sunlite | 70215 | FDT | |
| Technicon | 195-B637-001 | ||
| Ushio | 1000504 | FDT, JC12V-100W | Available |
| Kahoku Lighting Solutions (KLS) | 62009-KLS | FDT Japan | |
| Green Energy Lighting (GELCO) | 62009-GEL | FDT | |
| Rexim, LLC | RSE-51 | ||
| Microlites | 12-100-29 | ||
| Canimpex | 12-100-29 | ||
| Orbitec | 130246 | H 61491 | |
Equipment Used In | ||
| Brand | Model | Type |
| Bausch & Lomb | 100W T.H. | |
| Bausch & Lomb | 31-31-58 | |
| Bausch & Lomb | Lamp Balpan 31-32-57 | |
| EFOS | 4081 | Dental Lamp |
| Faopsa | FM142Y | |
| Imtec | 2001 Universal | |
| Imtec | 006 (R/P) | |
| Imtec | 014 (R/P) | |
| Imtec | 012 (R/P) | |
| Imtec | 023 | |
| Imtec | 004 | |
| Imtec | 012 | |
| Imtec | 014 | |
| Imtec | 012 Special (R/P) | |
| Imtec | 006 | |
| Information Design | Rom 3 Com Terminal | |
| Kardex | RPM/K (R/P) | |
| Kardex | RPC (R/P) | |
| Kardex | RPF (R/P) | |
| Karto | MRP 1 (R/P) | |
| NCR Corp. | 200 | |
| NCR Corp. | 400 | |
| NCR Corp. | 310 | |
| NCR Corp. | 500 | Microfilm Reader |
| NCR Corp. | 459-200 | |
| NCR Corp. | 300 | Microfilm Reader |
| NCR Corp. | 456-300 | |
| NCR Corp. | 800 | |
| NCR Corp. | Q310 | Microfilm |
| NCR Corp. | 242 | Microfilm Reader |
| NCR Corp. | 456-3 | |
| NCR Corp. | 4600-10 | |
| NCR Corp. | 456-500 | |
| NCR Corp. | 456-4 | |
| NCR Corp. | 900 | |
| NCR Corp. | 308 | |
| NCR Corp. | 456-800 | |
| NCR Corp. | 307 | |
| NCR Corp. | 456-200 | |
| NCR Corp. | Q307 | Microfilm |
| NCR Corp. | 4600-11 | |
| NCR Corp. | Q308 | Microfilm |
| NCR Corp. | C455-5 PCMI | |
| NCR Corp. | 305 | Microfilm Reader |
| NCR Corp. | Q305 | |
| NCR Corp. | 456-242 | |
| NCR Corp. | 459-300 | |
| Photogay | Mikron 105 | |
| Quantor | 305 | |
| Quantor | 307 | |
| Quantor | 310 | |
| Quantor | 105 | |
| Quantor | 308 | |
| Technicon | H6000 | |
| Visidyne | Show-Kit | |
| Weber | Skylight SK100 | |
