FDX ANSI Code

FDX ANSI is a T3.25 lamp with a GY6.35cs base operating at 100 watts and 12 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FDX lamps.

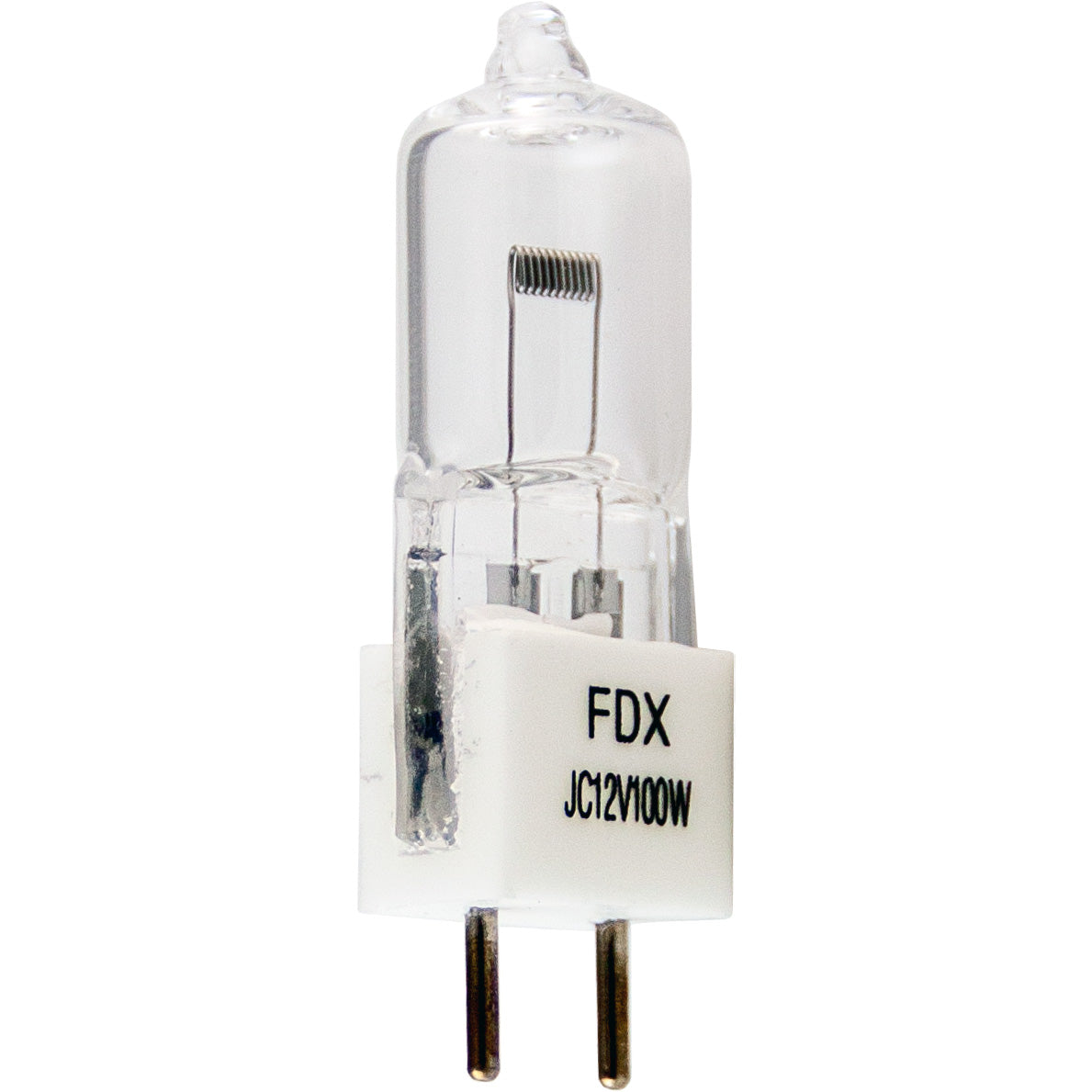

FDX Photograph

FDX

Electrical Specifications

Amps8.33
Volts12
Watts100

Photometrics

Candlepower230
Color Temperature3300
Light Center Length (LCL)1 2/11
Lumens2900

Physical Characteristics

BaseGY6.35cs
Bulb ShapeT3.25
FilamentFC-6
FinishClear
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeFDX
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsA1/209

T3.25 Shape

T3.25
Diameter Designation3.25/8"
Glass Diameter 13/32" (0.40625")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Green Energy Lighting (GELCO)21414-GELFDX
Microlites12-100-26X
Canimpex12-100-26X

Equipment Used In

BrandModelType
AO Reichert 2052
Leica 2052 Medical

FDX may also be listed as:
031293104144 EIKO048777133040 UPC1000507 BLV1000507 USHIO
10414 EIKO10414 UPC10414 WIKO12195 STANDARDPRO
1497-BLV BLV2052 AMERICAN-OPTICAL2052 BULB-DIRECT2052 REICHERT
2052/12VOLT/100WATT AMERICAN-OPTICAL/REICHERT2052/FDX AMERICAN-OPTICAL-REICHERT2052/FDX/12V/100W AMERICAN-OPTICAL-REICHERT3129310414 WIKO
6954912195969549121959UPC STANDARDPRO83391 IWASAKI90/FDX
A1-209 ATLASA1-209 LIFA1-209 THORNA1-209-12 ATLAS
A1-209-12 LIFA1-209-12 THORNA1-209-12V ATLASA1-209-12V LIF
A1-209-12V THORNA1-209-12V-100W GENERAL-ELECTRICA1-209-12V-100W LIFA1-209-12V-100W-GY6.35 GENERAL-ELECTRIC
A1-209-12V-100W-GY6.35 LIFA1-209-12VOLT ATLASA1-209-12VOLT LIFA1-209-12VOLT THORN
A1-209-FDX-12VOLT ATLASA1-209-FDX-12VOLT LIFA1-209-FDX-12VOLT THORNA1-209/12V/100W ATLAS
A1-209/12V/100W THORNA1-209FDX ATLASA1-209FDX LIFA1-209FDX THORN
A1-209FDX12 ATLASA1-209FDX12 LIFA1-209FDX12 THORNA1-209FDX12V ATLAS
A1-209FDX12V LIFA1-209FDX12V THORNA1/209-12V-100W-GY6.35-T11-C6-CLEAR-3000L-3300K-50H-VBD-45MMMOL-24MMLCL-Q-CERAMIC-BASEA1209-12V-100W
A1209-12V-100W/GE-A1/209-FDX-12V-100W-GY6.35CER-BASE-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTDA120912V100WGE AC-ENTERTAINMENT-TECHNOLOGIES-LTDBW-FDXEQ-A1/209 ELECTROQUIP
FDX ANSIFDX ASAFDX BULB-DIRECTFDX EIKO
FDX INTERLIGHTFDX IWASAKIFDX KONDOFDX LAMPTECH
FDX MICROLAMPFDX STANDARDPROFDX SYLVANIAFDX USHIO
FDX WIKOFDX-100W-12V-GY6.35 USHIOFDX-12 ANSIFDX-12 ASA
FDX-12 THORNFDX-12V ANSIFDX-12V ASAFDX-12V THORN
FDX-12V-100WFDX-12V-100W ANSIFDX-12V-100W ASAFDX-12V-100W-GY6.35 ANSI
FDX-12V-100W-GY6.35 USHIOFDX-12V-100W-GY6.35-T3-FC6-CLEAR-2900L-3300K-50H-BDTH-1-3/4MOL-1-2/11LCL-Q-SLIDE-PROJECTOR-CERAMIC-BASEFDX-12V/12V/100W/GY6.35CS ANSIFDX-12V100W IWASAKI
FDX-12VOLT ANSIFDX-12VOLT ASAFDX-12VOLT THORNFDX-GY6.35 ANSI
FDX-JC12V100WCG2-T11.5MM-44MMMOL-30MMLCL-CBAR6-3500L-3300K-50H-ANY-CLEAR-1000507 BLVFDX-JC12V100WCG2-T11.5MM-44MMMOL-30MMLCL-CBAR6-3500L-3300K-50H-ANY-CLEAR-1000507 USHIOFDX/12V/100W/GY6.35CS ANSIFDX/GY6.35 USHIO
FDX/T31-2-12V-100W-GY6.35 LAMPTECHFDX12V100W-FDX IWASAKIGE-A1/209-FDX-12V-100W-GY6.35CER-BASE-PROJECTOR-LAMP AC-ENTERTAINMENT-TECHNOLOGIES-LTDGY6.35-12V-100W-FDX-JC12V-100WCG2-T11.5MM-44MMMOL-30MMLCL-CBAR6-3500L-3300K-50H-ANY-CLEAR-1000507 BLV
GY6.35-12V-100W-FDX-JC12V-100WCG2-T11.5MM-44MMMOL-30MMLCL-CBAR6-3500L-3300K-50H-ANY-CLEAR-1000507 USHIOGY6.35-12V-100W-PROJECTION ELECTROQUIPH/12V/100W/GY6.35CS/CAPSULE/FC6/50HH/12V/100W/GY6.35CS/T3.25/FC6/50H
H/12V/100W/GY6.35CS/T3.25/FC6/50H/FDXH/12V/100W/GY6.35CS/T4/50HH/12V/100W/GY6.35CS/T4/FC6/50HJC-12V-100-C-2 USHIO
JC-12V-100-FG-2JC-12V-100W-FG-2JC-12VOLT-100WATT-C-2 USHIOJC-12VOLT-100WATT-FG-2
JC12-100C2 USHIOJC12-100FG2JC12-100WC2 USHIOJC12-100WFG2
JC12V-100WC2JC12V-100WC2 USHIOJC12V-100WCG2 USHIOJC12V-100WCG2/FDX USHIO
JC12V-100WCG2/GY6.35 USHIOJC12V-100WCG2/GY6.35CS/FC6/50H USHIOJC12V100WCG2-CBAR6-50HR USHIOJC12V100WCG2-CBAR6-50HR/12V/100W/GY6.35 USHIO
JC12V100WCG2-CBAR6-50HR/12V/100W/GY6.35/FDX USHIOJC12V100WCG2-CBAR6-50HR/FDX USHIOMICROSCOPE/2052 AMERICAN-OPTICAL/REICHERTPROJECTION/12V/100W/GY6.35/50H/11X45MM ELECTROQUIP
SPQ100T3.25GY6.35CSFC6-12VSPQ100T3.25GY6.35CSFC612V-FDXT-4/100W/12V/CER/GY6.35/FDX STANDARDPRO
