FEL ANSI Code

FEL ANSI is a T6 lamp with a G9.5 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FEL lamps.

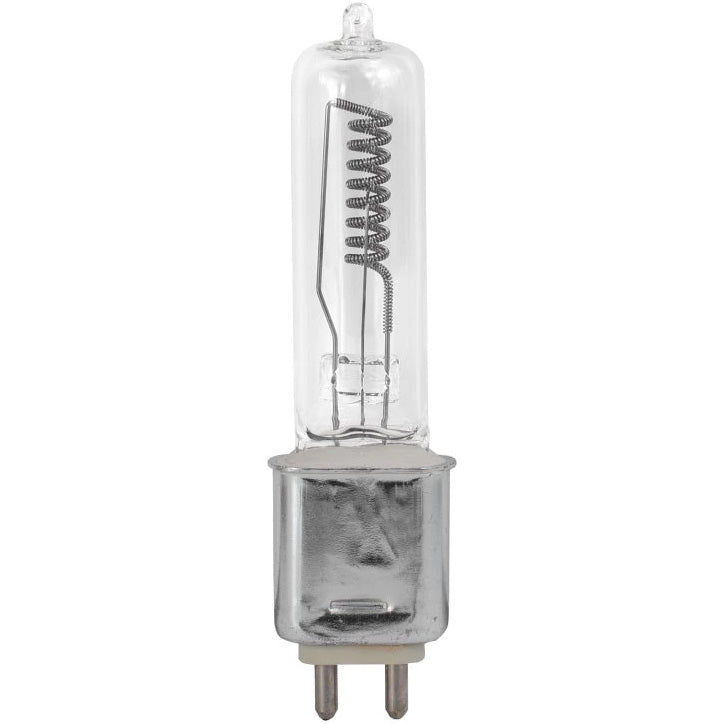

FEL Photograph

FEL

Electrical Specifications

Amps8
Volts120
Watts1000

Photometrics

Candlepower2100
Color Temperature3200
Light Center Length (LCL)60.5mm
Lumens27500

Physical Characteristics

BaseG9.5
Bulb ShapeT6
FilamentCC-8
FinishClear
Max Overall Length (MOL)101mm

Operating Characteristics

Burn PositionAny
Life Hours300

General Information
Lamp CodeFEL
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsCP/77-120

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
American DJ (ADJ Products)ZB-FEL
Atlas/ThornCP/77
Bulbrite762305FEL
Colortran176-033
Colortran176-037
ColortranBS10-31/1
ColortranBS10-32/1
ColortranBS10-32/2
General Electric35607FEL-Q1000/4CL
General Electric39769FEL-Q1000/4CL
Grainger4V251
LowelFEL
Osram Sylvania54570FEL Q1000/4CL QTZ 64743
Philips269795FEL 1000Q/4CL 120V 10PK
Sunlite70220FEL
Ushio1000509FEL, JCV120V-1000WCH
Green Energy Lighting (GELCO)63254-WBFEL
General Electric88625FEL Q1000/4CL 120V
Rexim, LLCRSE-76
Microlites120-1000-28L
Canimpex120-1000-28L

Equipment Used In

BrandModelType
Altman Lighting 1KL8-1424Z
Altman Lighting 1KL6-40
Altman Lighting 1KL8 Stage / Studio
Altman Lighting 1KL8-10
Altman Lighting 1000Q Spotlight
Altman Lighting 1KL Stage / Studio
Altman Lighting 1KL6-50
Altman Lighting 1KL6-20
Altman Lighting 1KL6-12
Altman Lighting 1KL6-30
Altman Lighting 1KL6 Stage / Studio
Altman Lighting 1KL10-5
Altman Lighting 1KL6-2040Z
Altman Lighting 1KL8-5 Stage / Studio
American DJ (ADJ Products) Krypto
Colortran 650 Stage / Studio
Colortran 5/50 Stage / Studio
Colortran 213 Stage / Studio
Hoppman Corp. CPS-48 Lamphouse Overhead Projector
Kliegl Brothers Silhouette Stage / Studio
Kliegl Brothers 1554 Stage / Studio
Kliegl Brothers 1552 Stage / Studio
Kliegl Brothers Aimslite Stage / Studio
Kliegl Brothers 1555 Stage / Studio
Kliegl Brothers 1553 Stage / Studio
Kliegl Brothers 1550/8 Stage / Studio
Kliegl Brothers 1551 Stage / Studio
L&E AQ-61-22 Stage / Studio
Little Stage Lighting E-509
Little Stage Lighting E-21
Lowel Rifa-Lite LC-88 Stage / Studio
Lowel DP Stage / Studio
Lycian Stage Lighting 1206 MIDGET Stage / Studio
Oriel 6315
Screen USA (DS America) Camera 1000W-120V Graphic Arts
Screen USA (DS America) Camera
Strand Lighting Century 2209 Stage / Studio
Strand Lighting Century 2114 Stage / Studio
Strand Lighting Century 2343 Stage / Studio
Strand Lighting Century 2217 Stage / Studio
Strand Lighting Century 2216 Stage / Studio
Strand Lighting Lekolite Stage / Studio
Strand Lighting Lekolite 8 Stage / Studio
Strand Lighting Lekolite 10 Stage / Studio
Strand Lighting Century 2124 Stage / Studio
Strand Lighting Century 2113 Stage / Studio
Strand Lighting Century 2123 Stage / Studio
Strand Lighting Cantata Stage / Studio
Strand Lighting Century 2112 Stage / Studio
Strand Lighting Lekolite 6 Stage / Studio
Strand Lighting Lekolight 1000W Ellipsoidal Stage / Studio
Strand Lighting Century 2204 Stage / Studio
Strand Lighting Century 2111 Stage / Studio
Strand Lighting Century 2344 Stage / Studio
Strong International Trouperette III Stage / Studio
Strong International Trouperette IV Stage / Studio
Times Square Lighting Q8EPC
Times Square Lighting Q6V Stage / Studio
Times Square Lighting Q6Z Stage / Studio
Times Square Lighting Q6E6X Stage / Studio
Times Square Lighting Q6X Stage / Studio
