FER ANSI Code

FER ANSI is a T6 lamp with a RX7s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FER lamps.

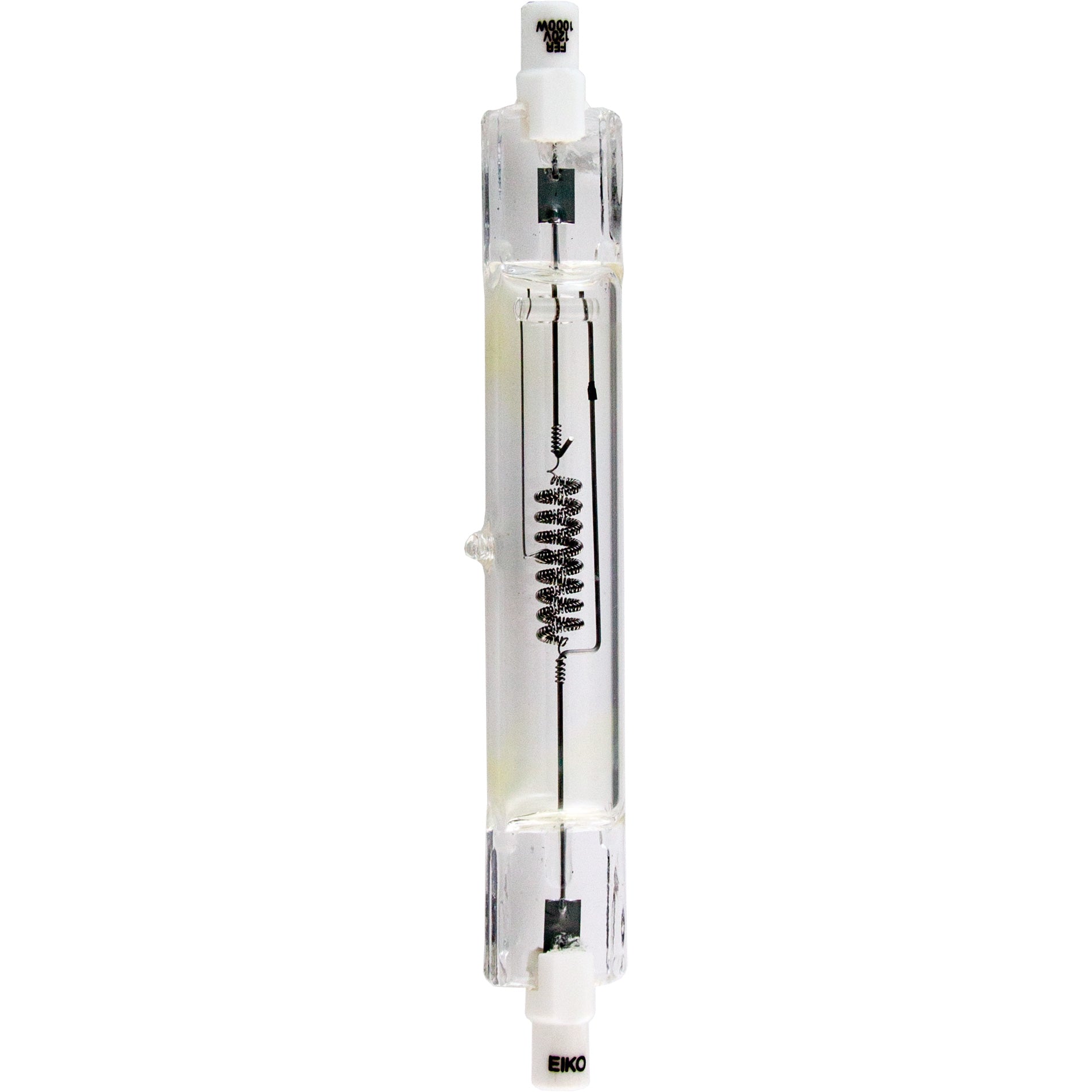

FER Photograph

FER

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3200
Lumens27500

Physical Characteristics

BaseRX7s
Bulb ShapeT6
FilamentCC-8
FinishClear
Max Overall Length (MOL)5 5/8

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeFER
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

RX7s Base

RX7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762310FER
Colortran176-039
Colortran176-040
Colortran176-041
Colortran176-042
ColortranB10-31/6
ColortranB10-31/6F
ColortranB10-32//6
ColortranB10-32/6F
ColortranB10-34/6
ColortranB10-34/6F
EYE (Iwasaki)JPD1000WCFER
General Electric33760FER-Q1000T6/4CL
Osram Sylvania54571FER
Philips312405FER/EHS1000T6Q/4CL 120V 10P
Ushio1000511FER, JPD120V-1000WC6
Grainger6VP22
Microlites120-1000-75S
Canimpex120-1000-75S

Equipment Used In

BrandModelType
ARRI Arrilite 2000 Stage / Studio
Strand Lighting Ianebeam Blonde Stage / Studio
