FFJ ANSI Code

FFJ ANSI is a T4 lamp with a R7s base operating at 600 watts and 120 volts. It has a color temperature of 3250 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FFJ lamps.

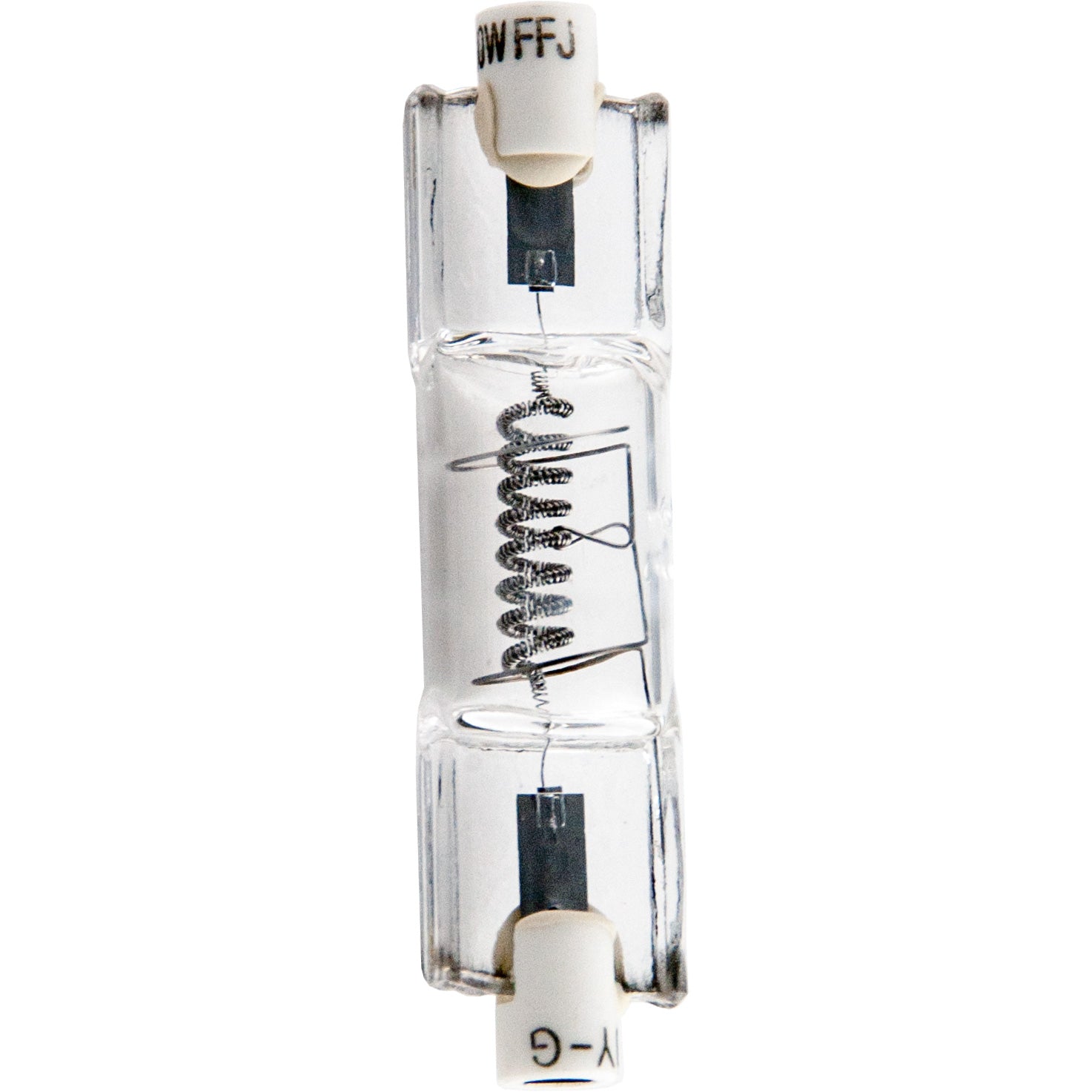

FFJ Photograph

FFJ

Electrical Specifications

Amps5
Volts120
Watts600

Photometrics

Candlepower1300
Color Temperature3250
Light Center Length (LCL)63.6
Lumens17000

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)2 5/8

Operating Characteristics

Burn PositionAny
Life Hours75

General Information
Lamp CodeFFJ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 220V Use FEB

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-600-75
Canimpex120-600-75

Equipment Used In

BrandModelType
AO Reichert Apollo 6 3651
AO Reichert Apollo 6 3650
AO Reichert Apollo 6 3672
AO Reichert Apollo 3669
AO Reichert Apollo 3650
AO Reichert Apollo 6 3653
AO Reichert Apollo 3651
AO Reichert Apollo 3654
AO Reichert Apollo 3672
AO Reichert Apollo 6 3669
AO Reichert Apollo 3653
AO Reichert Apollo 6 3654
Eastman Kodak Printer 2S3K
Eastman Kodak VCB Lamphouse
Eastman Kodak Printer 2600
Eastman Kodak Printer 2S3
Eastman Kodak Printer 2S5
Kalart Victor Apollo 6
Kalart Victor Apollo Compak
Kalart Victor Apollo 4 3675
Kalart Victor Apollo 4 3672
Kalart Victor Apollo 2 3672
Kalart Victor Apollo 2
Kalart Victor 639632
Kalart Victor IV-3651
Kalart Victor Apollo 6 3653
Kalart Victor Apollo 6 3669
Kalart Victor Apollo 4 3669
Kalart Victor 3669
Kalart Victor Apollo 6 3651
Kalart Victor 3675
Kalart Victor Apollo 6 3654
Kalart Victor 3672
Kalart Victor Apollo 4 3651
Kalart Victor Apollo 6 3650
Neumade 3672
Neumade 2672

FFJ may also be listed as:
031293032904 EIKO031293033000 EIKO03290 EIKO03290 UPC
03290 WIKO03300 WIKO04613554488 SYLVANIA048777133675 UPC
1000517 BLV1000517 USHIO120V/600W/R7S/FFJ12260-R PHILIPS
12260-R-120 VOLT PHILIPS130493 NARVA130493 ORBITEC130493-H40834-R7S-12X67-120V-FFJ-600W ORBITEC
130493/120V/600W ORBITEC130493/120V/600W/R7S ORBITEC23979-8 PHILIPS239798/FFJ PHILIPS
29592 GENERAL-ELECTRIC29592 STANDARDPRO29592-SKU GENERAL-ELECTRIC29592/120V/600W GENERAL-ELECTRIC
29592/120V/600W-DOUBLE-END-BULB GENERAL-ELECTRIC29592/600W/120V GENERAL-ELECTRIC29592/600W/120V-DOUBLE-END-BULB GENERAL-ELECTRIC3129303290 WIKO
408344316829592543168295925UPC STANDARDPRO54488 GILWAY
54488 OSRAM54488 SYLVANIA54488/FFJ SYLVANIA600-120-FFJ-17000-CC-8-3250-85-R7S-24-29592 GENERAL-ELECTRIC
600W-120V-FFJ-17000-CC-8-3250-85-R7S-24-29592 GENERAL-ELECTRIC600WATT-TR-120 VOLT SYLVANIA83932 IWASAKI944217
BW-FFJEQ-FFJ ELECTROQUIPEQ-FFJ/R7S-120V-600W ELECTROQUIPFFJ ANSI
FFJ APOLLOFFJ ASAFFJ BULB-DIRECTFFJ EIKO
FFJ GENERAL-ELECTRICFFJ GILWAYFFJ HIKARIFFJ INTERLIGHT
FFJ IWASAKIFFJ KONDOFFJ LAMPTECHFFJ LITE-SOURCE
FFJ MICROLAMPFFJ ORBITECFFJ OSRAMFFJ PHILIPS
FFJ STANDARDPROFFJ SYLVANIAFFJ USHIOFFJ WIKO
FFJ-120 VOLT ANSIFFJ-120 VOLT ASAFFJ-120V ANSIFFJ-120V ASA
FFJ-120V GENERAL-ELECTRICFFJ-120V-600WFFJ-120V-600W ANSIFFJ-120V-600W ASA
FFJ-120V-600W-R7S-18 USHIOFFJ-120V-600W-R7S-T4-CC8-CLEAR-17000L-3250K-75H-ANY-2-5/8MOL-0.6LCL-Q-OVERHEAD-PRINTER-MAY-SHATTERFFJ-120V/04613554488 SYLVANIAFFJ-120V/120V/600W/R7S/67MMMOL ANSI
FFJ-120V/54488 SYLVANIAFFJ-125 ANSIFFJ-125 ASAFFJ-125V ANSI
FFJ-125V ASAFFJ-125V-600W ANSIFFJ-125V-600W ASAFFJ-5 ANSI
FFJ-5 ASAFFJ-5 BULB-DIRECTFFJ-5 EIKOFFJ-5 INTERLIGHT
FFJ-5 WIKOFFJ-600W-120V-R7S-18 USHIOFFJ-99FFJ-DL
FFJ-ESFFJ-GE-29592-600W/120V-DOUBLE-END-BULB LITE-SOURCEFFJ-JPD120V600WCG-T15MM-66.7MMMOL-61.3MMCC-CC-8-17000L-3200K-75H-CLEAR-1000517 BLVFFJ-JPD120V600WCG-T15MM-66.7MMMOL-61.3MMCC-CC-8-17000L-3200K-75H-CLEAR-1000517 USHIO
FFJ-LFFJ-LLFFJ-XFFJ-XP
FFJ-XTRAFFJ/120V/600W OSRAMFFJ/120V/600W/R7S ANSIFFJ/120V/600W/R7S/67MMMOL ANSI
FFJ/29592-600W/120V-DOUBLE-END-BULB GENERAL-ELECTRICFFJ/T4-120V-600W-R7S LAMPTECHFFJ120VFFJ120V/600W-R7S HIKARI
FFJ120V/600WR7SGTL-OS-54488H-40834 ORBITECH/120V/600W/R7S/66.7MMMOL/75H
H/120V/600W/R7S/66MMMOL/75HH/120V/600W/R7S/67MMH/120V/600W/R7S/67MM/75HH/120V/600W/R7S/67MMMOL/75H
H/120V/600W/R7S/T4/CC8/75H/FFJ-120VH40834-R7S-12X67-120V-FFJ-600W ORBITECH40834/120V/600W ORBITECH40834/120V/600W/R7S ORBITEC
J/120V/600W/130493 NARVAJ/120V/600W/R7S/3200K/130493 NARVAJPD-120 VOLT-600WATT-B-FFJJPD-120 VOLT-600WATT-C
JPD-120 VOLT-600WATT-C-67MM APOLLOJPD-120 VOLT-600WATT-C-FFJ APOLLOJPD-120 VOLT-600WATT-CLEARJPD-120 VOLT-600WATT-FG USHIO
JPD-120 VOLT-B-600WATT-C APOLLOJPD-600WATT-C-FFJJPD/120V/600W/CGJPD120V-600WCG USHIO
JPD120V-600WCG/FFJ USHIOJPD120V-600WCG/R7S/67MM USHIOJPD120V-600WCG/R7S/75H USHIOJPD120V600WCG-CC8-75HR USHIO
JPD120V600WCG-CC8-75HR/120V/600W/R7S-18 USHIOJPD120V600WCG-CC8-75HR/120V/600W/R7S-18/FFJ USHIOJPD120V600WCG-CC8-75HR/FFJ USHIOJPD600WC-FFJ IWASAKI
PROJECTION/120V/600W/R7S/75H ELECTROQUIPR7S-12X67-120V-600W-FFJ/H40834/130493 ORBITECR7S-12X67-120V-FFJ-600W ORBITECR7S-12X67MM-120V-600W-FFJ/H40834/130493 ORBITEC
R7S-18-120V-600W-FFJ-JPD120V-600WCG-T15MM-66.7MMMOL-61.3MMCC-CC-8-17000L-3200K-75H-CLEAR-1000517 BLVR7S-18-120V-600W-FFJ-JPD120V-600WCG-T15MM-66.7MMMOL-61.3MMCC-CC-8-17000L-3200K-75H-CLEAR-1000517 USHIOS-02517 HIKARISPOT-54488
SPQ600T4R7S120V-FFJ-120VSPQ600T4RSC120V-FFJ-120VT-4/600W/120V/R.S.C/R7S/FFJ STANDARDPROT-4/600W/120V/RSC/R7S/FFJ STANDARDPRO
W-0863
