FFM ANSI Code
FFM ANSI is a T4 lamp with a R7s base operating at 420 watts . It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FFM lamps.

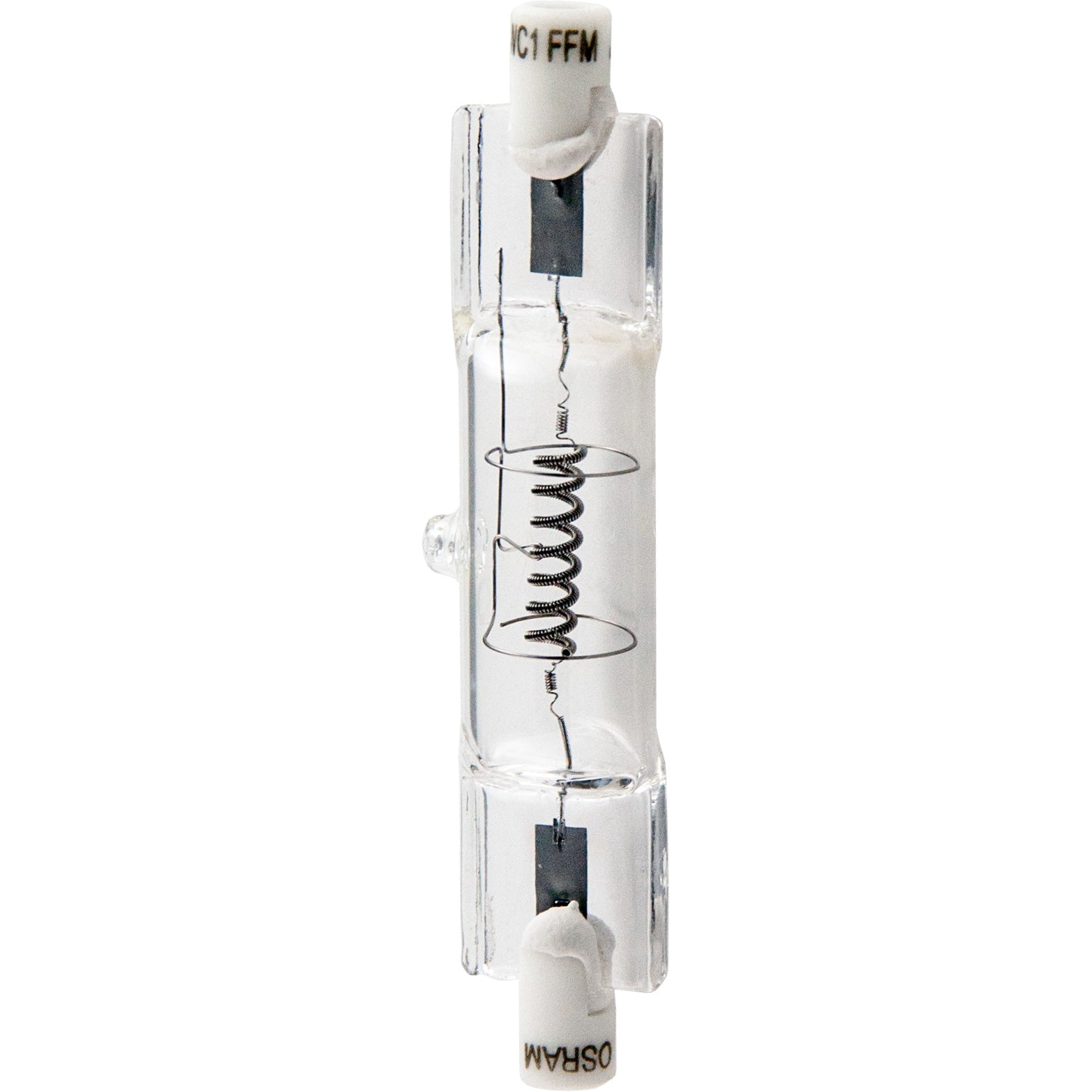

FFM Photograph |
 |
Electrical Specifications | |
| Watts | 420 |
|---|---|
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 78.3 |
| Lumens | 11000 |
Physical Characteristics | |
| Base | R7s |
|---|---|
| Bulb Shape | T4 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | FFM |
|---|---|
| Code Type | ANSI |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
R7s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | FFM | ||
Equipment Used In | ||
| Brand | Model | Type |
| Nuarc | VV1418-2 | Graphic Arts |
| Nuarc | VIC1418 | Graphic Arts |
| Nuarc | VV1418 | Graphic Arts |
| Nuarc | VV1418S | Graphic Arts |
| Nuarc | VV1418SSBL-2 | Graphic Arts |
| Nuarc | VIC1418-15 | Graphic Arts |
| Nuarc | VVE1418 | Graphic Arts |
| Nuarc | VV1418SS-2 | Graphic Arts |
| Nuarc | SST1418-1-4 | Graphic Arts |
| Nuarc | 1418SC2-4 | Graphic Arts |
| Nuarc | VV1418BL-2 | Graphic Arts |
| Nuarc | VV1418BL | Graphic Arts |
| Nuarc | VV1418SSBL | Graphic Arts |
