FFR ANSI Code

FFR ANSI is a PAR64 lamp with a GX16d base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Stippled finish. The average rated life is 800 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FFR lamps.

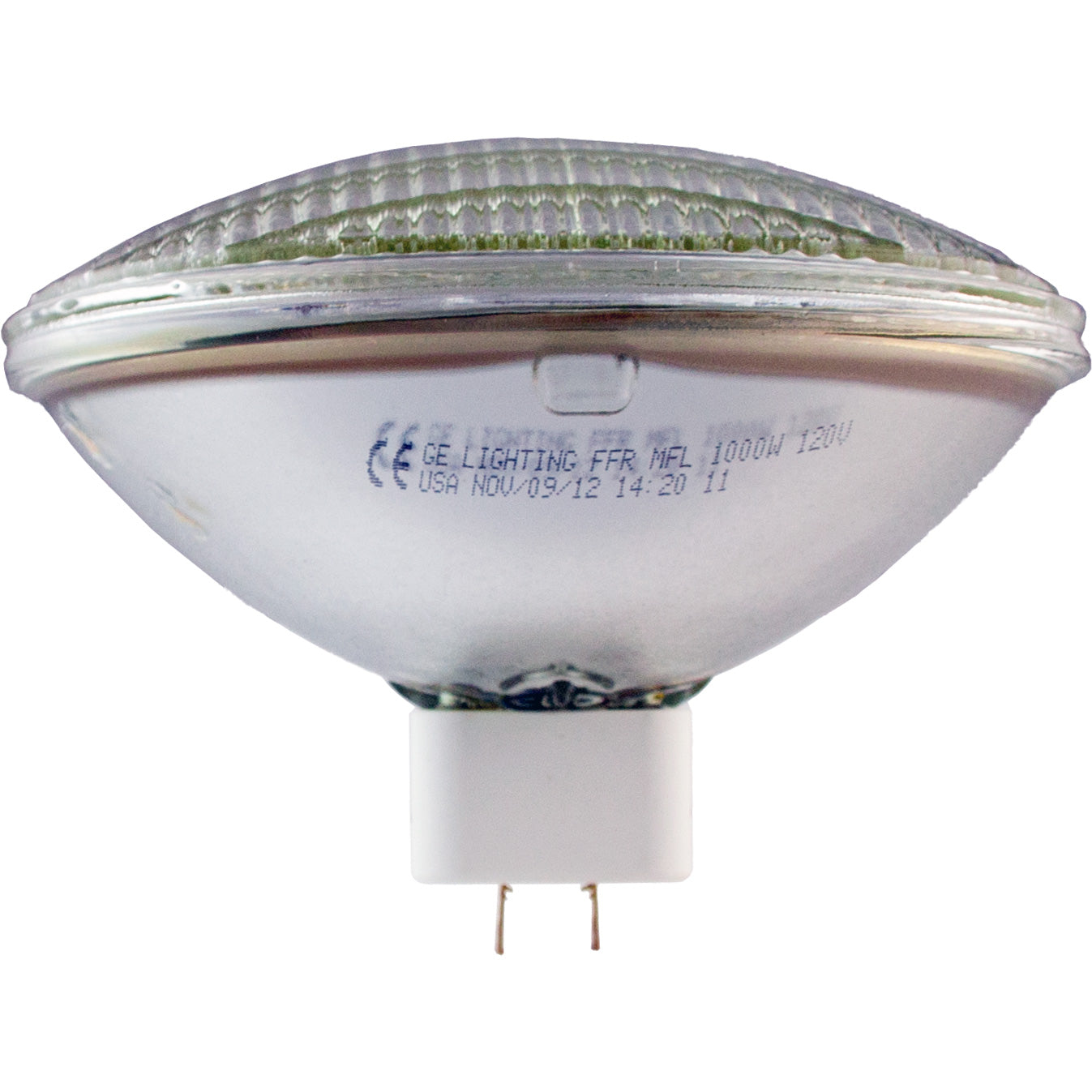

FFR Photograph

FFR

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Beam SpreadMedium Flood
Candlepower82000
Color Temperature3200
Light Center Length (LCL)4
Lumens125000

Physical Characteristics

BaseGX16d
Bulb ShapePAR64
FilamentCC-6
FinishStippled
Max Overall Length (MOL)6

Operating Characteristics

Burn PositionAny
Life Hours800

General Information
Lamp CodeFFR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

PAR64 Shape

PAR64
Diameter Designation64/8"
Glass Diameter 8" (8.0")
Shape CodePAR
Shape ClassificationParabolic Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX16d Base

GX16d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Grainger6VP28
Microlites120-1000-102
Canimpex120-1000-102
Biclite11768FFR
Orbitec131288RF 1738

Equipment Used In

BrandModelType
Altman Lighting Outdoor PAR-64 Stage / Studio
Altman Lighting Enclosed Aluminum PAR-64-EA Stage / Studio
Altman Lighting Borderlight PAR-64 Stage / Studio
Altman Lighting Enclosed Aluminum PAR-56-EA Stage / Studio
L&E PAR-64 Stage / Studio

Sources

  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "Lamp Specification & Application Guide 2004." Catalog. Philips Lighting Company, .
